OPT
Area light OPT-FL5050-RGB
Manufacturer part number: OPT-FL5050-RGB
Series: OPT-FL-Serie (direkte Hintergrundbeleuchtungen)
- Lighting type
- Backlight
- Emitting area
- 44 × 40 mm
- Light color
- RGB
- Drive / supply
- 24 V
- Connection
- JST SMR-02V-B
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-FL5050-RGB |
|---|---|
| Lichtfarbe | RGB |
| Voltage | 24 V | 24 V |
| Power | 1.9 W | 2.3 W |
| Leuchtfläche | 44 × 40 mm |
| Versorgungsspannung | 24 V |
| Dimensions (L x W x H) | 50 × 56 × 16 mm |
| Lighting type | Backlight |
| Light guidance / design | Direct-Lit |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Housing length | 50 mm |
| Housing width | 56 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

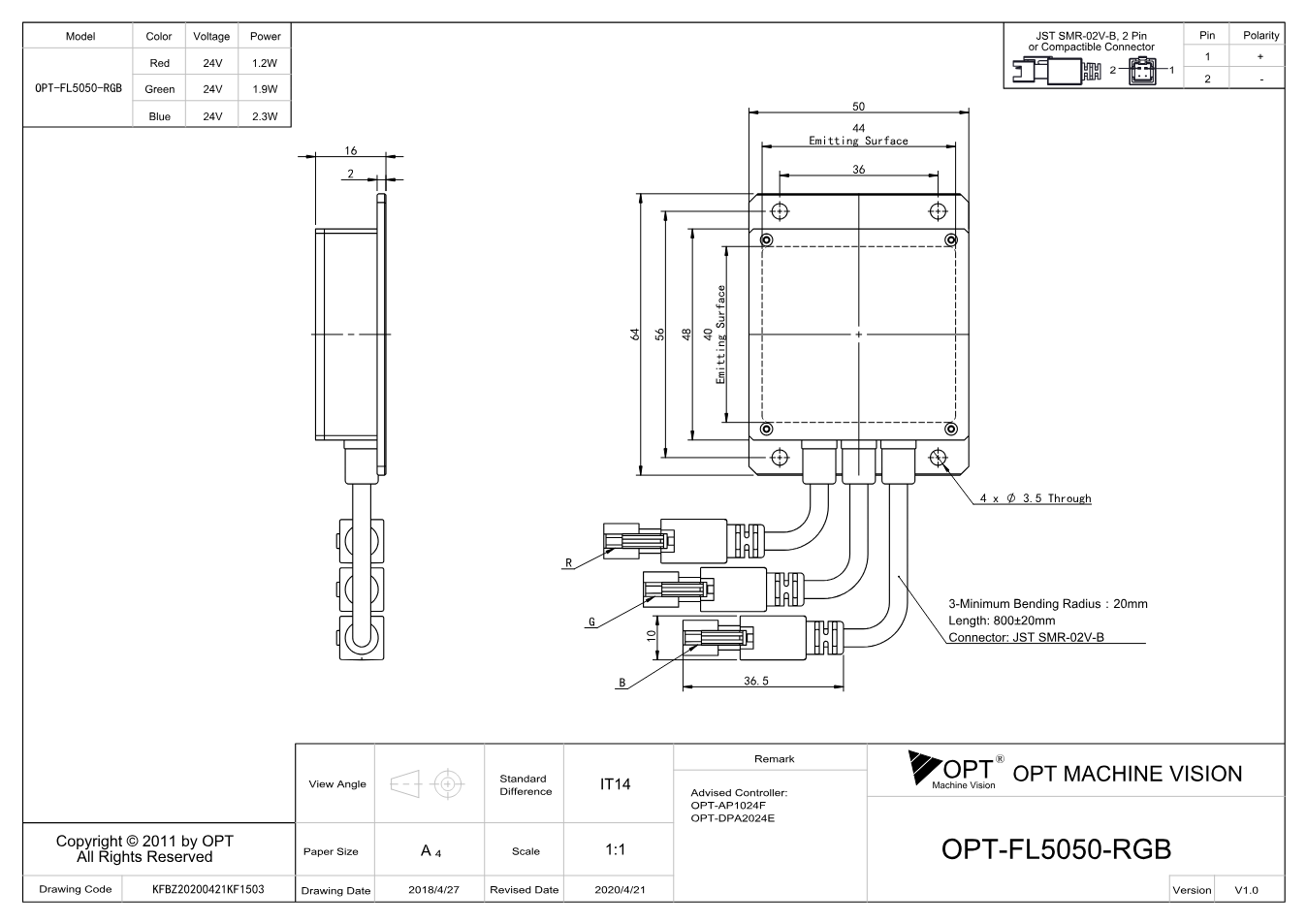

Dimensional drawing
Documents
- Download datasheet
OPT-FL-Serie (direkte Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 4866 KB
- Download
Maßzeichnung OPT-FL5050 (V1.0) (PDF)
Technical drawing · EN · 169 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-FL5050-RGB designates, within the OPT-FL series (direct backlights) the product type “Direct area backlight“. Key figures are light color green / blue, input voltage 24 V | 24 V, power consumption 1.9 W | 2.3 W.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
