Area light OPT-FL130130-RGB
Manufacturer part number: OPT-FL130130-RGB
Series: OPT-FL-Serie (direkte Hintergrundbeleuchtungen)
- Lighting type
- Backlight
- Emitting area
- 114 × 121 mm
- Light color
- RGB
- Drive / supply
- 24 V
- Connection
- JST SMR-02V-B
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-FL130130-RGB |
|---|---|
| Lichtfarbe | RGB |
| Voltage | 24 V | 24 V |
| Power | 12.0 W | 14.6 W |
| Leuchtfläche | 114 × 121 mm |
| Versorgungsspannung | 24 V |
| Dimensions (L x W x H) | 130 × 130 × 16 mm |
| Lighting type | Backlight |
| Light guidance / design | Direct-Lit |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 130 mm |
| Housing width | 130 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

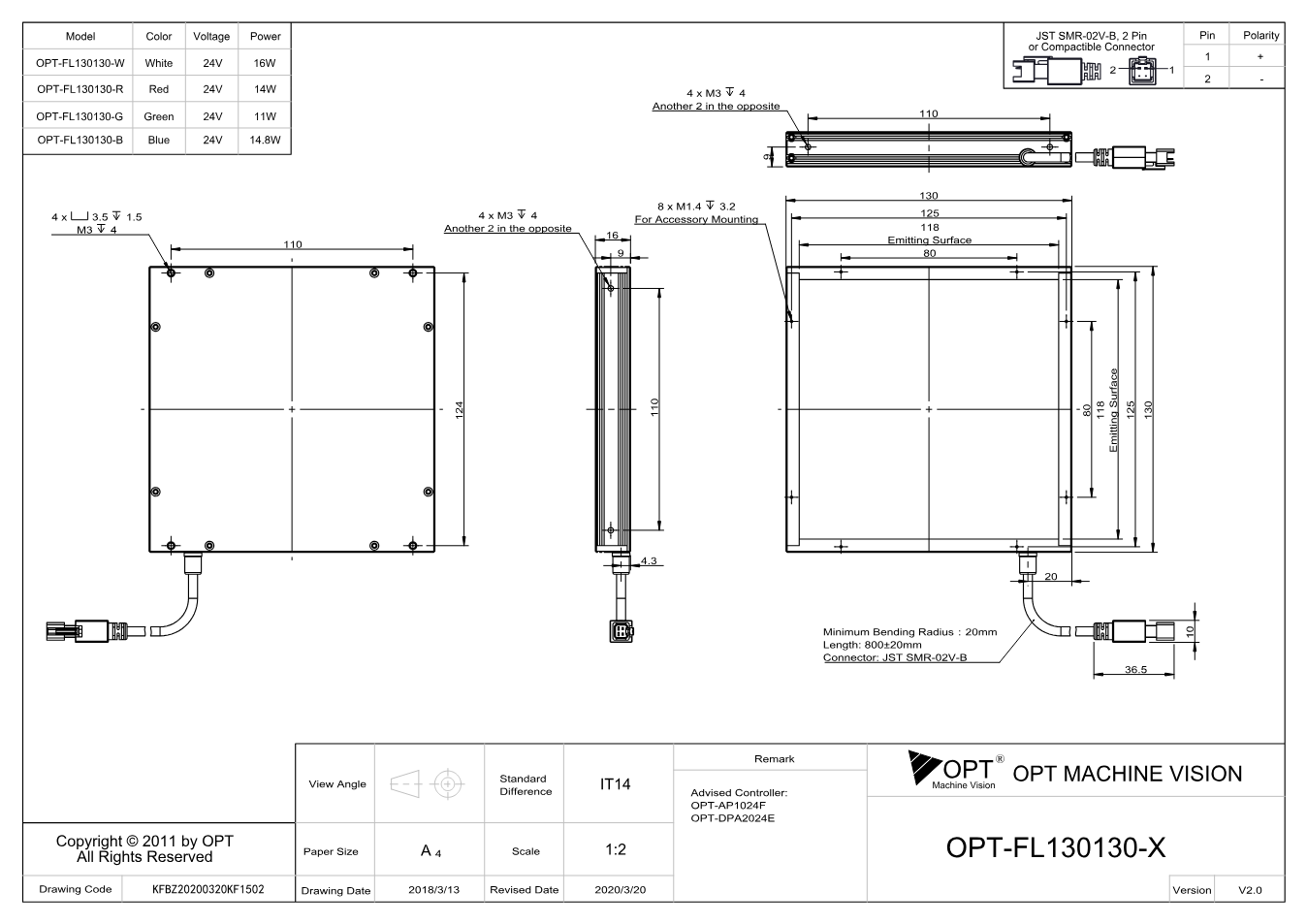

Dimensional drawing
Documents
- Download datasheet
OPT-FL-Serie (direkte Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 2 MB
- Download
Maßzeichnung OPT-FL130130 (V2.0) (PDF)
Technical drawing · EN · 177 KB
- Download
Maßzeichnung OPT-FL130130 (V1.0) (PDF)
Technical drawing · EN · 108 KB
Accessories
Beleuchtungskabel(12)
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-D, 1 m, drag chain
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-R, 1 m, robot cable
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-D, 2 m, drag chain
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-R, 2 m, robot cable
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-D, 3 m, drag chain
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-R, 3 m, robot cable
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-D, 5 m, drag chain
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-R, 5 m, robot cable
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-D, 10 m, drag chain
JST SMR-02V-B · 10 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-R, 10 m, robot cable
JST SMR-02V-B · 10 m
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-2B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-4B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
More variants in this series
- Area light OPT-FL110110-G
- Area light OPT-FL110110-R
- Area light OPT-FL110110-W
- Area light OPT-FL130130-B
- Area light OPT-FL130130-G
- Area light OPT-FL130130-R
- Area light OPT-FL130130-W
- Area light OPT-FL150150-B
- Area light OPT-FL150150-G
- Area light OPT-FL150150-R
- Area light OPT-FL150150-W
- Area light OPT-FL175175-B
Description
OPT-FL130130-RGB designates, within the OPT-FL series (direct backlights) the product type “Direct area backlight“. Key figures are light color green / blue, input voltage 24 V | 24 V, power consumption 12.0 W | 14.6 W.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
