Front light MV-LBES-H-450-320-B2

The MV-LBES-H-450-320-B2 area light from HIKROBOT is a flat front light in blue with a 450 mm × 320 mm emitting area and a camera opening of 70 mm diameter in the center. The camera looks through the opening; the diffuse light comes from the direction of the camera axis and illuminates matte and slightly glossy surfaces evenly with few shadows.

Technical data

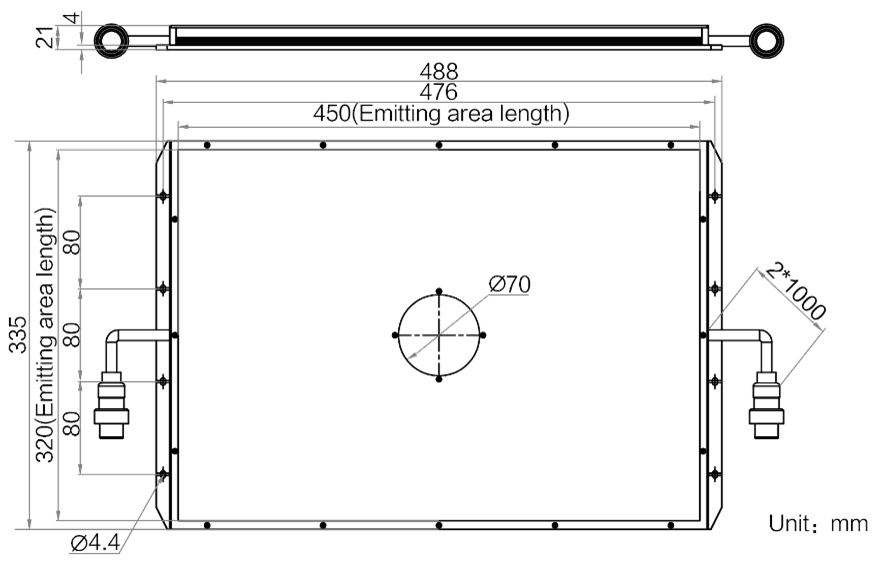

The emitting area measures 450 mm × 320 mm. At a distance of 600 mm the light reaches an illuminance of at least 3,000 lux at the center. The blue light has a wavelength of 470 nm. A diffuser plate is included. Power consumption is 170.5 W, the supply 24 V DC, the connection is a Dual-channel 19M-2A connector on a 1 m cable. The housing measures 488 mm × 335 mm × 21 mm and weighs 3.2 kg.

Operating conditions

The permissible range is 0 °C to 40 °C in operation and -20 °C to 60 °C in storage, each at 20 % to 90 % relative humidity without condensation.

Applications and selection

Flat front lights suit labels and print, placement checks, completeness and position inspection as well as colored parts with color cameras. The emitting area should be larger than the camera's field of view. The MV-LBES-H series comes with emitting areas from 50 mm × 50 mm to 620 mm × 620 mm in white, red, blue and infrared. The light runs on a HIKROBOT MV-LE series light controller; matching controllers, extension cables, cameras and lenses are listed in the catalog. We are glad to help with sizing by field of view, working distance and light color; requests go through the inquiry basket.
