OPT
Dome light OPT-MSRID350-R
Manufacturer part number: OPT-MSRID350-R
Series: OPT-MS-Serie (Zonenbeleuchtungen)
- Dome type
- Segmented / multi-zone dome light
- Emitting area
- Ø 287.2 mm
- Camera aperture
- Ø 60 mm
- Light color
- Red
- Outer dimensions
- 392 × 392 × 182.9 mm
- Connection
- JST SMR-02V-B
- Channels / zones
- 4
- Channels independently controllable
- Yes
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-MSRID350-R |
|---|---|
| Color | Red (manufacturer states blue) |
| Current | 2.3 A |
| Power | 54.9 W |
| Flange dimensions (L x W x H) | 392 × 392 × 182.9 mm |
| Dome diameter | Ø 350 mm |
| Emitting surface (diameter) | Ø 287.2 mm |
| Camera opening | Ø 60 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

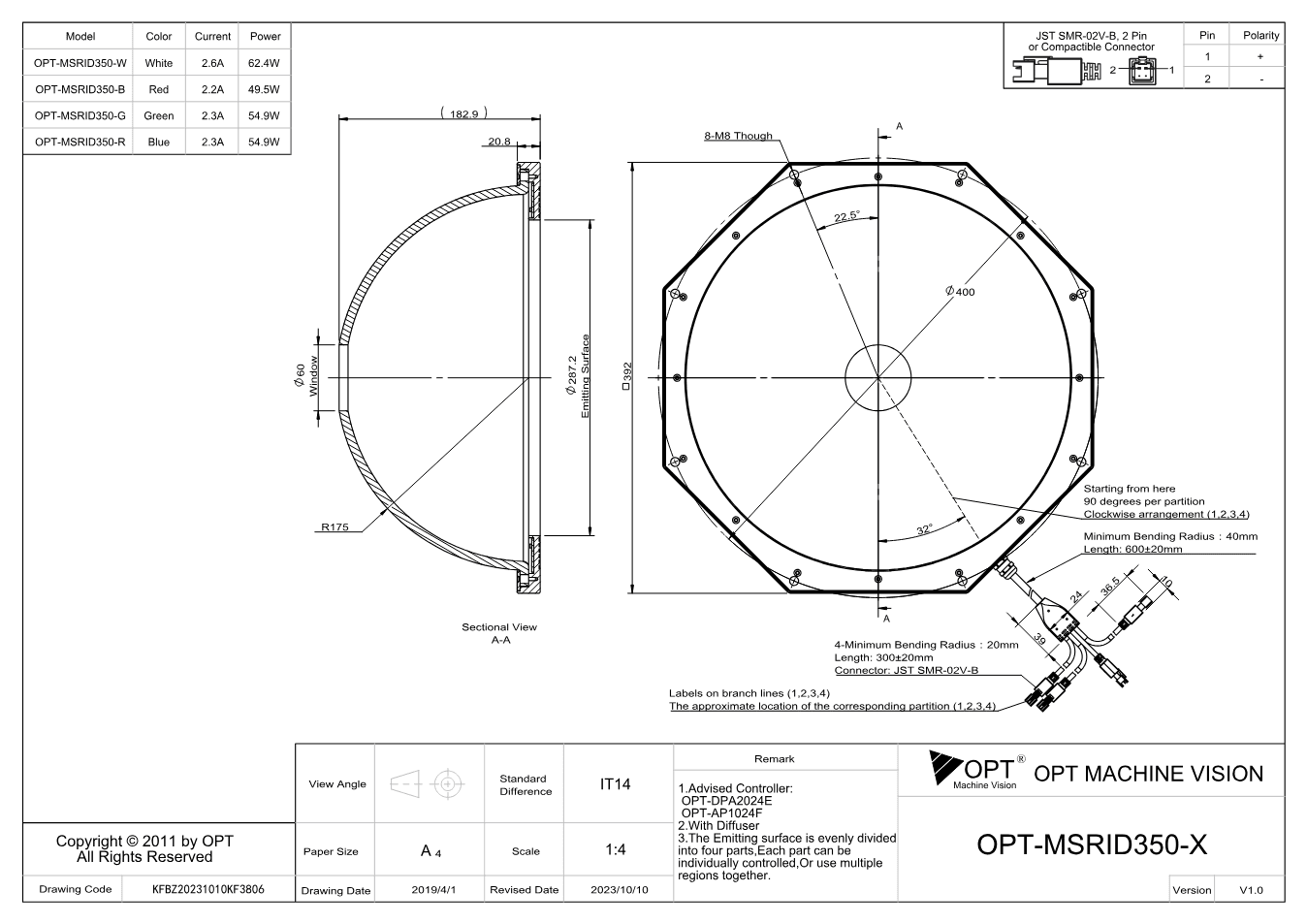

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-MSRID-Serie (PDF)
Datasheet · EN · 1 MB
- Download
Maßzeichnung OPT-MSRID350 (V1.0) (PDF)
Technical drawing · EN · 200 KB
Accessories
Beleuchtungskabel(12)
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-D, 1 m, drag chain
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-R, 1 m, robot cable
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-D, 2 m, drag chain
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-R, 2 m, robot cable
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-D, 3 m, drag chain
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-R, 3 m, robot cable
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-D, 5 m, drag chain
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-R, 5 m, robot cable
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-D, 10 m, drag chain
JST SMR-02V-B · 10 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-R, 10 m, robot cable
JST SMR-02V-B · 10 m
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-2B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-4B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
More variants in this series
- Dome light OPT-MSRID180-B
- Dome light OPT-MSRID180-G
- Dome light OPT-MSRID180-R
- Dome light OPT-MSRID180-W
- Dome light OPT-MSRID350-B
- Dome light OPT-MSRID350-G
- Dome light OPT-MSRID350-W
- Ring light OPT-MSRIP120-B
- Ring light OPT-MSRIP120-G
- Ring light OPT-MSRIP120-R
- Ring light OPT-MSRIP120-W
- Ring light OPT-MSRIP170-B
Description
OPT-MSRID350-R designates, within the OPT-MS series (zone lights) the product type “zone light“. Key figures are light color blue, current consumption 2.3 A, power consumption 54.9 W.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
