OPT-IDD1-HLW Light for code readers (logistics)
Manufacturer part number: OPT-IDD1-HLW
Series: OPT-IDD1 (D1-Serie)
- Light color
- White
- Rated voltage
- 24VDC±20%
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-IDD1-HLW |
|---|---|
| Light source type | LED Lamp |
| Light source color | White |
| Trigger mode | Directly Controlled by Code Reader |
| Number of lamp beads | 56 High-Brightness LEDs |
| Power supply mode | 24VDC±20 % |
| Power consumption | <240 W@24VDC |
| Temperature | Operation 0 °C ~ 50 °C; Lagerung -20 °C ~ 70 °C |
| Environmental humidity | < 85%RH (non-condensing) |
| Dimensions | 200.45 mm x 160.45 mm x 35 mm (excluding mounting bracket) |
| Weight | 1.45 kg |
| Accessory type | Lighting module |
| Trigger | Direkt vom Codeleser gesteuert |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

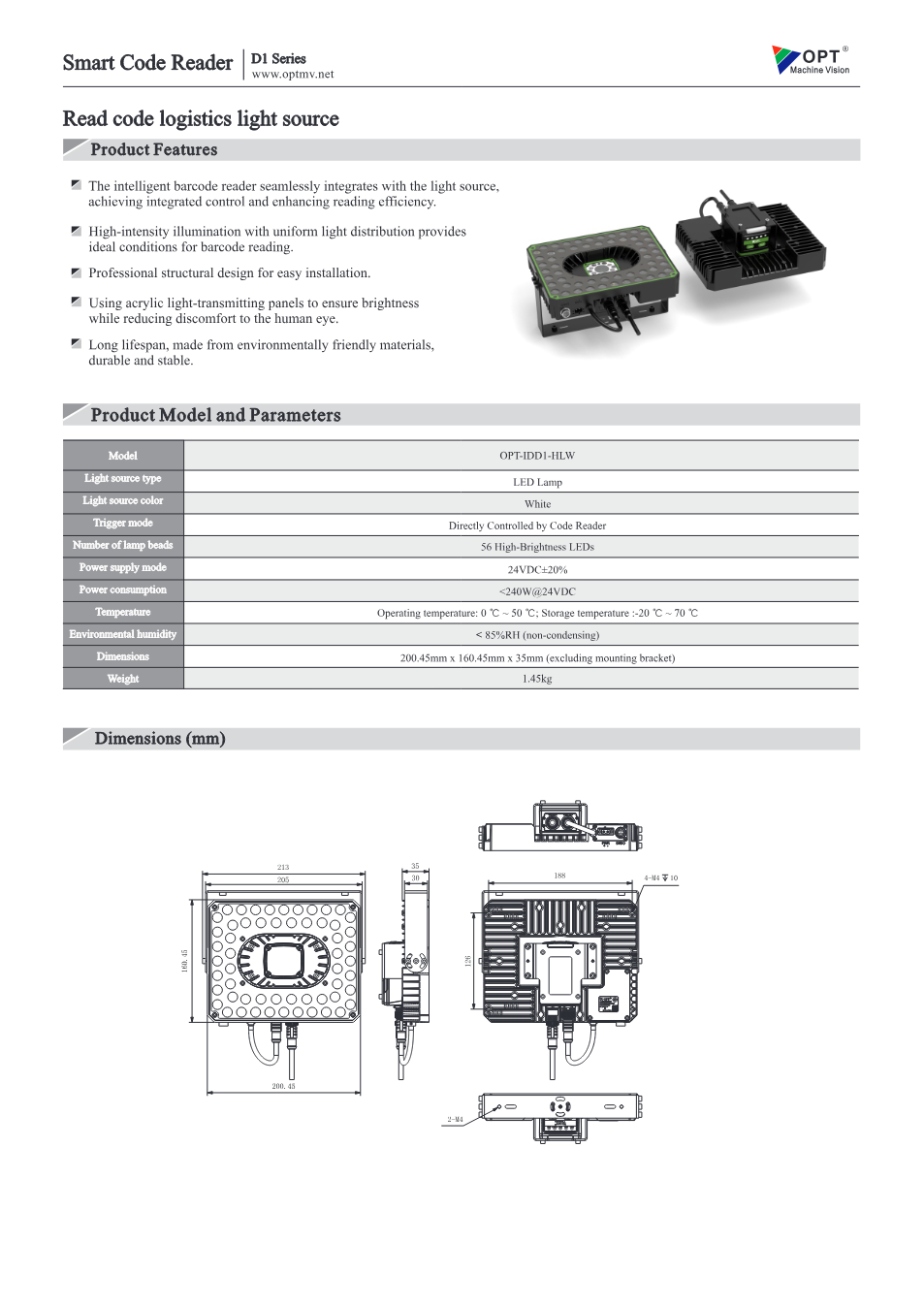

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-IDD1 (D1-Serie) (PDF, EN)
Datasheet · EN · 10329 KB
Description
OPT-IDD1-HLW is the logistics light for the code readers of the D1 and E1 series: 56 high-power LEDs in white behind an acrylic pane, triggered directly by the code reader, up to 240 W at 24 V DC. It provides uniform, bright illumination of large reading fields, for example on conveyor lines.
OPT-IDD1-HLW. Tell us your inspection task, reading distance and interface and we will check variant and accessories and quote price and delivery time.
