HIKROBOT

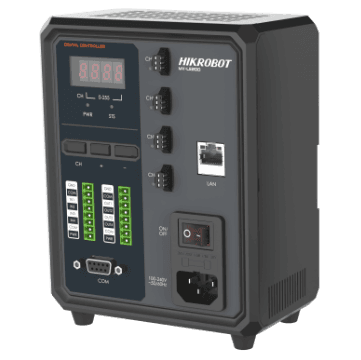

Digital Light controller (Constant voltage) MV-LE200-200W24-4TD
Manufacturer part number: MV-LE200-200W24-4TD
- Control
- digital
- Output type
- Constant voltage
- Channels
- 4
- Output power
- 200 W total
- Light voltage
- 24 V
- Operating mode
- Dauerlicht, Strobe
- Communication
- UDP, seriell; RJ45-Netzwerkanschluss, DB9F serielle Schnittstelle
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-LE200-200W24-4TD |
|---|---|
| Type | Digitaler Lichtcontroller, 4 Kanäle, 200 W / 24 V |
| Drive mode | digital, Konstantspannung |
| Lighting mode | Dauerlicht, Strobe |
| Channel | 4 Kanäle |
| Output power | max. 200 W |
| Output voltage | 24 V DC |
| Output current | max. 8.3 A |
| Output current for each channel | max. 3 A |
| Dimming mode | Bedienfeld (Tasten), Software (serielle Schnittstelle or Netzwerk) |
| Brightness level | 0 up to 255 |
| PWM frequency | 125 kHz |
| Strobe overdrive | not supported |
| Lighting response time | < 10 µs |
| Trigger mode | externer and interner Trigger |
| Trigger in | High-Pegel 4.5 V DC up to 24 V DC, Low-Pegel 0 V DC up to 2 V DC |
| Trigger out | High-Pegel 10 V DC up to 24 V DC, Low-Pegel 0 V DC up to 2 V DC |
| Communication protocol | UDP, seriell |
| Console interface | RJ45-Netzwerkanschluss, DB9F serielle Schnittstelle |
| Digital I/O | optoentkoppelter Eingang × 4, optoentkoppelter Ausgang × 4 |
| Lighting output connector | SMR-03V-BC |
| Applicable product | Ringlicht, Balkenlicht, Flächenlicht, Koaxiallicht und andere |
| Input voltage | 100 V AC up to 240 V AC, 50 Hz/60 Hz |
| Input current | 1.8 A (115 V AC), 1 A (230 V AC) |
| Power supply interface | C13 220 V AC interface |
| Dimension | 130 mm × 83.8 mm × 169.5 mm |
| Shell material | Plastic |
| Weight | approx. 733 g |
| Cooling mode | Fan cooling |
| Temperature | Operation 0 °C up to 40 °C / Lagerung -20 °C up to 60 °C |
| Humidity | 20 % RH up to 85 % RH (non-condensing) |
| Ingress protection | IP30 |
| Certification | CE, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet HIKROBOT Lichtcontroller MV-LE200-200W24-4TD
Datasheet · DE · 822 KB
- Download
Technical drawing HIKROBOT Lichtcontroller MV-LE200-200W24-4TD
Technical drawing · DE · 5 MB
- Download
Software / Firmware V1.0.11 HIKROBOT Lichtcontroller MV-LE200-200W24-4TD
Software / firmware · DE · 78 KB
- Download
Manual HIKROBOT Lichtcontroller MV-LE200-200W24-4TD
Manual · DE · 2 MB
Description
Key Feature - Supports different control modes of light source, including control panel and software. - Supports using serial port or network interface to set parameters and manage the devic - Provides multiple I/O interfaces for external trigger. - Supports installation via slide rail or screw hole. - Supports overcurrent, overload, short circuit protection.
