Bar light OPT-LIM26820-R
Manufacturer part number: OPT-LIM26820-R
Series: OPT-LIM-Serie (kombinierte Balkenbeleuchtungen)
- Emitting area
- 254 × 254 mm
- Light color
- Red
- Optical design / beam angle
- Adjustable
- Connection
- JST SMR-02V-B
- Supply
- 24 V
- Power consumption
- 31.6 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LIM26820-R |
|---|---|
| Color | Red |
| Voltage | 24 V |
| Power | 31.6 W |
| Stock Code | 11050372400 |
| Weight(KG) | 0.93 kg |
| Leuchtfläche | 254 × 254 mm |
| Optische Ausführung | Adjustable |
| Frame outer dimensions (L x W) | 336 × 336 mm |
| Bar width | 38 mm |
| Bar length | 268 mm |
| Connection | JST SMR-02V-B |
| Recommended controller | OPT-AP1024F or OPT-DPA2024E |
| Controller required | Recommended |
| Cable length | 800 ± 20 mm |
| Housing length | 336 mm |
| Housing width | 336 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

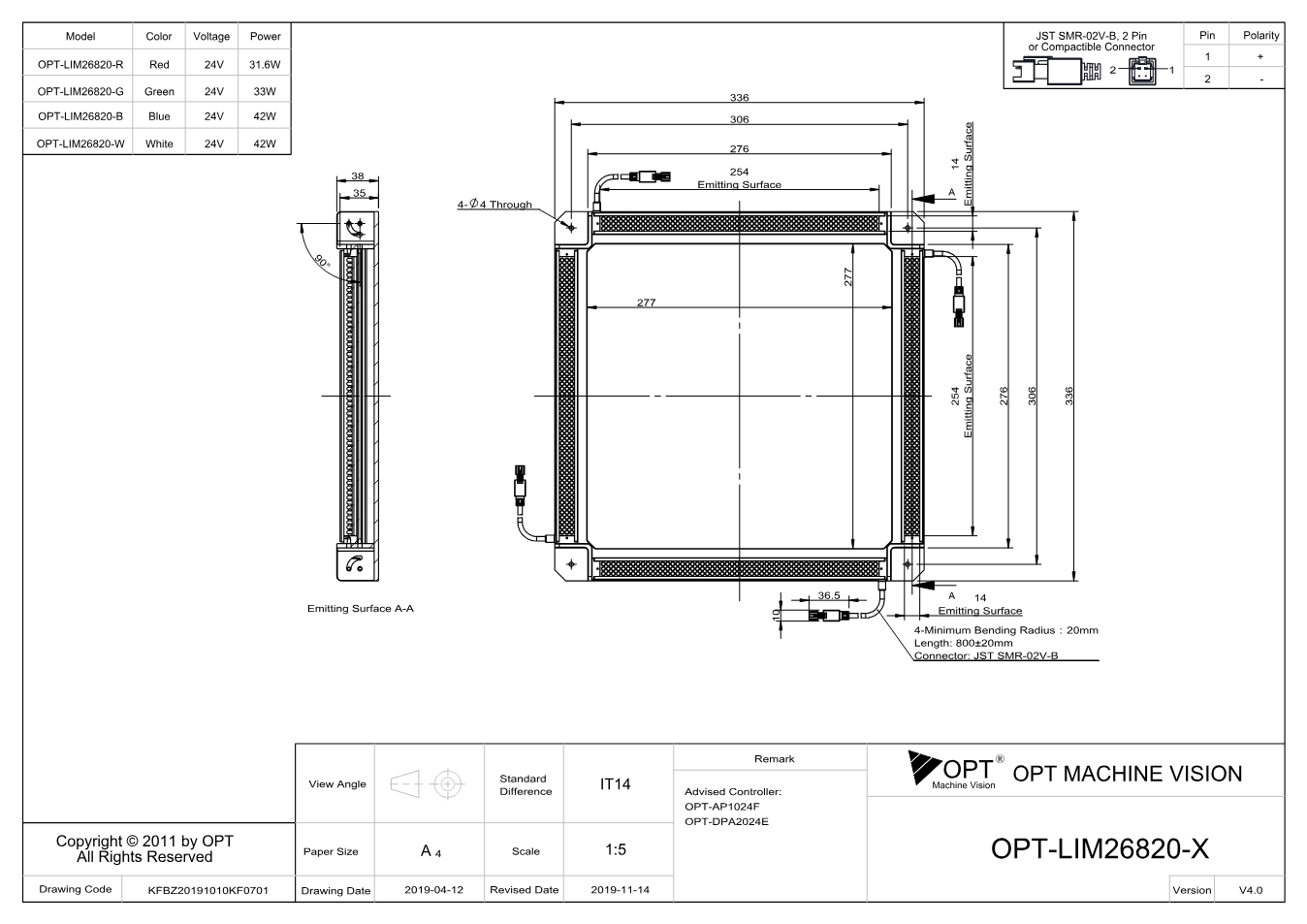

Dimensional drawing
Documents
- Download datasheet
OPT-LIM-Serie (kombinierte Balkenbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 2761 KB
- Download
Maßzeichnung OPT-LIM26820 (V4.0) (PDF)
Technical drawing · EN · 224 KB
- Download
Maßzeichnung OPT-LIM26820 (V4.0U) (PDF)
Technical drawing · EN · 168 KB
