Bar light OPT-LIGA392-A45-W
Manufacturer part number: OPT-LIGA392-A45-W
Series: OPT-LIGA-Serie (Balkenbeleuchtungen mit verstellbarem Abstrahlwinkel)
- Emitting area
- 378 × 20 mm
- Light color
- White
- Optical design / beam angle
- Adjustable, 45°?
- Connection
- ZQ GX16M-6A
- Power consumption
- 93.6 W
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LIGA392-A45-W |
|---|---|
| Color | white |
| Current | 3.9 A |
| Power | 93.6 W |
| Leuchtfläche | 378 × 20 mm |
| Farbtemperatur | 5000 – 7000 K |
| Dimensions (L x W x H) | 392 × 35 × 50 mm |
| Connection | ZQ GX16M-6A |
| Recommended controller | OPT-DPA6024E |
| Optical design | Adjustable |
| Beam angle (manufacturer) | 45° |
| Controller required | Recommended |
| Cable length | 1000 ± 20 mm |
| Min. bending radius of the cable | 40 mm |
| Housing length | 392 mm |
| Housing width | 35 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

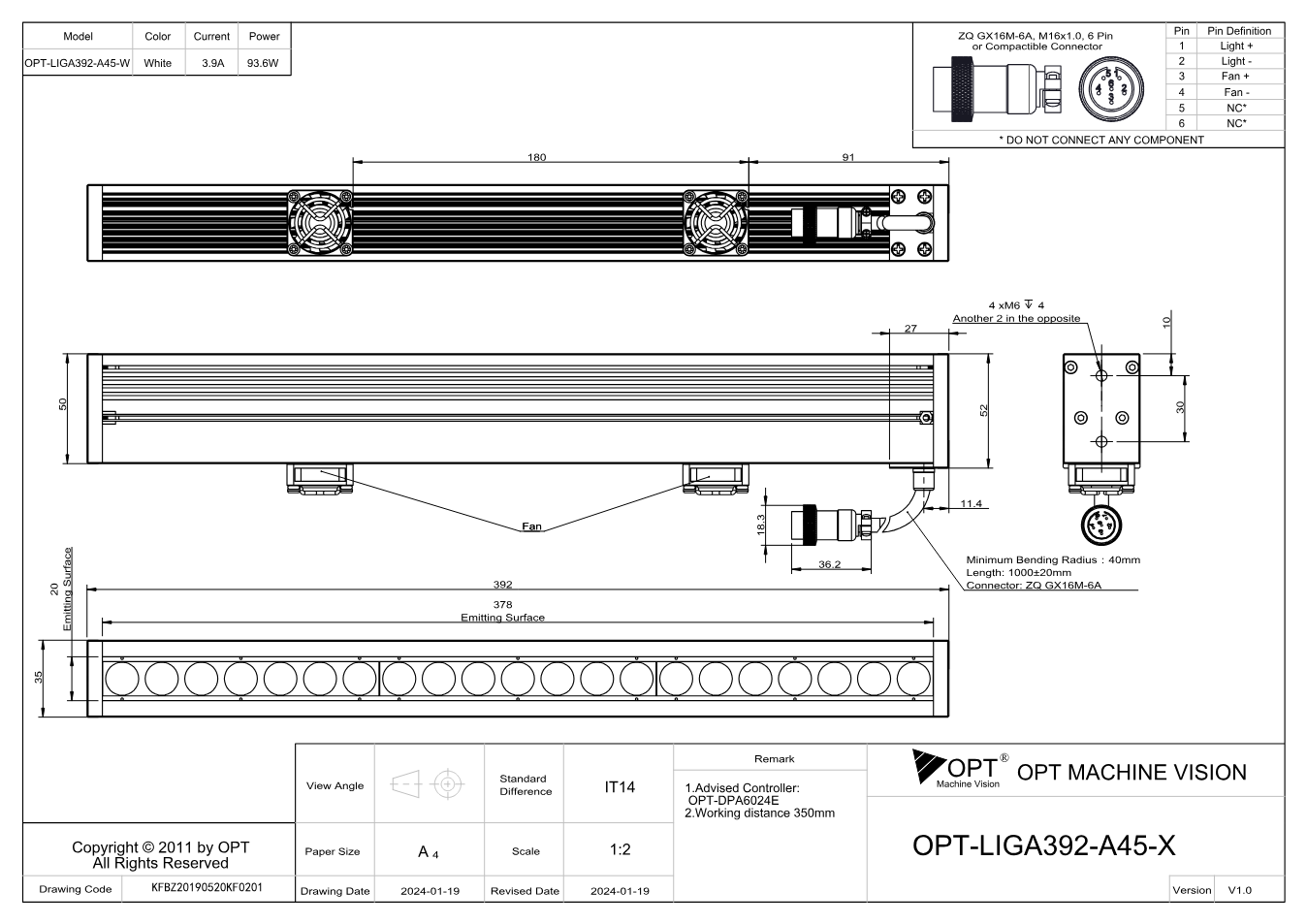

Dimensional drawing
Documents
- Download
Maßzeichnung OPT-LIGA392-A45 (V1.0) (PDF)
Technical drawing · EN · 241 KB
Accessories
Beleuchtungskabel(9)
OPT
Extension cable 6-pin, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Extension cable 6-pin, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Extension cable 6-pin, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Extension cable 6-pin, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Light cable 6-pin, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
OPT
Light cable 6-pin, 6 A OPT-DGYX2M-6P-S-6A, 2 m
ZQ GX16M-6A · 2 m
OPT
Light cable 6-pin, 6 A OPT-DGYX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Light cable 6-pin, 6 A OPT-DGYX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Light cable 6-pin, 6 A OPT-DGYX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
More OPT products in this category
Description
OPT-LIGA392-A45-W designates the product type "bar light with adjustable beam angle" within the OPT-LIGA series (bar lights with adjustable beam angle). Its central characteristics are light color white, current draw 3.9 A, power 93.6 W.
When choosing a machine vision light, not only color and power matter but also the illuminated field, mounting angle, working distance and drive. The dimensional drawing is available as an image and as a PDF.
Tell us your camera, lens and inspection task and we will check the combination and give you price and delivery time for the exact part number.
