Bar light OPT-LIG255-B
Manufacturer part number: OPT-LIG255-B
Series: OPT-LIG-Serie (Balkenbeleuchtungen hoher Intensität)
- Emitting area
- 240 × 17.8 mm
- Light color
- Blue
- Optical design / beam angle
- Line focus
- Connection
- JST SMR-02V-B
- Power consumption
- 24 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LIG255-B |
|---|---|
| Color | Blue |
| Current | 1.0 A |
| Power | 24 W |
| Weight(KG) | 1 kg |
| Leuchtfläche | 240 × 17.8 mm |
| Optische Ausführung | Line focus |
| Dimensions (L x W x H) | 255 × 36 × 58 mm |
| Connection | JST SMR-02V-B |
| Recommended controller | OPT-DPA2024E |
| Controller required | Recommended |
| Cable length | 800 ± 20 mm |
| Housing length | 255 mm |
| Housing width | 36 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

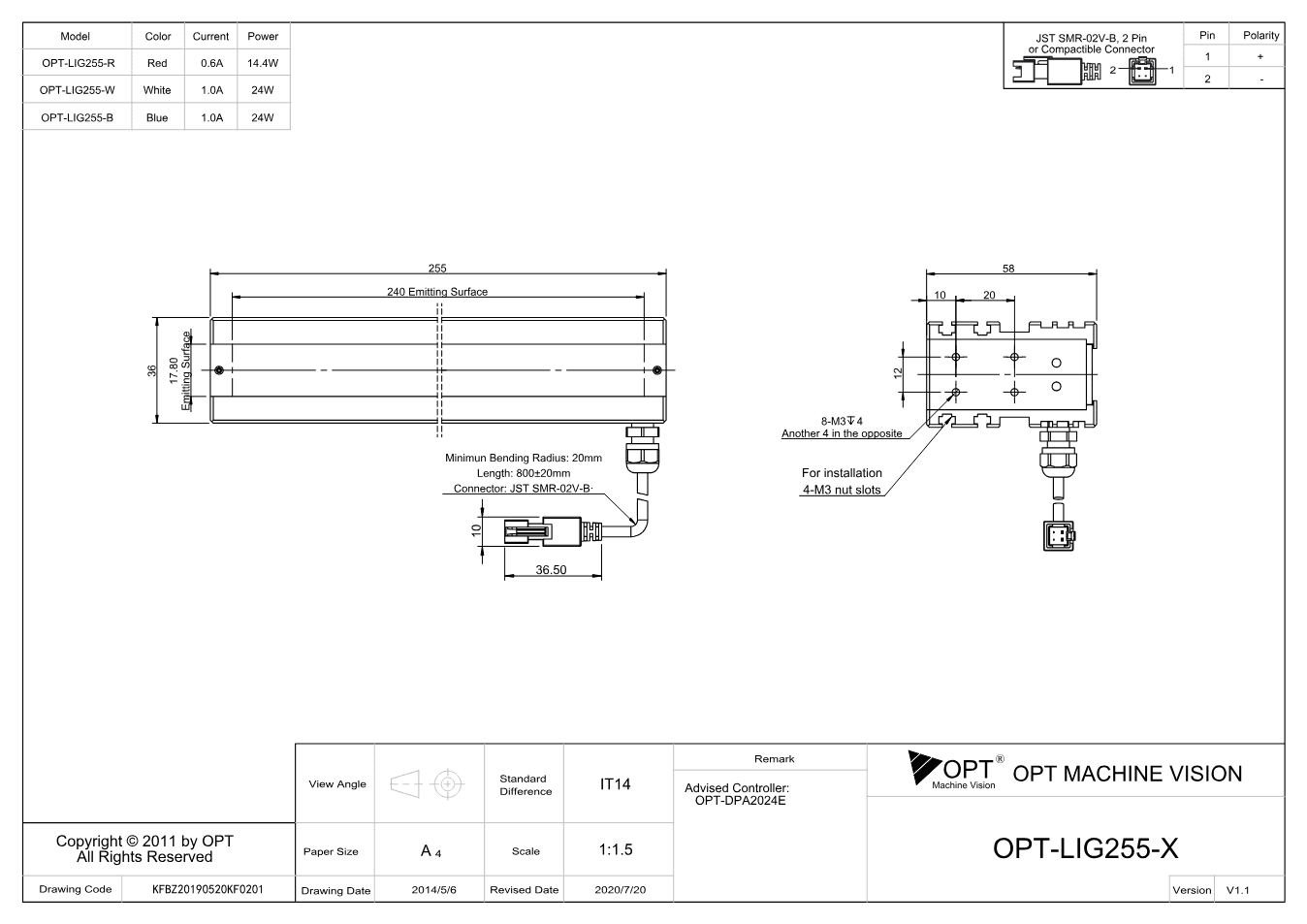

Dimensional drawing
Documents
- Download datasheet
OPT-LIG-Serie (Balkenbeleuchtungen hoher Intensität) - Serienbroschüre OPT (EN)
Datasheet · EN · 3 MB
- Download
Maßzeichnung OPT-LIG255 (V1.1) (PDF)
Technical drawing · EN · 93 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-LIG255-B is part of the OPT lighting range. Light color: blue, power: 24 V/24 W and weight: 1 kg.
Which light is the right one depends not only on design and light color but also on working distance, test object and camera choice. Tell us what you want to inspect and we will match light, lens and controller to one another and give you price and delivery time.
