Bar light OPT-LIA37432-R
Manufacturer part number: OPT-LIA37432-R
Series: OPT-LIA-Serie (Balkenbeleuchtungen)
- Emitting area
- 360 × 26 mm
- Light color
- Red
- Optical design / beam angle
- Line focus
- Connection
- JST SMR-02V-B
- Supply
- 24 V
- Power consumption
- 4.8 W
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LIA37432-R |
|---|---|
| Color | Red |
| Voltage | 24 V |
| Power | 4.8 W |
| Stock Code | 11420084100 |
| Leuchtfläche | 360 × 26 mm |
| Optische Ausführung | Line focus |
| Dimensions (L x W x H) | 374 × 32 × 24 mm |
| Connection | JST SMR-02V-B |
| Recommended controller | OPT-AP1024F or OPT-DPA2024E |
| Controller required | Recommended |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 374 mm |
| Housing width | 32 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

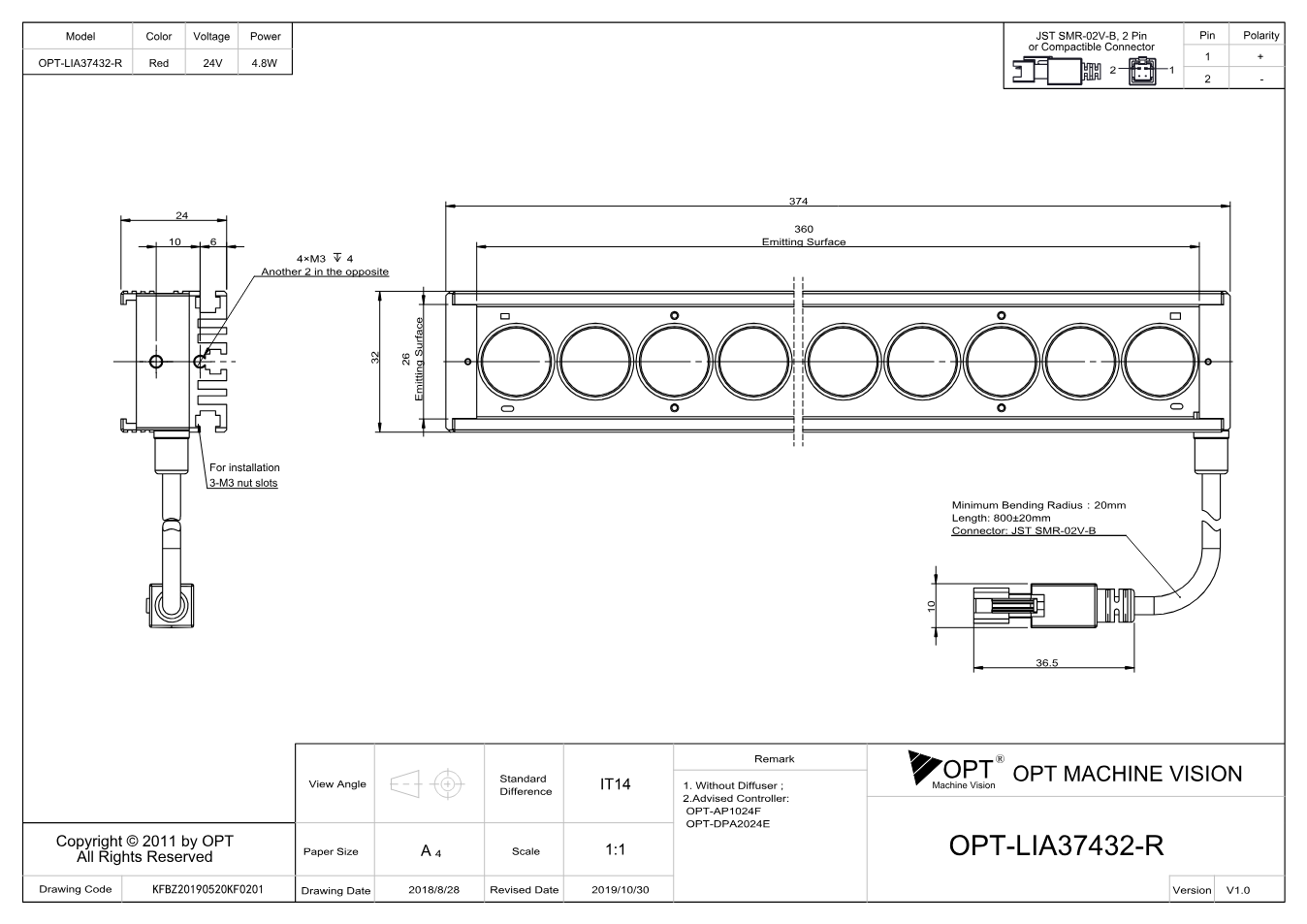

Dimensional drawing
Documents
- Download datasheet
OPT-LIA-Serie (Balkenbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 1 MB
- Download
Maßzeichnung OPT-LIA37432 (V1.0) (PDF)
Technical drawing · EN · 161 KB
- Download
Maßzeichnung OPT-LIA37432 (V1.0U) (PDF)
Technical drawing · EN · 160 KB
Accessories
Beleuchtungskabel(12)
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-D, 1 m, drag chain
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-R, 1 m, robot cable
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-D, 2 m, drag chain
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-R, 2 m, robot cable
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-D, 3 m, drag chain
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-R, 3 m, robot cable
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-D, 5 m, drag chain
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-R, 5 m, robot cable
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-D, 10 m, drag chain
JST SMR-02V-B · 10 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-R, 10 m, robot cable
JST SMR-02V-B · 10 m
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-2B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-4B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
More variants in this series
Description
OPT-LIA37432-R belongs to the OPT-LIA series from OPT - bar light. Light color: red, input voltage: 24 V, power: 4.8 W.
The OPT-LIA series is a bar light with strong directivity. The collimated light reaches even larger working distances with high intensity and clearly brings out edges and surface structures.
Which light is the right one depends not only on design and light color but also on working distance, test object and camera choice. Tell us what you want to inspect and we will match light, lens and controller to one another and give you price and delivery time.
