OPT
Bar light OPT-LI22332-RGB
Manufacturer part number: OPT-LI22332-RGB
Series: OPT-LI-Serie (Balkenbeleuchtungen)
- Emitting area
- 211 × 28 mm
- Light color
- Green, Blue
- Optical design / beam angle
- Direct
- Connection
- JST SMR-02V-B
- Supply
- 24V | 24V
- Power consumption
- 3.1W | 3.3W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LI22332-RGB |
|---|---|
| Color | green / blue |
| Voltage | 24 V | 24 V |
| Power | 3.1 W | 3.3 W |
| Leuchtfläche | 211 × 28 mm |
| Optische Ausführung | Direct |
| Dimensions (L x W x H) | 223 × 32 × 24 mm |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Housing length | 223 mm |
| Housing width | 32 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

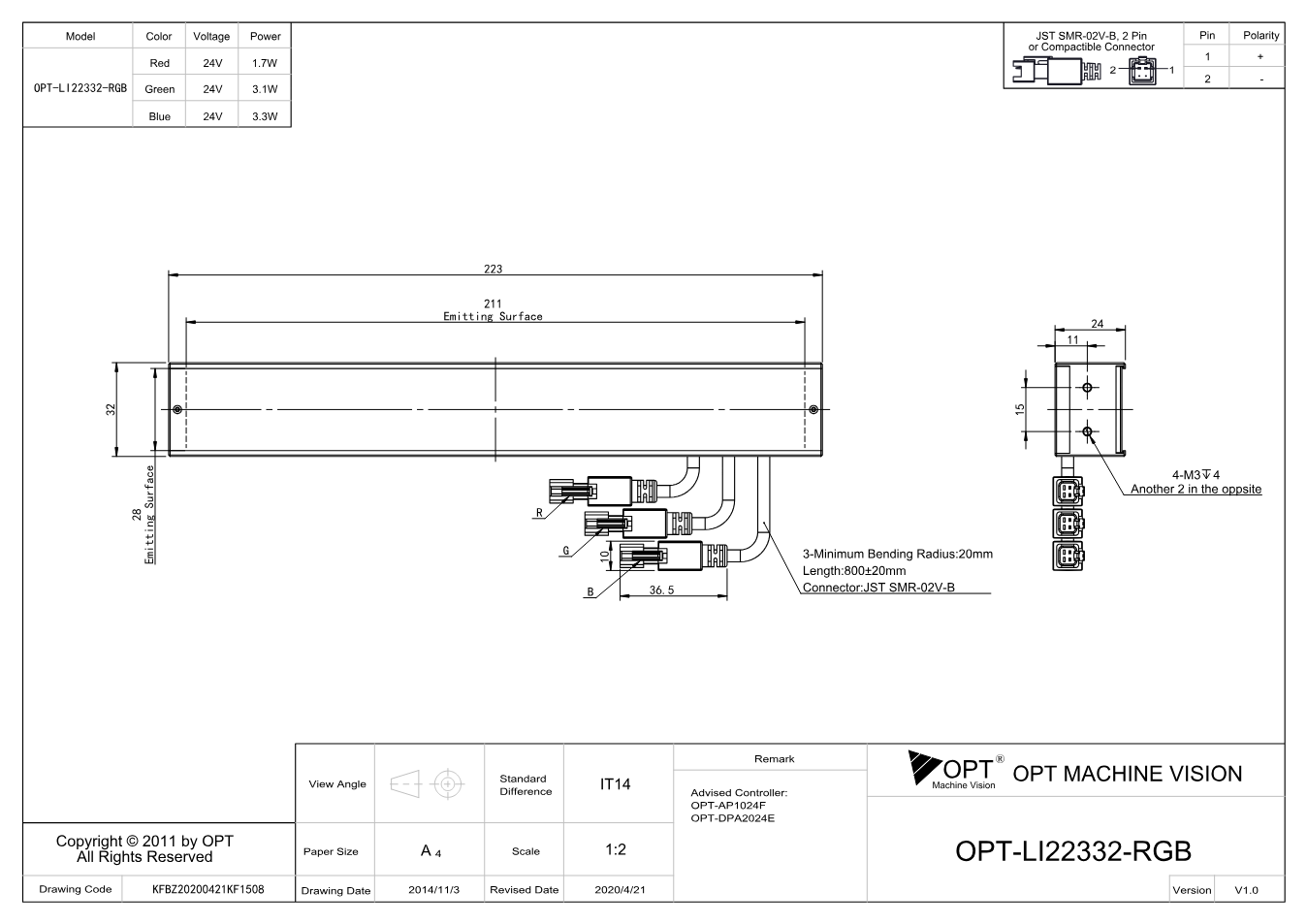

Dimensional drawing
Documents
- Download datasheet
OPT-LI-Serie (Balkenbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 5 MB
- Download
Maßzeichnung OPT-LI22332 (V1.0) (PDF)
Technical drawing · EN · 106 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-LI22332-RGB designates the product type "bar light" within the OPT-LI series (bar lights). Its central characteristics are light color green, blue, input voltage 24 V | 24 V, power 3.1 W | 3.3 W.
When choosing a machine vision light, not only color and power matter but also the illuminated field, mounting angle, working distance and drive. The dimensional drawing is available as an image and as a PDF.
Tell us your camera, lens and inspection task and we will check the combination and give you price and delivery time for the exact part number.
