di-soric
Connection cable VKHM-Z-1012-A
Manufacturer part number: VKHM-Z-1012-A
Series: VKHM-Z
- Accessory type
- Power / I/O cable
- Compatible with
- CS 50
- Length
- 10000 mm
- Connector A
- Buchse, M12, 12-pin and more
- Flexibility
- Straight / flying leads
- Ingress protection
- IP67
Suitable for: Vision Sensoren - CS 50, Vision Sensoren CS
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | VKHM-Z-1012-A |
|---|---|
| Elektrische Merkmale: Betriebsspannung | < 30 V AC/DC |
| Mechanische Merkmale: Länge | 10000 mm |
| Mechanische Merkmale: Durchmesser | Ø 6.5 mm (Durchmesser) |
| Mechanische Merkmale: Gewinde | M12 |
| Mechanische Merkmale: Material Kabel | PVC, geschirmt |
| Allgemeine Merkmale: Komponente | Anschlusskabel |
| Allgemeine Merkmale: Bauform | Straight / flying leads |
| Allgemeine Merkmale: Besonderheiten | Metallmutter |
| Allgemeine Merkmale: Geeignet für | Vision Sensoren - CS 50, Vision Sensoren CS |
| Anzeige, Bedienung: LED Anzeige | No |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | -5 … +80 °C (bewegt, fest) |
| Umgebungsbedingungen: Schutzart | IP 67 |
| Elektrischer Anschluss: Anschluss | Buchse, M12, 12-pin, A-coded |
| Elektrischer Anschluss: Querschnitt | 0.14 mm² (12 x) |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

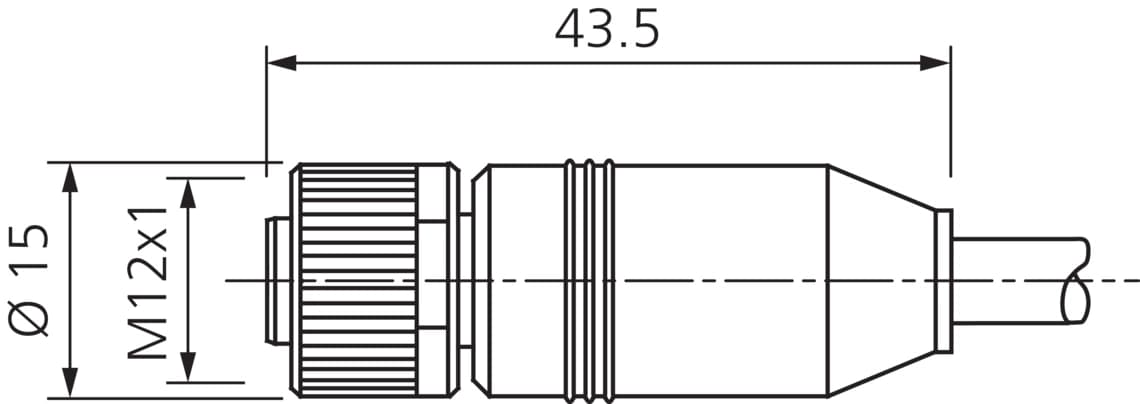

Dimensional drawing
Documents
- Download datasheet
206957 ds VKHM-Z-10-12-A de (PDF)
Datasheet · DE · 794 KB
Description
Connection cable with an open cable end for quick commissioning of sensors, lighting and vision and ID products. The robust metal coupling nut, clean strippability and high degree of protection also make it suitable for demanding installation situations. Further properties include: shielded, PVC cable material for applications in wet areas or under water, sturdy metal coupling nut, flexible stranded construction, good stripping properties, high degree of protection and gold-plated contacts.
