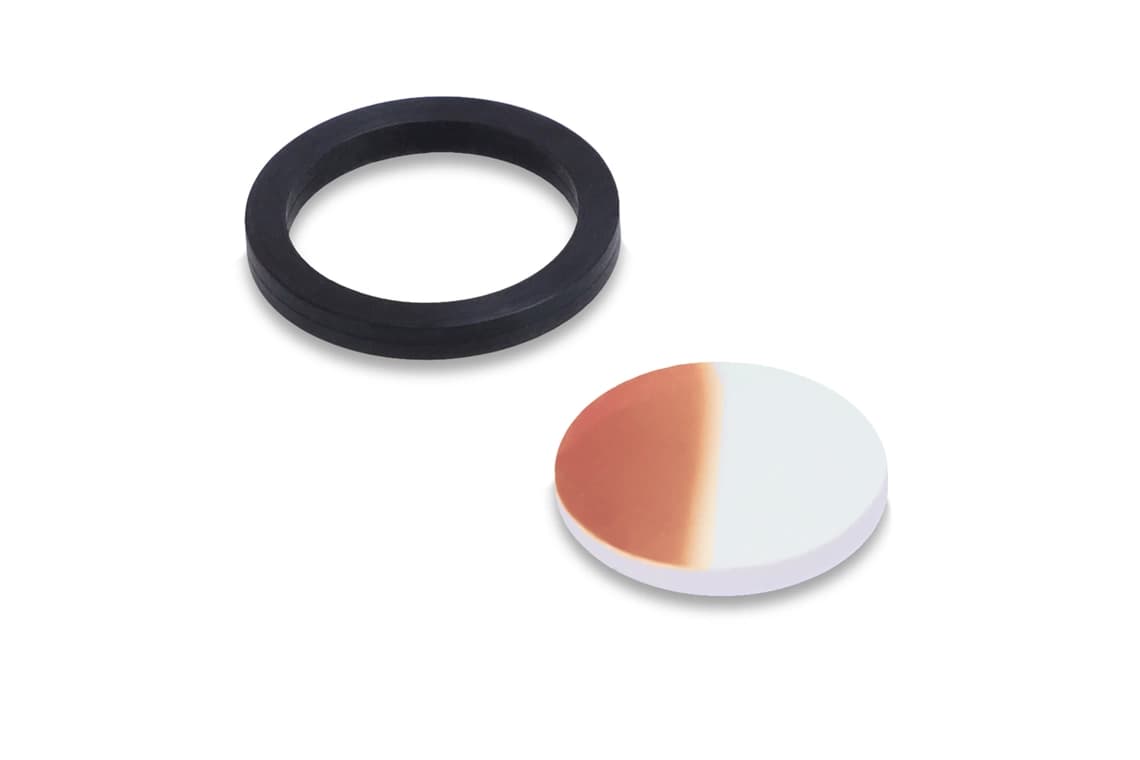

Bandpass filter CS60-BP-850-D11.8
Manufacturer part number: CS60-BP-850-D11.8
Series: CS60-BP
- Accessory type
- Optical filter
- Compatible with
- CS
- Center wavelength
- 850 nm
Suitable for: Vision Sensoren CS
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | CS60-BP-850-D11.8 |
|---|---|
| Mechanische Merkmale: Gesamthöhe (A) | 1 mm |
| Mechanische Merkmale: Durchmesser | Ø 11.8 mm (Durchmesser) |
| Mechanische Merkmale: Gehäusematerial | Borofloat |
| Mechanische Merkmale: Gewicht | 1 g |
| Allgemeine Merkmale: Komponente | Bandpassfilter |
| Allgemeine Merkmale: Geeignet für | Vision Sensoren CS |
| Funktionsumfang: Lieferumfang | Bandpassfilter, 1 O-Ring |
| Optische Daten: Farbe | Infrared |
| Optische Daten: Wellenlänge | 850 nm |
| Optische Daten: Transmission | 840 - 900 nm (>85 %), 350 - 780 / 960 - 1100 nm (<3 %) |
| Optische Daten: Einfallswinkel AOI | 0 … 15° |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
213022 ds CS60-BP-850-D11.8 de (PDF)
Datasheet · DE · 292 KB
Description
Among the di-soric accessorys, the CS60-BP-850-D11.8 stands out. It weighs 1 g; transmission is more than 85 %. The pass band runs from 840 to 900 nm; the material is Borofloat. It is a bandpass filter for accessory applications; supplied with O-ring.
