HIKROBOT
Vision sensor MV-SC3050XM-16M-WBN-S
Manufacturer part number: MV-SC3050XM-16M-WBN-S
- Device class
- Vision sensor
- AI / deep learning
- Included
- Resolution
- 5 MP (2432 × 2048 px)
- Max. frame rate
- 40 fps
- Image output
- Mono
- Optics
- 16 mm, M12-Mount
- Focus type
- Autofocus
- Illumination
- Integriert, white; weitere Lichtfarben optional
- Communication
- Fast Ethernet
- Ingress protection
- IP65
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-SC3050XM-16M-WBN-S |
|---|---|
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection Industry tools: OCR and defect detection |
| Solution capacity | Supports importing and exporting project, up to 32 projects can be stored |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1/1.45" |
| Resolution | 2432 × 2048 |
| Max. frame rate | 40 fps |
| Gain | 0 dB to 15 dB |
| Exposure time | 6 µs to 1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1 Supports triggering device via pressing top trigger button |
| Power supply | 24 VDC |
| Power consumption | Avg. 7 W @ 24 VDC (light source enabled) Max. 22 W @ 24 VDC (light source enabled) |
| Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 16 mm |
| Lens cap | Polarized + diffuser + full-transparent lens cap |
| Light source | White spot light source. Red/blue/IR point light source is optional |
| Aiming system | 1 LED |
| Indicator | Multi-angle visual indicator |
| Dimension | 43 mm × 57 mm × 45.9 mm (1.7" × 2.2" × 1.8") |
| Weight | Approx. 200 g (0.4 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Input voltage | 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

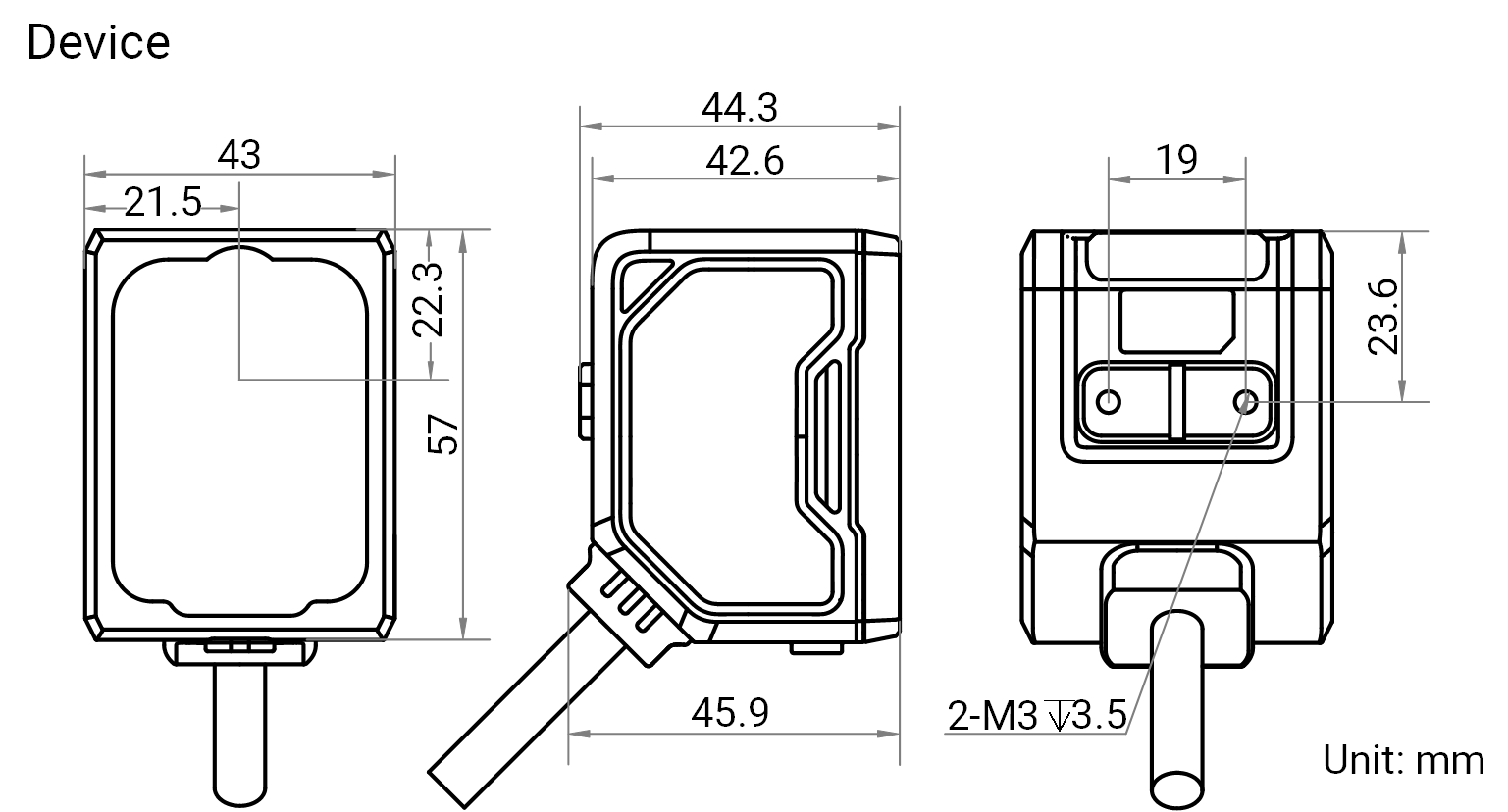

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Vision Sensor MV-SC3050XM-16M-WBN-S
Datasheet · DE · 636 KB
- Download
Technical drawing HikRobot Vision Sensor MV-SC3050XM-16M-WBN-S
Technical drawing · DE · 1553 KB
- Download
Software / Firmware V4.4.4 HikRobot Vision Sensor MV-SC3050XM-16M-WBN-S
Software / firmware · DE · 480851 KB
- Download
Quick start guide HikRobot Vision Sensor MV-SC3050XM-16M-WBN-S
Quick start guide · DE · 1960 KB
- Download
Communication protocol HikRobot Vision Sensor MV-SC3050XM-16M-WBN-S
Communication protocol · DE · 7132 KB
Description
Key Feature - Adopts embedded hardware platform to realize high-speed image processing. - Provides built-in algorithms for high-precision positioning, measurement, and recognition which can be applied in applications such as counting, defect detection, existence, and positioning. - Adopts multiple IO interfaces for input and output signals. - Supports viewing the device's status in real time via multi-angle visual indicator, convenient for debugging and maintenance. - Adopts polarized, diffuser, and full-transparent multiple optical lighting with good environmental adaptability. - Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP and other communication modes.
