Smart camera MV-SC6016M-16M-XBN
Manufacturer part number: MV-SC6016M-16M-XBN
- Device class
- Smart camera
- AI / deep learning
- Included
- Resolution
- 1.6 MP (1408 × 1024 px)
- Max. frame rate
- 120 fps
- Image output
- Mono
- Optics
- 16 mm, M12-Mount
- Focus type
- Manual focus
- Illumination
- Integriert, white; weitere Lichtfarben optional
- Communication
- GigE
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-SC6016M-16M-XBN |
|---|---|
| Function module | Vision Master Platform (include deep learning module) |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 120 fps |
| Gain | 0 dB to 15 dB |
| Exposure time | 25 µs to 30000 µs |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| Memory | 8 GB |
| Storage | 64 GB |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1 |
| Extended interface | VGA × 1, and USB host × 1 |
| Power supply | 24 VDC |
| Power consumption | External light source and built-in light source cannot be used at the same time Avg. 12 W @ 24 VDC (with no external light source and the built-in light source disabled) Avg. 42 W @ 24 VDC (with external light source) Avg. 16.6 W @ 24 VDC (built-in light source is enabled) Max. 18 W @ 24 VDC (with no external light source and the built-in light source disabled) Max. 48 W @ 24 VDC (with external light source or the built-in light source enabled) |
| Lens mount | M12-mount, mechanical focus |
| Focal length | 16 mm |
| Light source | Red light, green light, blue light, white light (switching by software) |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) |
| Dimension | 77 mm × 98 mm × 115.7 mm (3.0" × 3.9" × 4.6") |
| Weight | Approx. 750 g (1.7 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Certification | CE, KC |
| Input voltage | 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

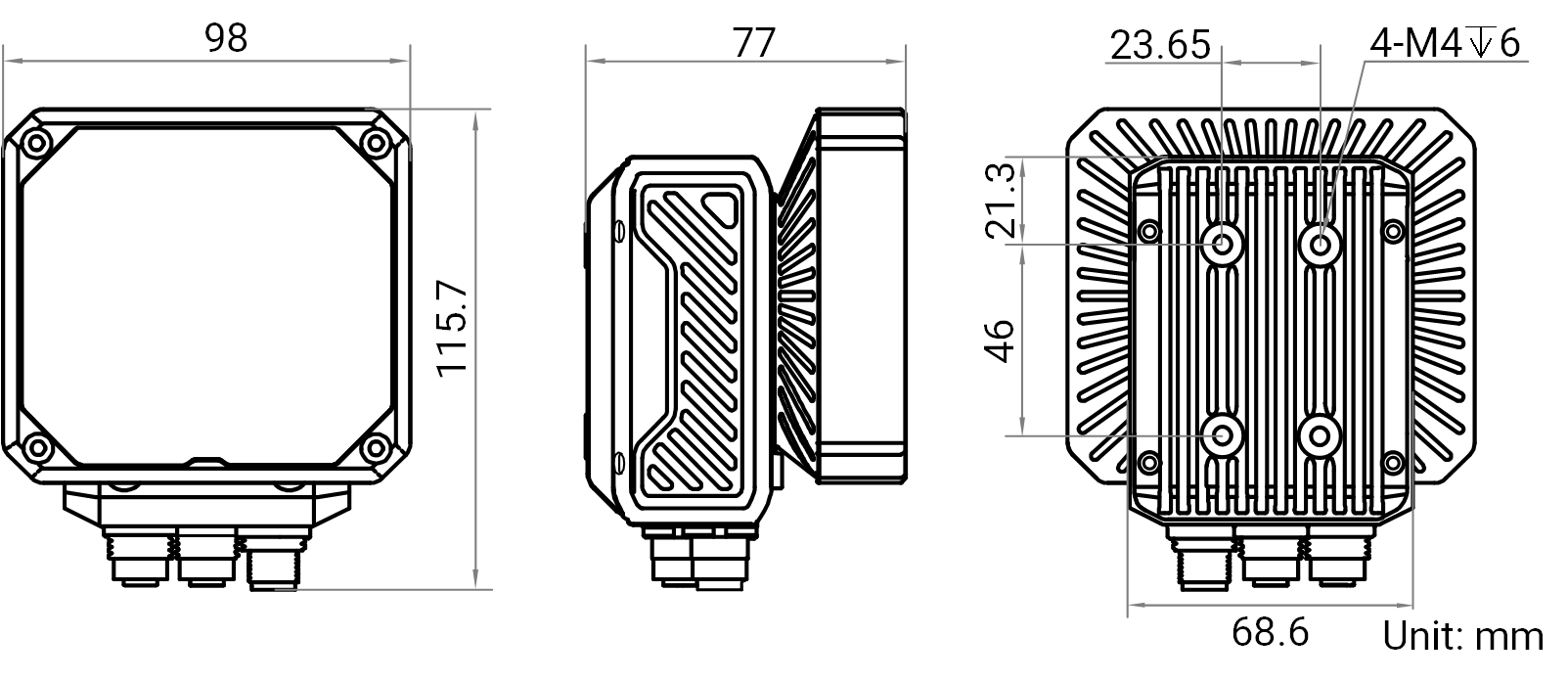

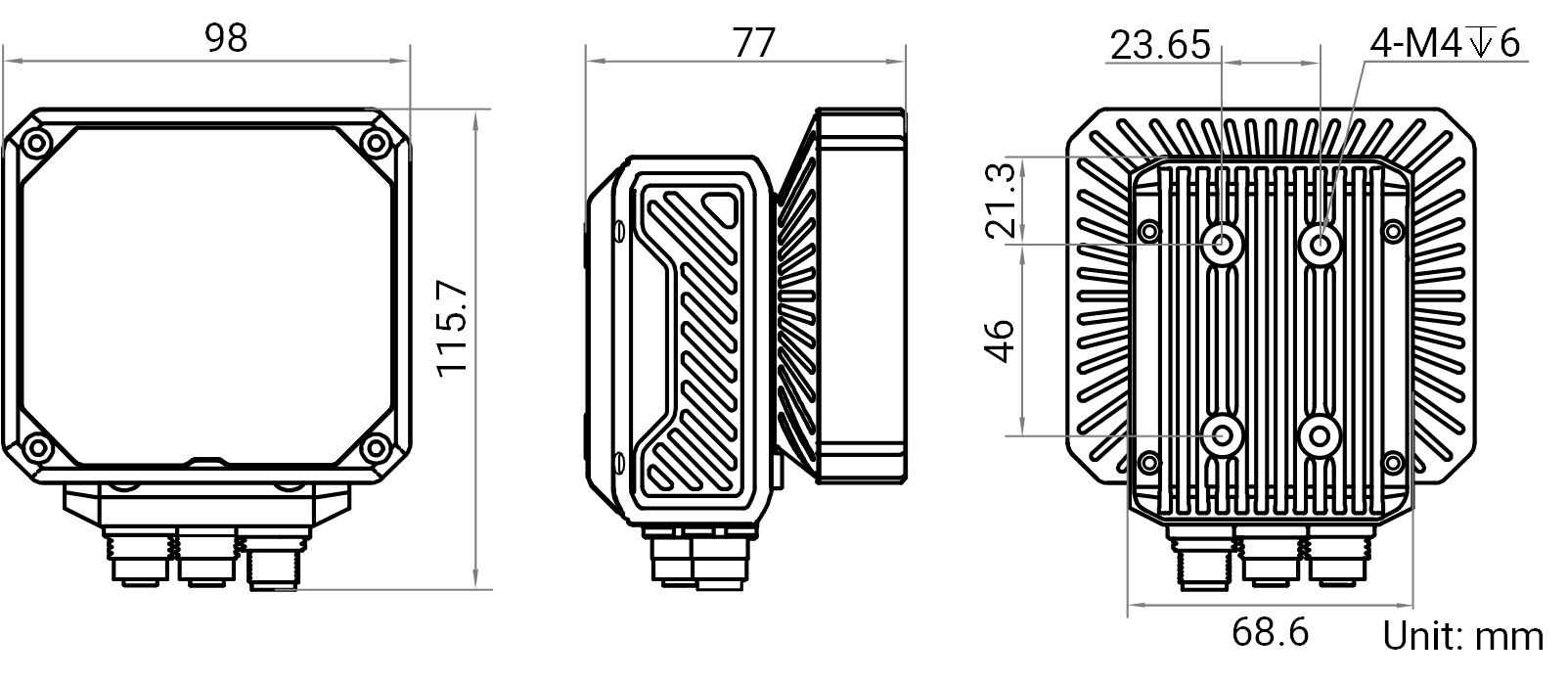

Dimensional drawing
