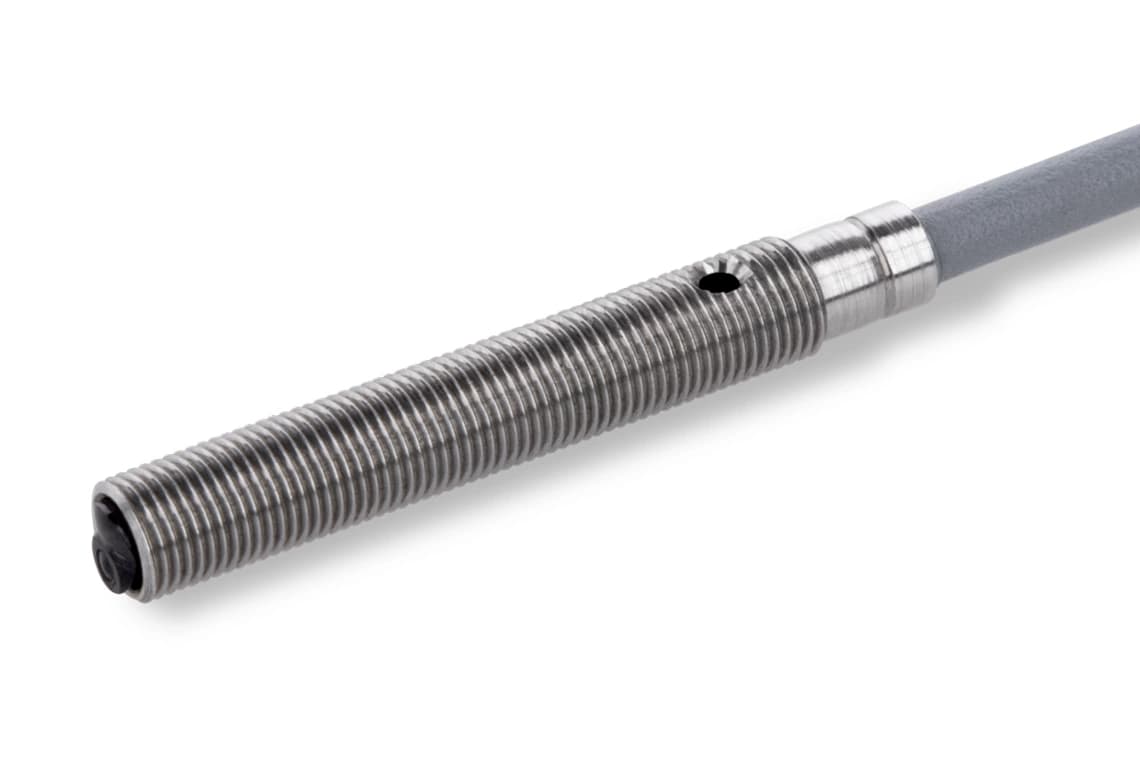

di-soric

OTM05-50PS-2R

Manufacturer part number: OTM05-50PS-2R

Sensor function: Diffuse sensor
Range: 0 – 50 mm
Light source: LED
Light color: Red
Design: Threaded barrel
Switching output: PNP
Switching function: Normally open (NO)
Connection: Cable, 2.0 m
Ingress protection: IP67

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OTM05-50PS-2R
Funktionsprinzip	Optical
Bauform	Threaded barrel
Gewinde	M5 x 0.5
Erfassungsbereich	0 … 50 mm
Normmessplatte	200 x 200 mm (white)
Schaltfrequenz	1000 Hz
Lichtquelle	LED
Wellenlänge	630 nm
Auswertung	digital
Schaltausgang	pnp, 100 mA, NO
LED Anzeige	LED yellow - switching output
Anschluss	Cable, 2.0 m
Betriebsspannung	10 … 30 V DC
Leerlaufstrom (max.)	15 mA
Spannungsfall (max.)	2 V
Verpolschutz	Yes
Schutzklasse	III, operation on safety extra-low voltage
Schutzart	IP 67
Umgebungstemperatur Betrieb	-25 … +65 °C
Gehäusematerial	Stainless steel (V4A)
Material	Plastic (window / optics)
Material Kabel	PUR
Gehäuselänge	35.8 mm
Gewicht	30 g
Funktionsprinzip	Diffuse sensor
Wellenlänge	Red
Serie	O-M5
IO-Link	No

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

Datasheet di-soric OTM05-50PS-2R
Datasheet · DE · 861 KB
Download datasheet

Description

The devices of the O-M5 series are di-soric's smallest diffuse sensors in a threaded barrel design. The sensors are characterized by precise object detection and are ideal for mounting where space is tight.

- Very small design

- Red light

- Preset sensing distance

- Stainless steel housing

- Can be mounted flush

- Wide temperature range
