di-soric

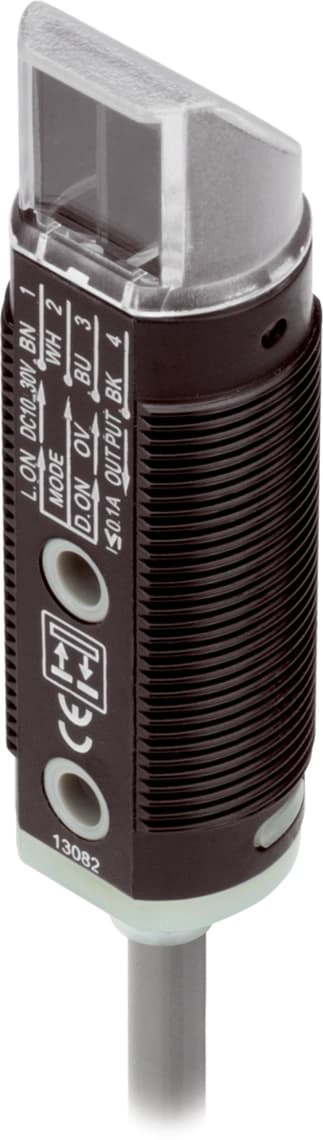

OT-18-FKR-320-P3

Manufacturer part number: OT-18-FKR-320-P3

Sensor function: Diffuse sensor
Range: 320 mm
Light source: LED
Light color: Infrared
Design: Threaded barrel, right-angle optics
Switching output: PNP
Switching function: NO/NC switchable
Connection: Cable, 2.0 m
Ingress protection: IP67

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OT-18-FKR-320-P3
Funktionsprinzip	Optical
Bauform	Threaded barrel, right-angle optics
Gewinde	M18 x 1
Erfassungsbereich	320 mm
Normmessplatte	200 x 200 mm
Schaltfrequenz	1000 Hz
Ansprechzeit	0.50 ms
Lichtquelle	LED
Wellenlänge	880 nm
Auswertung	digital
Schaltausgang	pnp, 100 mA, NO/NC
Anschluss	Cable, 2.0 m
Betriebsspannung	10 … 30 V DC
Leerlaufstrom (max.)	30 mA
Schutzklasse	III, operation on safety extra-low voltage
Schutzart	IP 67
Umgebungstemperatur Betrieb	-25 … +55 °C
Gehäusematerial	Plastic (ABS)
Material	PMMA (Fenster)
Material Kabel	PVC
Gehäuselänge	57.5 mm
Funktionsprinzip	Diffuse sensor
Wellenlänge	Infrared
Serie	O-M18 Standard
IO-Link	No

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

Datasheet di-soric OT-18-FKR-320-P3
Datasheet · DE · 3500 KB
Download datasheet

Description

The light barriers and diffuse sensors of the O-M18 Standard series are ideal devices for economical, cost-efficient applications. The sensors are available either in a straight design or with 90° right-angle optics. The plastic or metal housing is characterized by its short design.

- Right-angle optics

- Universal mounting options

- Shallow mounting depth

- Adjustable sensitivity

- LED switching status indicator

- Plastic housing
