di-soric

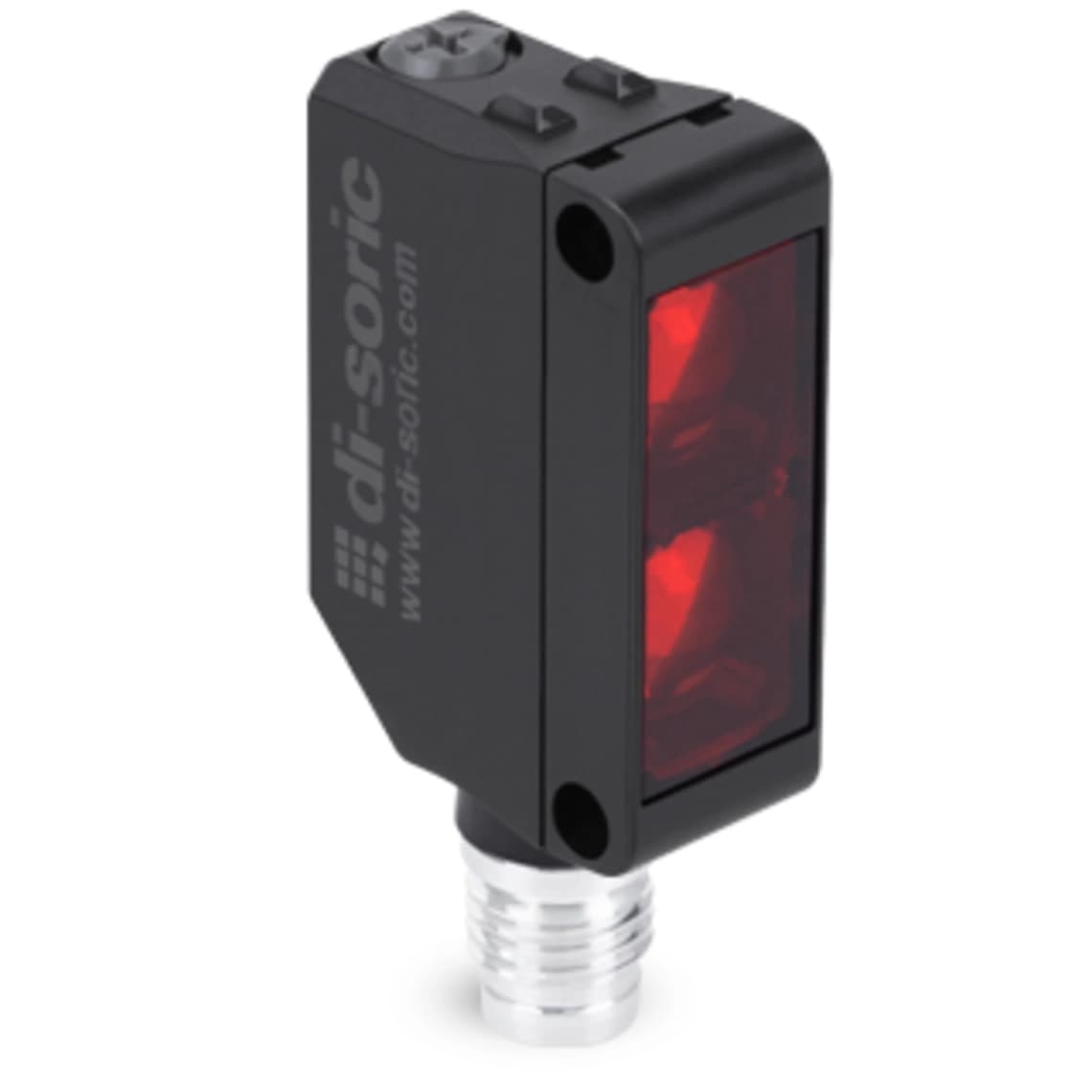

OH33-RSN-PT-G3-T4
Manufacturer part number: OH33-RSN-PT-G3-T4
- Sensor function
- Diffuse sensor with background suppression
- Range
- 20 – 250 mm
- Light source
- LED
- Light color
- Red
- Design
- Cuboid
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M8
- Interface
- IO-Link 1.1
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OH33-RSN-PT-G3-T4 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Cuboid |
| Erfassungsbereich | 20 … 250 mm |
| Normmessplatte | 200 x 200 mm (white) |
| Schaltfrequenz | 50 Hz … 500 Hz (50 Hz (PRECISION)) |
| Lichtquelle | LED |
| Wellenlänge | 620 nm |
| Auswertung | digital |
| Schaltausgang | Push-pull, 100 mA, NO/NC, switchable |
| Schnittstelle | IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) |
| LED Anzeige | LED green - Status, yellow - switching output 1 |
| Anschluss | Connector, M8, 4-pin |
| Betriebsspannung | 10 … 30 V DC |
| Leerlaufstrom (max.) | < 45 mA |
| Spannungsfall (max.) | 1 V |
| Verpolschutz | Yes |
| Kurzschlussschutz | Yes |
| Schutzklasse | III |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -25 … +60 °C |
| Gehäusematerial | Plastic |
| Material | Plastic (window / optics) |
| Gehäuselänge | 20 mm |
| Gewicht | 20 g |
| Funktionsprinzip | Diffuse sensor with background suppression |
| Wellenlänge | Red |
| Serie | O-33 Universell |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric OH33-RSN-PT-G3-T4
Datasheet · DE · 1178 KB
Description
The compact light barriers and diffuse sensors of the O-33 series in a rugged plastic housing with an IO-Link interface solve even the most demanding detection tasks reliably and precisely. Many sensors have an IO-Link interface and are available with either powerful laser or LED light sources, which provide a long range and a high functional reserve.
- Compact design
- Long range
- Ideal background suppression
- Push-pull output with pnp or npn function
- Switchable light-on / dark-on switching
- IO-Link
- Measuring function
- Sensing distance and window function configurable in mm
