di-soric

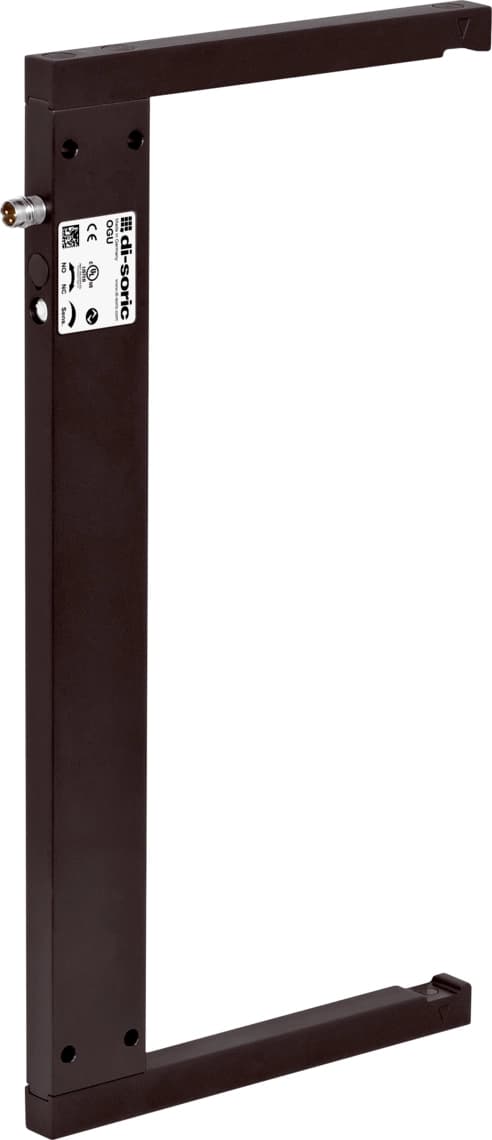

OGU-251-G3-T3
Manufacturer part number: OGU-251-G3-T3
- Sensor function
- Fork light barrier
- Fork width
- 250 mm
- Light source
- LED
- Light color
- Red
- Design
- Fork
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M8
- Interface
- IO-Link 1.1
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OGU-251-G3-T3 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Fork |
| Lichtquelle | LED |
| Auswertung | digital |
| Schaltausgang | Push-pull, 100 mA, NO/NC, switchable |
| Schnittstelle | IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) |
| Anschluss | Connector, M8, 3-pin |
| Betriebsspannung | 10 … 30 V DC |
| Leerlaufstrom (max.) | 30 mA |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -25 … +60 °C |
| Gehäusematerial | Aluminum (black, anodized) |
| Gehäuselänge | 140 mm |
| Produktgruppe | Fork light barrier |
| Gabelweite | 250 mm |
| Serie | OGU |
| Farbe | Red |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric OGU-251-G3-T3
Datasheet · DE · 1508 KB
Description
The OGU series with an LED light source is the standard among fork light barriers. The largest fork light barrier range on the market includes devices with fork widths from 5 to 250 mm. OGU fork light barriers offer high resolution and repeatability at outstanding speed. They are set intuitively using a potentiometer, teach-in or IO-Link. Four preset operating modes allow the sensor to be matched precisely to the application, while IO-Link provides important advantages for configuration and diagnostics.
More information
- 4 operating modes as IO-Link parameters
- Switch-on and switch-off delay as IO-Link parameters
- Diagnostics via IO-Link
- Metal housing
- Adjustable sensitivity
- High switching frequency
- Light-on / dark-on switching
- Bright ring LED
- High degree of protection
