di-soric

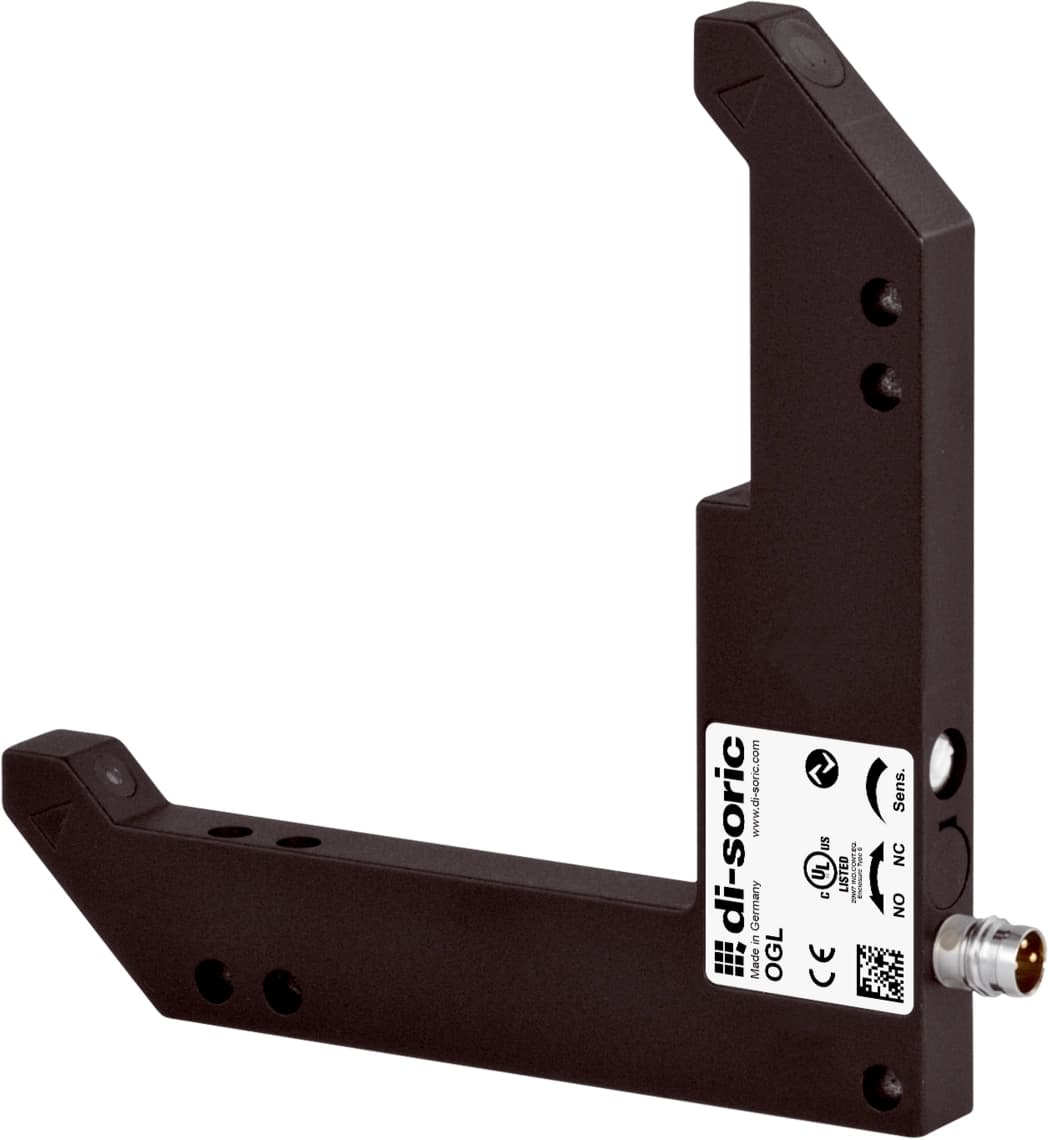

OGL-080-G3-T3
Manufacturer part number: OGL-080-G3-T3
- Sensor function
- Angle light barrier
- Range
- 100 mm
- Light source
- LED
- Light color
- Infrared
- Design
- Winkel
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M8
- Interface
- IO-Link 1.1
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OGL-080-G3-T3 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Winkel |
| Erfassungsbereich | 100 mm (optische Achse) |
| Lichtquelle | LED |
| Wellenlänge | 880 nm |
| Auswertung | digital |
| Schaltausgang | Push-pull, 100 mA, NO/NC, switchable |
| Schnittstelle | IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) |
| Anschluss | Connector, M8, 3-pin |
| Betriebsspannung | 10 … 30 V DC (Supply Class 2) |
| Leerlaufstrom (max.) | 30 mA |
| Spannungsfall (max.) | 1 V |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -25 … +60 °C |
| Gehäusematerial | Die-cast zinc (powder-coated) |
| Material | Mineral glass (optics) |
| Gehäuselänge | 105 mm |
| Produktgruppe | Angle light barrier |
| Wellenlänge | Infrared |
| Serie | OGL |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric OGL-080-G3-T3
Datasheet · DE · 1098 KB
Description
The OGL angle light barrier offers unrivaled performance and is easy to operate with a potentiometer. The OGL provides high resolution and repeatability at outstanding speed. It is set intuitively using a potentiometer or IO-Link. Four preset operating modes allow the sensor to be matched precisely to the application, while IO-Link provides important advantages for configuration and diagnostics.
Video
- 4 operating modes as IO-Link parameters
- Switch-on and switch-off delay as IO-Link parameters
- Diagnostics via IO-Link
- Metal housing
- Adjustable sensitivity
- High switching frequency
- Light-on / dark-on switching
- Bright ring LED
- High degree of protection
