di-soric

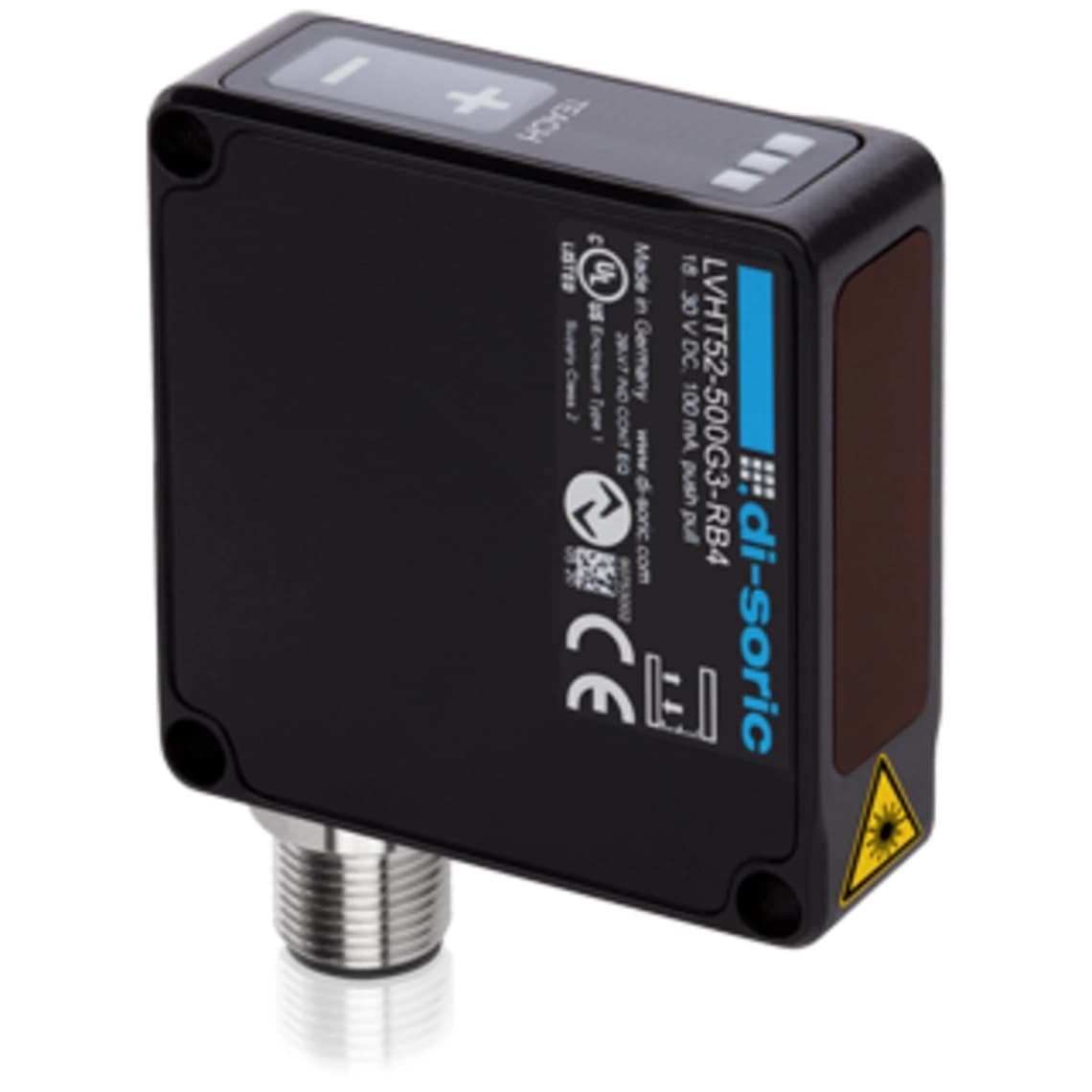

LVHT52-500G3-RB4
Manufacturer part number: LVHT52-500G3-RB4
- Sensor function
- Distance sensor
- Range
- 50 – 500 mm
- Light source
- Laser
- Light color
- Red
- Design
- Cuboid
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M12
- Interface
- IO-Link 1.1
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | LVHT52-500G3-RB4 |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Cuboid |
| Erfassungsbereich | 50 … 500 mm |
| Schaltfrequenz | 100 Hz (max. 600 Hz in sensor mode Speed without filter) |
| Lichtquelle | Laser |
| Wellenlänge | 650 nm (Pp < 0.65 mW t = 4 µs) |
| Schaltausgang | Push-pull (1x), 100 mA, NO/NC |
| Schnittstelle | IO-Link V1.1, COM2, Smart Sensor Profile |
| LED Anzeige | LED green - Status, yellow - switching output, red - weak signal |
| Anschluss | Connector, M12, 4-pin |
| Betriebsspannung | 18 … 30 V DC |
| Leerlaufstrom (max.) | 60 mA |
| Spannungsfall (max.) | 2 V |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | 0 … +50 °C |
| Gehäusematerial | Die-cast zinc (black, powder-coated) |
| Gehäuselänge | 51 mm |
| Gewicht | 102 g |
| Besonderheiten | Radialer Steckerabgang |
| Produktgruppe | Distance sensor |
| Wellenlänge | Red |
| Serie | LVHT-52 Kompakt |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric LVHT52-500G3-RB4
Datasheet · DE · 1 MB
Description
For applications that call for precise switching rather than measuring, the LVHT-52 with a detection range from 50 to 500 mm and a precisely adjustable window mode is a very efficient solution. Its highly intuitive setting via the plus/minus keys allows quick commissioning.
- IO-Link
- Accurate detection
- Wide detection range
- Foreground and background suppression
- Laser class 1
- Red laser with a small laser spot
- Easy operation
- Rugged metal housing
- Radial connector outlet
