di-soric

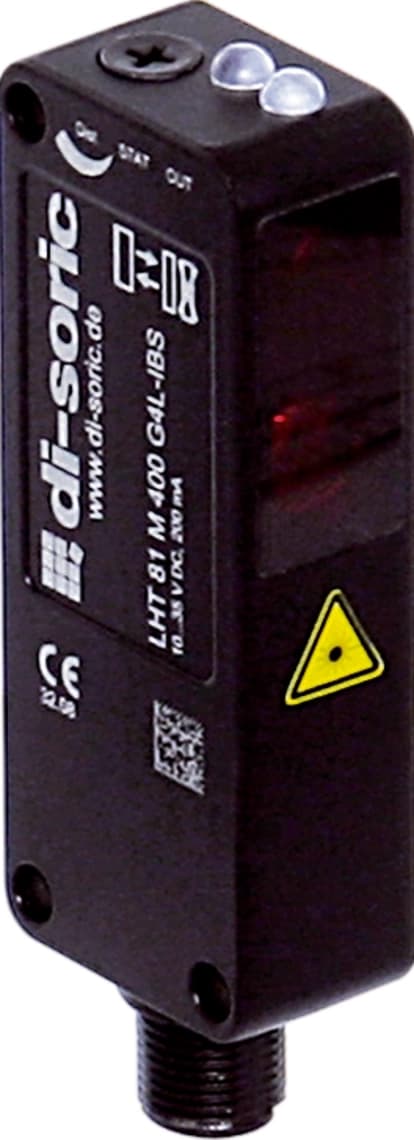

LHT-81-M-400-G4L-IBS
Manufacturer part number: LHT-81-M-400-G4L-IBS
- Sensor function
- Diffuse sensor with background suppression
- Range
- 40 – 400 mm
- Light source
- Laser
- Light color
- Red
- Design
- Cuboid
- Switching output
- Push-pull / Push-Pull
- Switching function
- NO/NC switchable
- Connection
- Connector, M12
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | LHT-81-M-400-G4L-IBS |
|---|---|
| Funktionsprinzip | Optical |
| Bauform | Cuboid |
| Schaltabstand (SN) | 400 … 800 mm als Lichttaster |
| Erfassungsbereich | 40 … 400 mm |
| Schalthysterese (max.) | 1 % |
| Schaltfrequenz | 1000 Hz |
| Lichtquelle | Laser |
| Wellenlänge | 650 nm (Pp < 1.8 mW t = 12 µs) |
| Auswertung | digital |
| Schaltausgang | Push-pull, 200 mA, NO/NC, antivalent |
| Anschluss | Connector, M12, 4-pin |
| Betriebsspannung | 10 … 35 V DC |
| Leerlaufstrom (max.) | 30 mA |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -20 … +60 °C |
| Gehäusematerial | Die-cast zinc (black, painted) |
| Material | Polycarbonat (Fenster) |
| Gehäuselänge | 30 mm |
| Funktionsprinzip | Diffuse sensor with background suppression |
| Wellenlänge | Red |
| Serie | O-81 Laser |
| IO-Link | No |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric LHT-81-M-400-G4L-IBS
Datasheet · DE · 4430 KB
Description
The laser diffuse sensors of the O-81 Laser series are used for the precise detection of objects by means of a red laser. The sensors can be adjusted precisely and are characterized by high resolution and functional reserve. The rugged devices with a metal housing and metal connector are operated intuitively using a potentiometer and an NO/NC selector.
- Mechanical background suppression
- Vibration-proof 6-turn adjustment for the finest settings
- Red laser with a small laser spot
- Push-pull output stage, pnp + npn
- High resolution, switching accuracy and switching frequency
- Functional reserve indicator
- Rugged metal housing
