di-soric

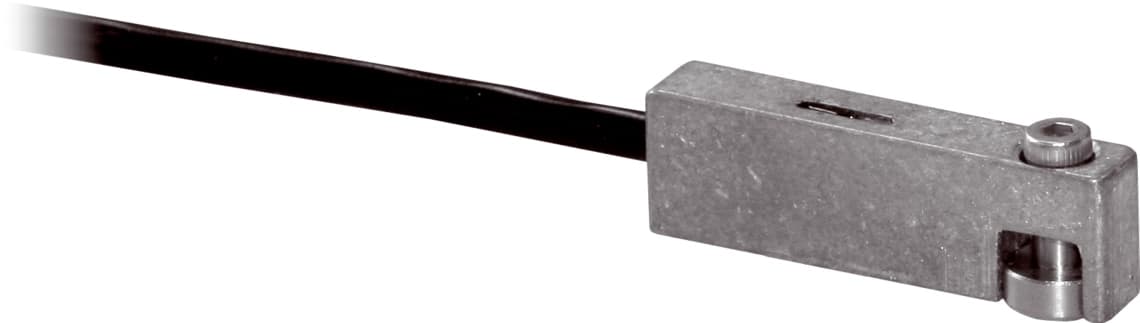

MZET-28-PSK-K-TSSL
Manufacturer part number: MZET-28-PSK-K-TSSL
- Sensor function
- Cylinder sensor
- Cylinder groove
- T-slot
- Switching output
- PNP
- Switching function
- Normally open (NO)
- Connection
- Pigtail, 0.3 m
- Housing material
- Die-cast zinc
- Ingress protection
- IP68
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MZET-28-PSK-K-TSSL |
|---|---|
| Funktionsprinzip | Magnetic field |
| Produktserie | MZET |
| Schaltfrequenz | 1000 Hz |
| Schaltausgang | pnp, 200 mA, NO, kurzschlussfest |
| LED Anzeige | LED yellow - output signal |
| Anschluss | Pigtail, 0.3 m, M8, 3-pin |
| Betriebsspannung | 10 … 30 V DC |
| Leerlaufstrom (max.) | 10 mA |
| Spannungsfall (max.) | 2 V |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 68 (Gerät und Kabel) / IP 67 (Anschlussstecker) |
| Umgebungstemperatur Betrieb | -25 … +70 °C |
| Gehäusematerial | Die-cast zinc |
| Material Kabel | PUR |
| Gehäuselänge | 28 mm |
| Produktgruppe | Cylinder sensor |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Description
Our cylinder sensors for the T-slot are designed for all common pneumatic cylinders with built-in magnets.
- Can be mounted from above
- Metal housing
- Mechanically weld-resistant
- Fully electronic
- High repeatability
