di-soric

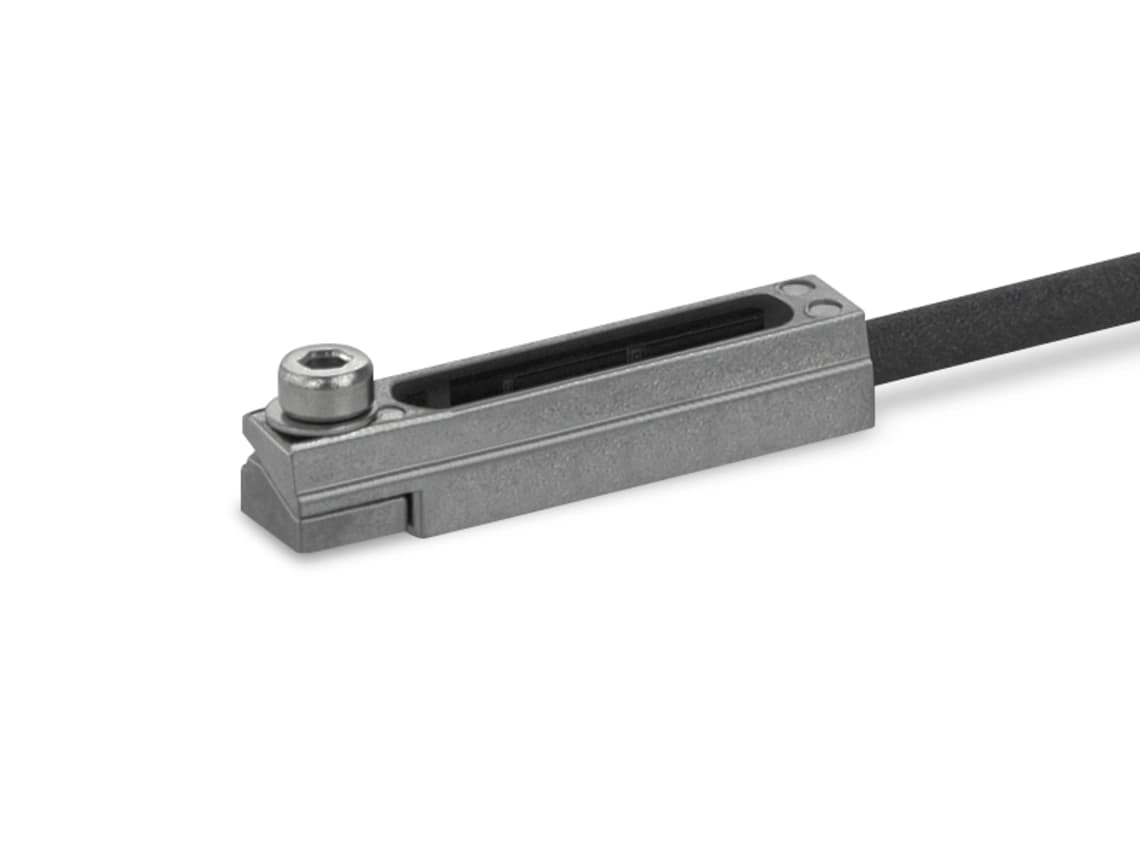

MZEK-25-PSK-K-TSSL
Manufacturer part number: MZEK-25-PSK-K-TSSL
- Sensor function
- Cylinder sensor
- Cylinder groove
- T-slot
- Switching output
- PNP
- Switching function
- Normally open (NO)
- Connection
- Pigtail, 0.3 m
- Housing material
- Die-cast zinc
- Ingress protection
- IP68
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MZEK-25-PSK-K-TSSL |
|---|---|
| Funktionsprinzip | Magnetic field |
| Produktserie | MZEK |
| Schaltfrequenz | 1000 Hz |
| Schaltausgang | pnp, 200 mA, NO, kurzschlussfest |
| LED Anzeige | LED yellow - output signal |
| Anschluss | Pigtail, 0.3 m, M8, 3-pin |
| Betriebsspannung | 10 … 30 V DC |
| Leerlaufstrom (max.) | 10 mA |
| Spannungsfall (max.) | 2 V |
| Isolationsspannungsfestigkeit | 500 V |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 68 (Gerät und Kabel) / IP 67 (Anschlussstecker) |
| Umgebungstemperatur Betrieb | -25 … +70 °C |
| Gehäusematerial | Die-cast zinc |
| Material Kabel | PUR |
| Gehäuselänge | 25 mm |
| Produktgruppe | Cylinder sensor |
| IO-Link | No |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric MZEK-25-PSK-K-TSSL
Datasheet · DE · 671 KB
Description
Our cylinder sensors for the T-slot are designed for all common pneumatic cylinders with built-in magnets.
- For pneumatic cylinders with a T-slot
- Metal housing
- Clamping wedge fixing, leaves no marks on the cylinder
- Can be readjusted precisely
- Fully electronic
- High degree of protection
- Accessories available for mounting on round, tie-rod and profile cylinders
