di-soric

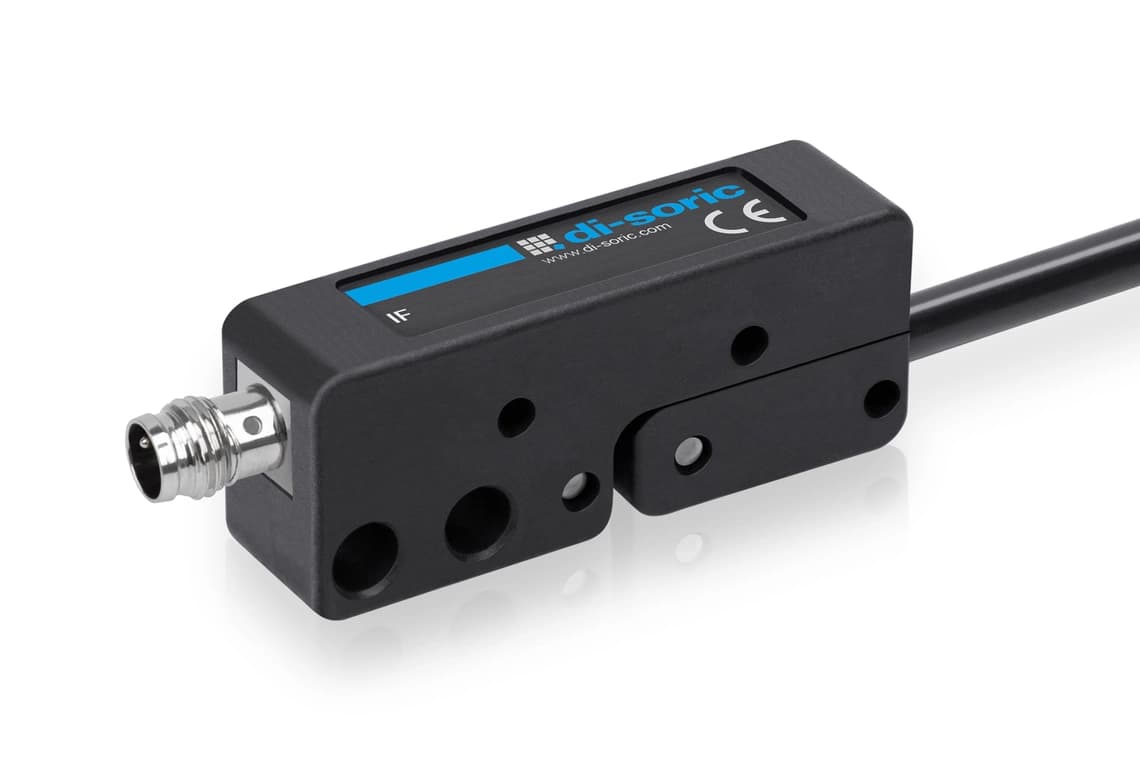

IF-300KK-B02PS-T3
Manufacturer part number: IF-300KK-B02PS-T3
- Sensor function
- Level sensor
- Switching output
- PNP
- Switching function
- Normally open (NO)
- Connection
- Connector, M8
- Housing material
- Plastic (Sondenmechanik)
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | IF-300KK-B02PS-T3 |
|---|---|
| Funktionsprinzip | Inductive |
| Produktserie | IF inductive level sensors |
| Bauform | Threaded barrel |
| Normmessplatte | 24 x 24 x 1 mm |
| Schalthysterese (max.) | < 10 % |
| Schaltfrequenz | 1000 Hz |
| Auswertung | digital |
| Schaltausgang | pnp, 200 mA, NO |
| LED Anzeige | Yes |
| Anschluss | Connector, M8, 3-pin, A-coded |
| Betriebsspannung | 10 … 30 V DC |
| Eigenstromaufnahme | 10 mA |
| Spannungsfall (max.) | 1.5 V DC |
| Isolationsspannungsfestigkeit | < 500 V DC |
| Schutzklasse | III, operation on safety extra-low voltage |
| Schutzart | IP 67 |
| Umgebungstemperatur Betrieb | -25 … +70 °C |
| Gehäusematerial | Plastic (Sondenmechanik) |
| Gehäuselänge | 64 mm |
| Produktgruppe | Level sensor |
| IO-Link | No |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Datasheet di-soric IF-300KK-B02PS-T3
Datasheet · DE · 715 KB
Description
Our inductive level sensors, also known as pendulum switches, detect the fill level of bulk material in vibrating and oscillating conveyors as well as in hopper systems precisely and efficiently. The innovative electronic-mechanical switch and the flexibly mounted pendulum handle mechanical influences with ease. The pendulum switches are available in rod lengths of 100, 200 and 300 mm and thus offer the flexibility to adapt them ideally to your requirements. The wear-free inductive switch ensures a long service life, while the integrated optical status indicator simplifies operation and monitoring.
- Reliable detection of bulk material in vibrating and oscillating conveyors
- Rugged construction suitable for mechanical loads
- Adaptable to your requirements with three rod lengths: 100, 200 and 300 mm
- Long service life thanks to a wear-free inductive switch
- Easy monitoring via the integrated optical status indicator
