OPT
OPT-RN17085-130-048820M90 M72/M72L/M90/M95 lens
Manufacturer part number: OPT-RN17085-130-048820M90
Series: Rhino-Bi-Telezentrik
- Objektivbauart
- Bi-telecentric
- Abbildungsmaßstab
- 1.7085 ×
- Objektfeld
- Ø 48 mm
- Arbeitsabstand
- 130 mm ± 2 mm
- Auflösungsvermögen
- 55 lp/mm
- Koaxiale Einkopplung
- No
- Mount
- M72/M72L/M90/M95
- Baulänge
- 458.79 mm
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-RN17085-130-048820M90 |
|---|---|
| Working Distance(mm) | 130 mm ± 2 mm |
| Aperture(F/#) | F10 – F44 |
| Magnification（X） | 1.7085 × |
| Coaxial | no |
| Image Circle Ø(mm) | Ø82 mm |
| Kleinste sinnvolle Pixelgröße | 9.09 µm |
| MTF30(lp/mm) | 55 lp/mm |
| Distortion | <0.007 % |
| Depth Of Field(mm) | 0.51 mm |
| Telecentricity | 0.10° |
| Flange Focal Distance(mm) | 12/19.55 |
| Object To Image Distance(mm) | 600.7 mm |
| Mount | M72/M72L/M90/M95 |
| Field Of View∅(mm) | 48 mm |
| Objektivbauart | Bi-telecentric |
| Gewicht | 4.67 kg |
| Abmessungen | 132 × 458.79 |
| Betriebstemperatur | -20 °C – +60 °C |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

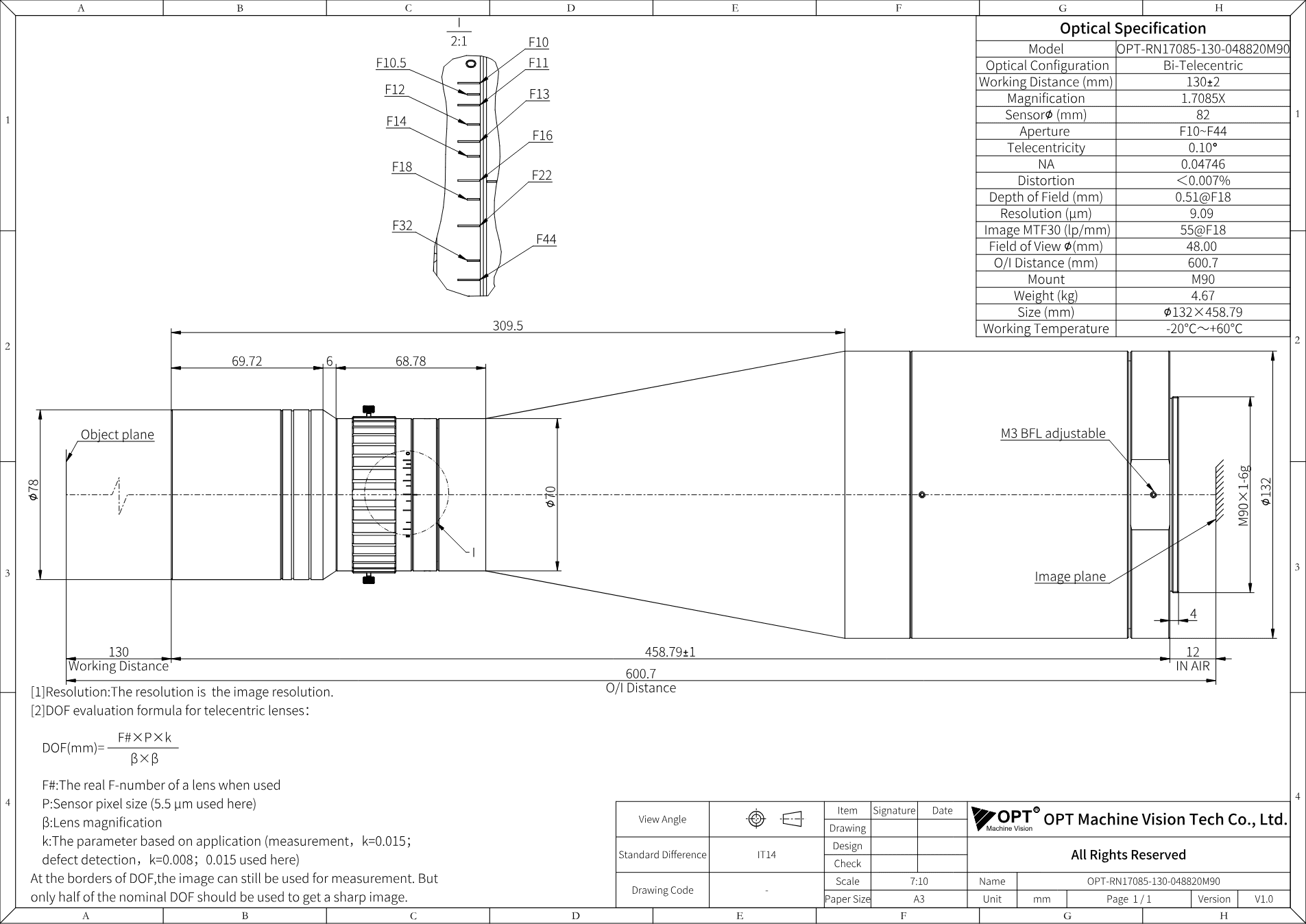

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-RN17085-130-048820M90* (PDF)
Datasheet · EN · 213 KB
- Download
3D-Modell OPT-RN17085-130-048820M90* (STEP)
Technical drawing · EN · 2 MB
More variants in this series
- OPT-RN09013-130-048432M58 M42/M58/F lens
- OPT-RN09111-245-090820M90 M72/M72L/M90/M95 lens
- OPT-RN09606-171-064620M72 M42/M58/F/M72/M72L lens
- OPT-RN10142-115-042432M58 M42/M58/F lens
- OPT-RN10192-198-080820M90 M72/M72L/M90/M95 lens
- OPT-RN11074-138-056620M72 M42/M58/F/M72/M72L lens
- OPT-RN11322-187-072820M90 M72/M72L/M90/M95 lens
- OPT-RN11961-110-036432M58 M42/M58/F lens
- OPT-RN12698-171-064820M90 M72/M72L/M90/M95 lens
- OPT-RN12925-130-048620M72 M42/M58/F/M72/M72L lens
- OPT-RN14544-115-042620M72 M42/M58/F/M72/M72L lens
- OPT-RN14638-138-056820M90 M72/M72L/M90/M95 lens
Description
The OPT-RN17085-130-048820M90 is listed in OPT's series “Rhino Bi-Telecentric” with magnification 1.7085 ×, aperture F10 - F44, image circle Ø82 mm. In addition: working distance 130 mm ± 2 mm, M72/M72L/M90/M95, telecentricity 0.10°.
The Rhino series is telecentric on both sides: perspective and focus errors disappear, and the object is imaged at its true size. Large apertures bring plenty of light onto the sensor, and the field of view ranges, depending on the model, from Ø36 to Ø150 mm - for sensors from 1/2.5" to Ø82 mm. It is made for metrology: edges, holes, contours and height offsets that must be measured regardless of the object's position.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
