OPT-RN05377-198-080432M58 M42/M58/F lens
Manufacturer part number: OPT-RN05377-198-080432M58
Series: Rhino-Bi-Telezentrik
- Objektivbauart
- Bi-telecentric
- Abbildungsmaßstab
- 0.5377 ×
- Objektfeld
- Ø 80.34 mm
- Arbeitsabstand
- 198 mm ± 3 mm
- Auflösungsvermögen
- 115 lp/mm
- Koaxiale Einkopplung
- No
- Mount
- M42/M58/F
- Baulänge
- 381.17 mm
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-RN05377-198-080432M58 |
|---|---|
| Working Distance(mm) | 198 mm ± 3 mm |
| Aperture(F/#) | F8.0 – F32 |
| Magnification（X） | 0.5377 × |
| Coaxial | no |
| Image Circle Ø(mm) | Ø43.2 mm |
| Kleinste sinnvolle Pixelgröße | 4.35 µm |
| MTF30(lp/mm) | 115 lp/mm |
| Distortion | <0.07 % |
| Depth Of Field(mm) | 2.28 mm |
| Telecentricity | 0.10° |
| Flange Focal Distance(mm) | 12 mm |
| Object To Image Distance(mm) | 591.2 mm |
| Mount | M42/M58/F |
| Field Of View∅(mm) | 80.34 mm |
| Objektivbauart | Bi-telecentric |
| Gewicht | 3.88 kg |
| Abmessungen | 123 × 381.17 |
| Betriebstemperatur | -20 °C – +60 °C |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

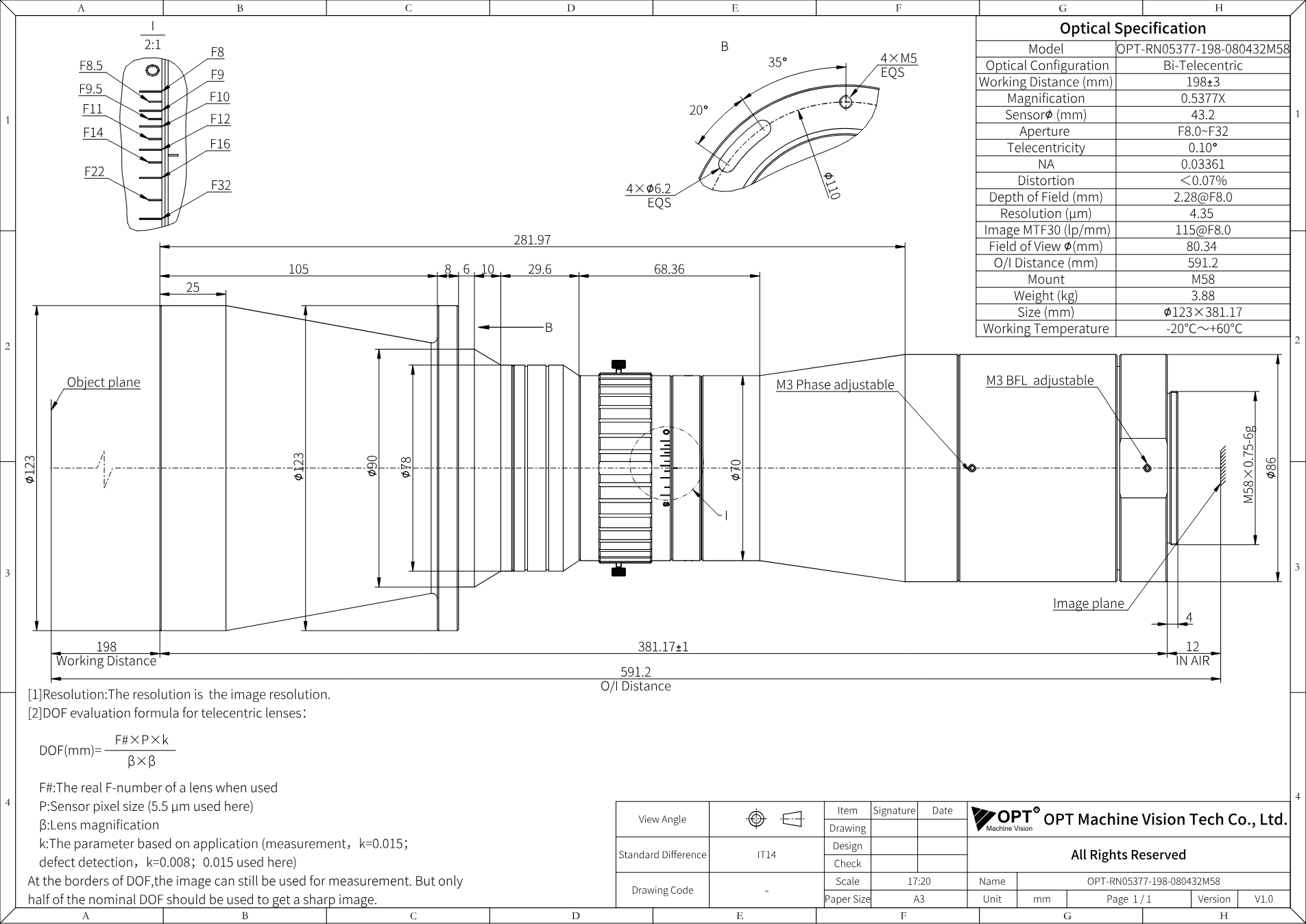

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-RN05377-198-080432M58* (PDF)
Datasheet · EN · 225 KB
- Download
3D-Modell OPT-RN05377-198-080432M58* (STEP)
Technical drawing · EN · 1 MB
More variants in this series
- OPT-RN04420-110-036160C C-Mount lens
- OPT-RN04465-171-064287M42 M42/M58/F lens
- OPT-RN04807-245-090432M58 M42/M58/F lens
- OPT-RN05091-110-036184C C-Mount lens
- OPT-RN05145-138-056287M42 M42/M58/F lens
- OPT-RN05176-270-120620M72 M42/M58/F/M72/M72L lens
- OPT-RN05492-318-150820M90 M72/M72L/M90/M95 lens
- OPT-RN05973-187-072432M58 M42/M58/F lens
- OPT-RN06006-130-048287M42 M42/M58/F lens
- OPT-RN06226-223-100620M72 M42/M58/F/M72/M72L lens
- OPT-RN06699-171-064432M58 M42/M58/F lens
- OPT-RN06758-115-042287M42 M42/M58/F lens
Description
The OPT-RN05377-198-080432M58 is listed in OPT's series “Rhino Bi-Telecentric” with magnification 0.5377 ×, aperture F8.0 - F32, image circle Ø43.2 mm. In addition: working distance 198 mm ± 3 mm, M42/M58/F, telecentricity 0.10°.
The Rhino series is telecentric on both sides: perspective and focus errors disappear, and the object is imaged at its true size. Large apertures bring plenty of light onto the sensor, and the field of view ranges, depending on the model, from Ø36 to Ø150 mm - for sensors from 1/2.5" to Ø82 mm. It is made for metrology: edges, holes, contours and height offsets that must be measured regardless of the object's position.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
