OPT-HP20-65-F7 C-Mount lens
Manufacturer part number: OPT-HP20-65-F7
Series: Hippo-Telezentrik
- Objektivbauart
- Object-side telecentric
- Abbildungsmaßstab
- 2 ×
- Max. Sensorformat
- 1.1"
- Objektfeld
- Ø 9.2 mm at 1.1"
- Arbeitsabstand
- 65 mm ± 2 mm
- Auflösungsvermögen
- 130 lp/mm
- Koaxiale Einkopplung
- No
- Mount
- C-Mount
- Baulänge
- 151.1 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-HP20-65-F7 |
|---|---|
| Working Distance(mm) | 65 mm ± 2 mm |
| Magnification（X） | 2.0 × |
| Image Circle Ø(mm) | Ø18.4 mm (1.1") |
| Aperture(F/#) | F7.0 |
| Distortion(%Max) | <0.1 % |
| Depth Of Field(mm) | 0.14 mm |
| MTF30(lp/mm) | 130 lp/mm |
| Telecentricity | 0.10° |
| Object To Image Distance(mm) | 233.6 mm |
| Weight(kg) | 0.46 kg |
| Field Of View∅(mm) | 9.20 mm |
| Coaxial | no |
| Mount | C-Mount |
| Flange Focal Distance(mm) | 17.526 mm |
| Objektivbauart | Object-side telecentric |
| Max. Sensorformat | 1.1" |
| Abmessungen | 45 × 151.1 |
| Filtergewinde | M35×0.5-6H |
| Betriebstemperatur | -20 °C – +60 °C |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

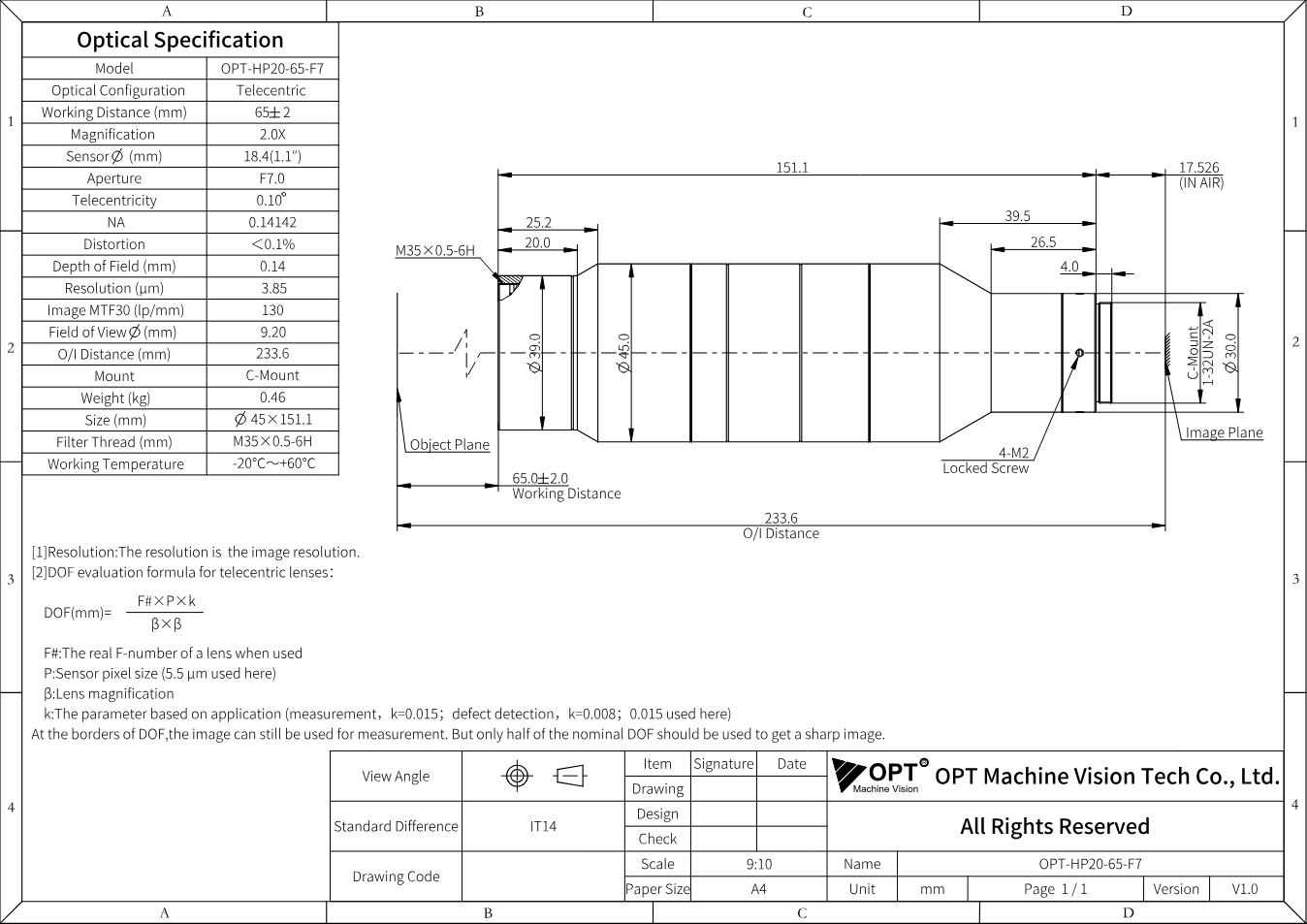

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-HP20-65-F7 (PDF)
Datasheet · EN · 262 KB
- Download datasheet
Optische Daten (MTF) OPT-HP20-65-F7
Datasheet · EN · 1500 KB
- Download
3D-Modell OPT-HP20-65-F7 (STEP)
Technical drawing · EN · 218 KB
Description
OPT-HP20-65-F7, a telecentric lens of the series “Hippo Telecentric” by OPT, comes with magnification 2.0 ×, aperture F7.0, image circle Ø18.4 mm (1.1"). Further key data: working distance 65 mm ± 2 mm, C-Mount, telecentricity 0.10°.
The Hippo series brings telecentric measuring optics to large sensors up to 1.1": high resolution, low distortion and magnifications from 0.3 to 4×. Models with built-in coaxial illumination are available. It is intended for measuring tasks with 12 to 20 megapixel cameras in which a large field is measured in a single image.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
