OPT
OPT-HP05-110-F11 C-Mount lens
Manufacturer part number: OPT-HP05-110-F11
Series: Hippo-Telezentrik
- Objektivbauart
- Object-side telecentric
- Abbildungsmaßstab
- 0.5 ×
- Max. Sensorformat
- 1.1"
- Objektfeld
- Ø 36.8 mm at 1.1"
- Arbeitsabstand
- 110 mm ± 2 mm
- Auflösungsvermögen
- 90 lp/mm
- Koaxiale Einkopplung
- No
- Mount
- C-Mount
- Baulänge
- 157.1 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-HP05-110-F11 |
|---|---|
| Working Distance(mm) | 110 mm ± 2 mm |
| Aperture(F/#) | F11 |
| Magnification（X） | 0.5 × |
| Coaxial | no |
| Image Circle Ø(mm) | Ø18.4 mm (1.1") |
| Kleinste sinnvolle Pixelgröße | 5.5 µm |
| MTF30(lp/mm) | 90 lp/mm |
| Distortion(%Max) | <0.2 % |
| Depth Of Field(mm) | 3.63 mm |
| Telecentricity | 0.10° |
| Flange Focal Distance(mm) | 17.526 mm |
| Object To Image Distance(mm) | 284.6 mm |
| Mount | C-Mount |
| Field Of View∅(mm) | 36.80 mm |
| Objektivbauart | Object-side telecentric |
| Max. Sensorformat | 1.1" |
| Gewicht | 0.52 kg |
| Abmessungen | 60 × 157.1 |
| Filtergewinde | M56×0.75-6H |
| Betriebstemperatur | -20 °C – +60 °C |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

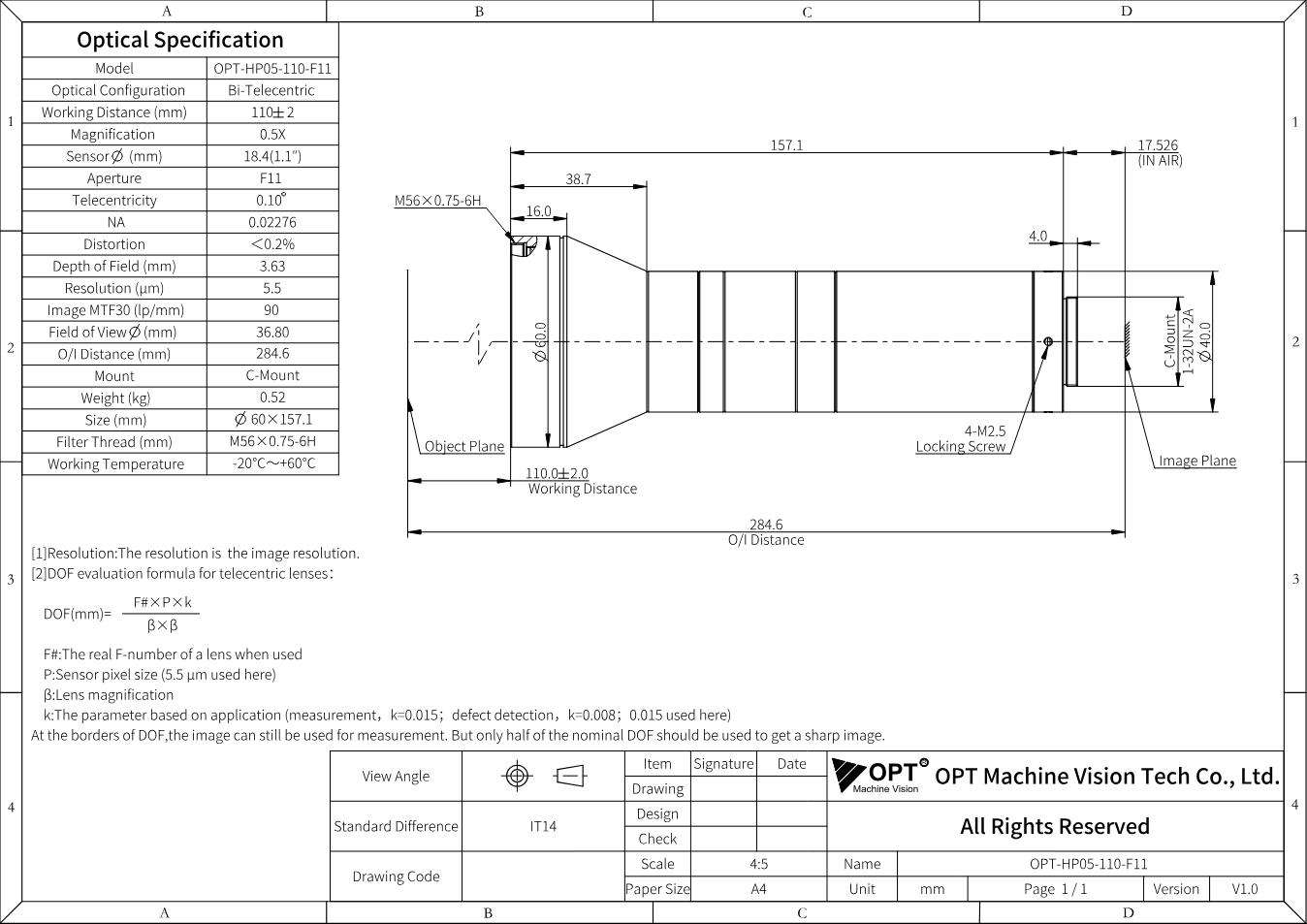

Dimensional drawing
