OPT-CH20-65-F11 C-Mount lens
Manufacturer part number: OPT-CH20-65-F11
Series: Cheetah-Telezentrik
- Objektivbauart
- Object-side telecentric
- Abbildungsmaßstab
- 2 ×
- Max. Sensorformat
- 2/3"
- Objektfeld
- Ø 5.5 mm at 2/3"
- Arbeitsabstand
- 65 mm ± 2 mm
- Auflösungsvermögen
- 90 lp/mm
- Koaxiale Einkopplung
- No
- Mount
- C-Mount
- Baulänge
- 117.1 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CH20-65-F11 |
|---|---|
| Working Distance(mm) | 65 mm ± 2 mm |
| Aperture(F/#) | F11 |
| Magnification（X） | 2.0 × |
| Coaxial | no |
| Image Circle Ø(mm) | Ø11 mm (2/3") |
| MTF30(lp/mm) | 90 lp/mm |
| Distortion(%Max) | <0.1 % |
| Depth Of Field(mm) | 0.23 mm |
| Telecentricity | 0.10° |
| Flange Focal Distance(mm) | 17.526 mm |
| Object To Image Distance(mm) | 199.6 mm |
| Mount | C-Mount |
| Field Of View∅(mm) | 5.50 mm |
| Lens Type | Telecentric |
| Max. Sensorformat | 2/3" |
| Gewicht | 0.28 kg |
| Abmessungen | 37.0 × 117.1 |
| Filtergewinde | M34×0.5-6H |
| Betriebstemperatur | -20 °C – +60 °C |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

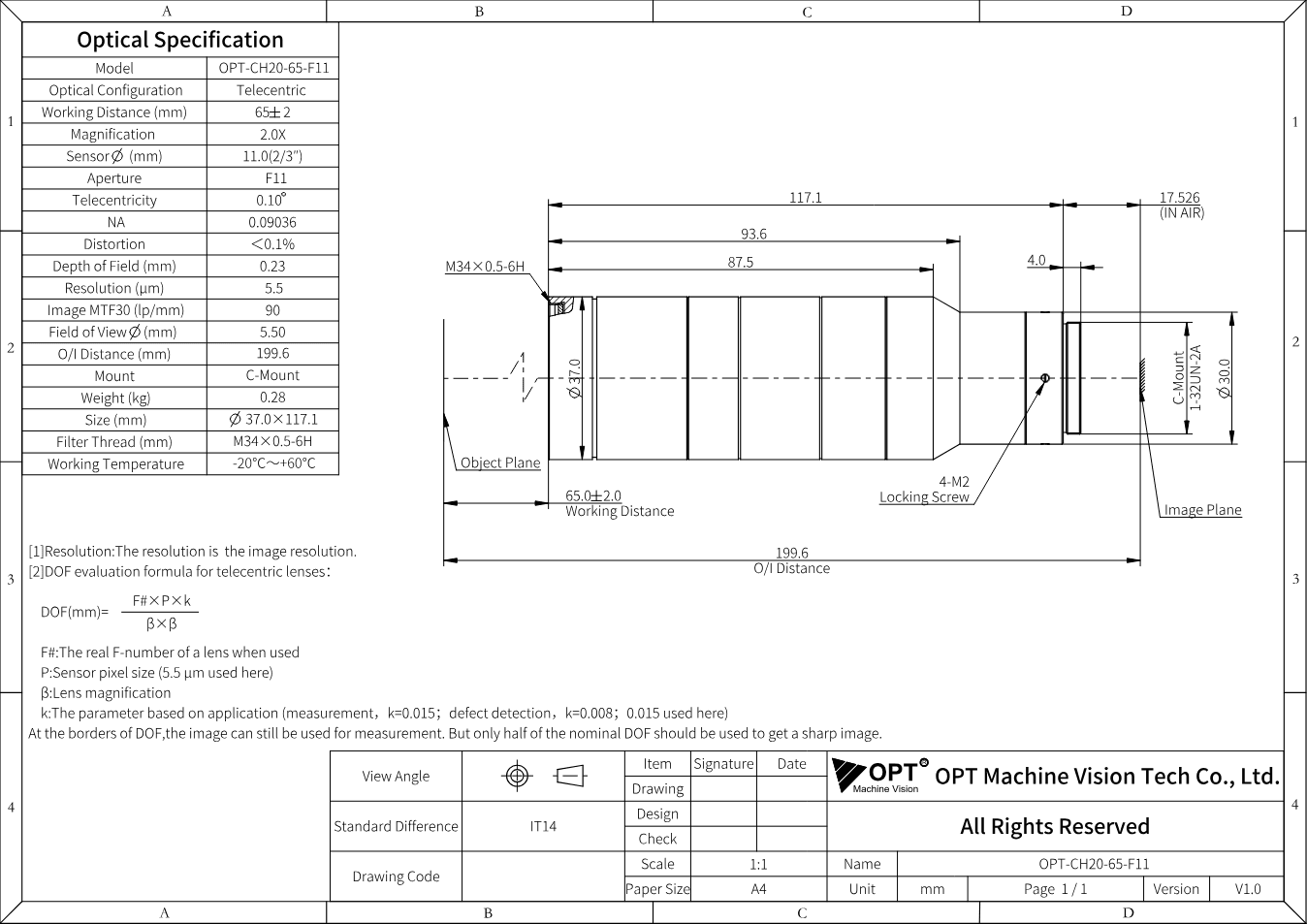

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-CH20-65-F11 (PDF)
Datasheet · EN · 339 KB
- Download datasheet
Optische Daten (MTF) OPT-CH20-65-F11
Datasheet · EN · 1499 KB
- Download
3D-Modell OPT-CH20-65-F11 (STEP)
Technical drawing · EN · 230 KB
Description
OPT-CH20-65-F11 is a telecentric lens from the series “Cheetah Telecentric” by OPT: magnification 2.0 ×, aperture F11, image circle Ø11 mm (2/3"). In addition: working distance 65 mm ± 2 mm, C-Mount, telecentricity 0.10°.
The Cheetah series is OPT's broad telecentric range for 2/3" sensors with five megapixels: magnifications from 0.3 to 2.0×, large apertures for short exposure times, high telecentricity and high contrast. Many models are available with coaxial light coupling (C variants). It is the workhorse of optical metrology: diameters, distances, edges and hole patterns that must be measured exactly regardless of distance.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
