OPT-CH100-55-VI Telezentrisches Messobjektiv von OPT

OPT

OPT-CH100-55-VI Telezentrisches lens

Manufacturer part number: OPT-CH100-55-VI

Series: Cheetah-Telezentrik

Objektivbauart
Bi-telecentric
Abbildungsmaßstab
10 ×
Max. Sensorformat
2/3"
Objektfeld
Ø 1.1 mm at 2/3"
Arbeitsabstand
55 mm ± 2 mm
Auflösungsvermögen
45 lp/mm
Mount
C-Mount
Baulänge
187.92 mm

Price and availability on request

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part numberOPT-CH100-55-VI
Working Distance(mm)55 mm ± 2 mm
Aperture(F/#)F21.5 – F260
Magnification（X）10.0 ×
Image Circle Ø(mm)Ø11.0 mm (2/3")
Kleinste sinnvolle Pixelgröße11.1 µm
MTF30(lp/mm)45 lp/mm
Distortion(%Max)<0.05 %
Depth Of Field(mm)0.02 – 0.21 mm
Telecentricity0.10°
Object To Image Distance(mm)260.4 mm
Weight(kg)0.40 kg
Field Of View∅(mm)1.10 mm
Lens TypeBitelezentrisch
Max. Sensorformat2/3"
AnschlussC-Mount
Abmessungen41 × 187.92

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

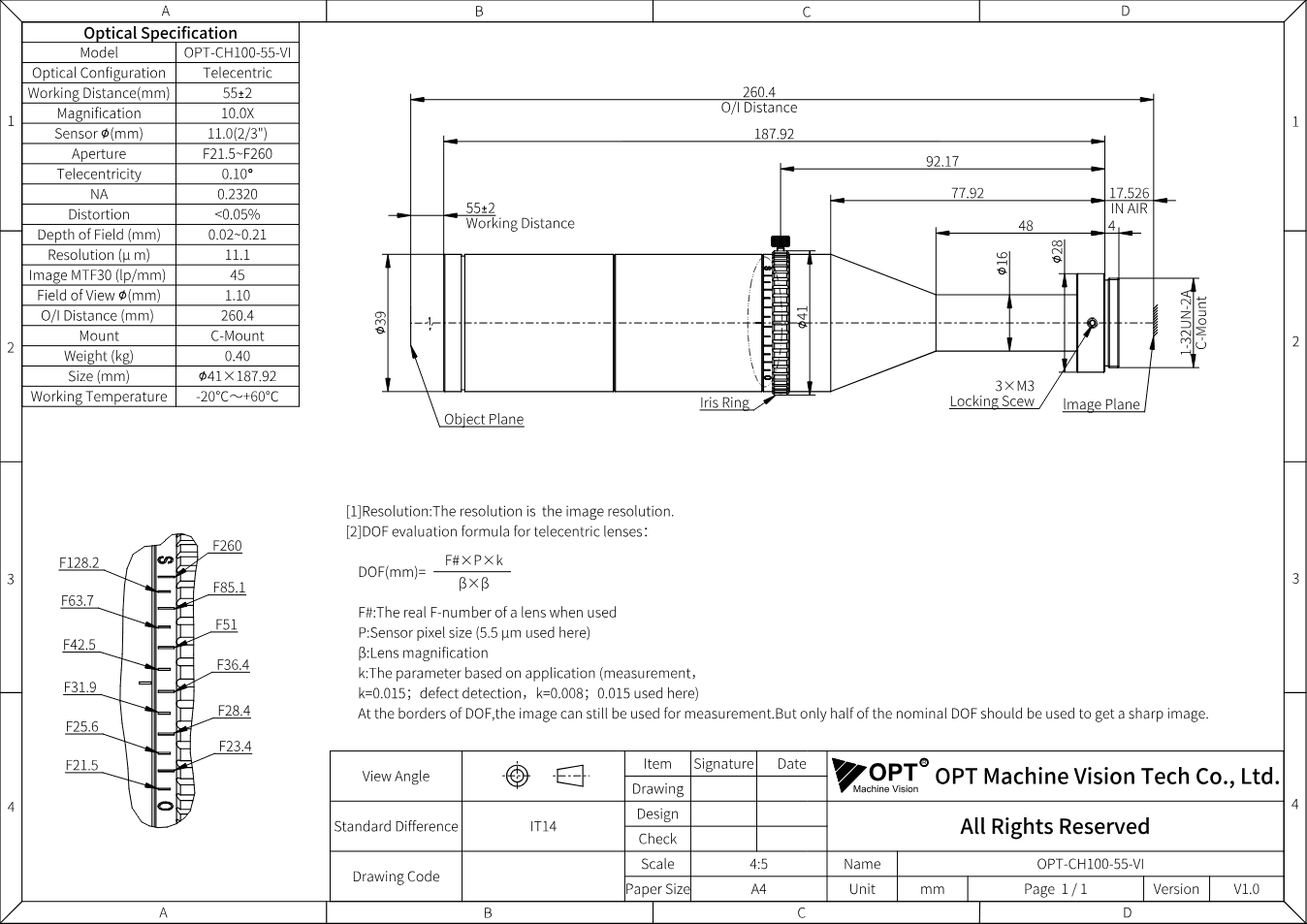

Dimensional drawing

Maßzeichnung OPT-CH100-55-VI

Documents

Description

With magnification 10.0 ×, aperture F21.5 - F260, image circle Ø11.0 mm (2/3"), OPT-CH100-55-VI belongs to the series “Cheetah Telecentric” by OPT Machine Vision. Further key data: working distance 55 mm ± 2 mm, telecentricity 0.10°.

The Cheetah series is OPT's broad telecentric range for 2/3" sensors with five megapixels: magnifications from 0.3 to 2.0×, large apertures for short exposure times, high telecentricity and high contrast. Many models are available with coaxial light coupling (C variants). It is the workhorse of optical metrology: diameters, distances, edges and hole patterns that must be measured exactly regardless of distance.

When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing is included.
