OPT-CH10-110FC-F11 C-Mount lens
Manufacturer part number: OPT-CH10-110FC-F11
Series: Cheetah-Telezentrik
- Objektivbauart
- Object-side telecentric
- Abbildungsmaßstab
- 1 ×
- Max. Sensorformat
- 2/3"
- Objektfeld
- 11.0(2/3")
- Arbeitsabstand
- 110 mm ± 2 mm
- Auflösungsvermögen
- 90 lp/mm
- Koaxiale Einkopplung
- Yes
- Mount
- C-Mount
- Baulänge
- 109.9 mm
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CH10-110FC-F11 |
|---|---|
| Working Distance(mm) | 110 mm ± 2 mm |
| Aperture(F/#) | F11 |
| Magnification（X） | 1.0 × |
| Coaxial | yes |
| Image Circle Ø(mm) | Ø11 mm (2/3") |
| Distortion(%Max) | <0.1 % |
| Depth Of Field(mm) | 0.91 mm |
| Field Of View (mm×mm) | 11.0(2/3") / 11 mm |
| Flange Focal Distance(mm) | 17.526 mm |
| Object To Image Distance(mm) | 237.4 mm |
| Mount | C-Mount |
| Lens Type | Telecentric |
| Max. Sensorformat | 2/3" |
| Auflösungsvermögen | 5.5 µm |
| Gewicht | 0.25 kg |
| Abmessungen | 36 × 109.9 |
| Filtergewinde | M34×0.5-6H |
| Betriebstemperatur | 0 °C – +40 °C |
| Telezentrie | 0.10° |
| MTF30 | 90 lp/mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

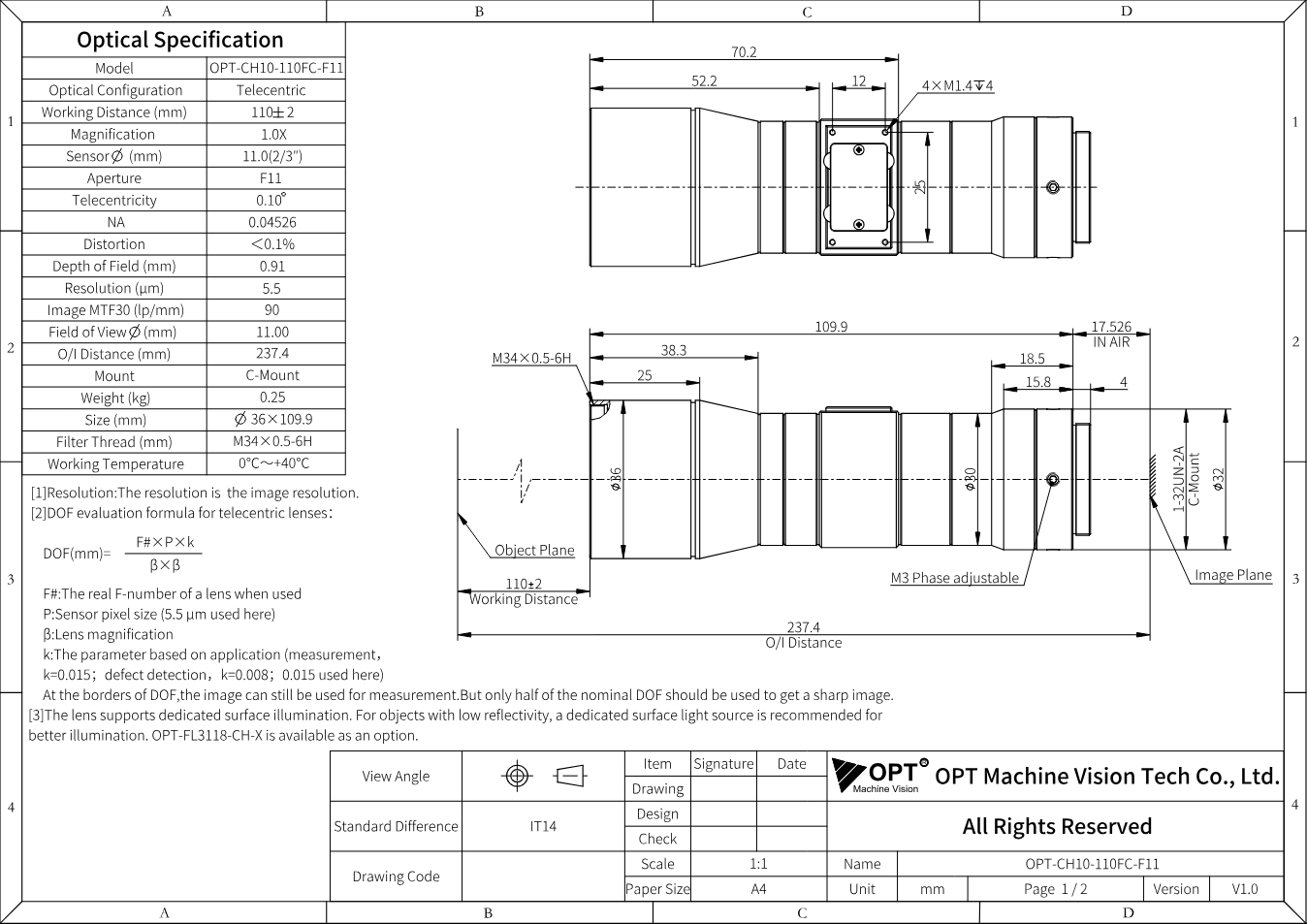

Dimensional drawing
