OPT-CH03-110FC-F8 C-Mount lens
Manufacturer part number: OPT-CH03-110FC-F8
Series: Cheetah-Telezentrik
- Objektivbauart
- Object-side telecentric
- Abbildungsmaßstab
- 0.3 ×
- Max. Sensorformat
- 2/3"
- Objektfeld
- Ø 36.67 mm at 2/3"
- Arbeitsabstand
- 110 mm ± 2 mm
- Auflösungsvermögen
- 120 lp/mm
- Koaxiale Einkopplung
- Yes
- Mount
- C-Mount
- Baulänge
- 133.3 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CH03-110FC-F8 |
|---|---|
| Working Distance(mm) | 110 mm ± 2 mm |
| Aperture(F/#) | F8 |
| Magnification（X） | 0.3 × |
| Coaxial | yes |
| Image Circle Ø(mm) | Ø11.0 mm (2/3") |
| Distortion(%Max) | <0.1 % |
| Depth Of Field(mm) | 7.33 mm |
| Telecentricity | 0.10° |
| Flange Focal Distance(mm) | 17.526 mm |
| Object To Image Distance(mm) | 260.8 mm |
| Mount | C-Mount |
| Field Of View∅(mm) | 36.67 mm |
| Lens Type | Telecentric |
| Max. Sensorformat | 2/3" |
| Auflösungsvermögen | 4.2 µm |
| Gewicht | 0.31 kg |
| Abmessungen | 52.0 × 133.3 |
| Filtergewinde | M49×0.5-6H |
| Betriebstemperatur | 0 °C – +40 °C |
| MTF30 | 120 lp/mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

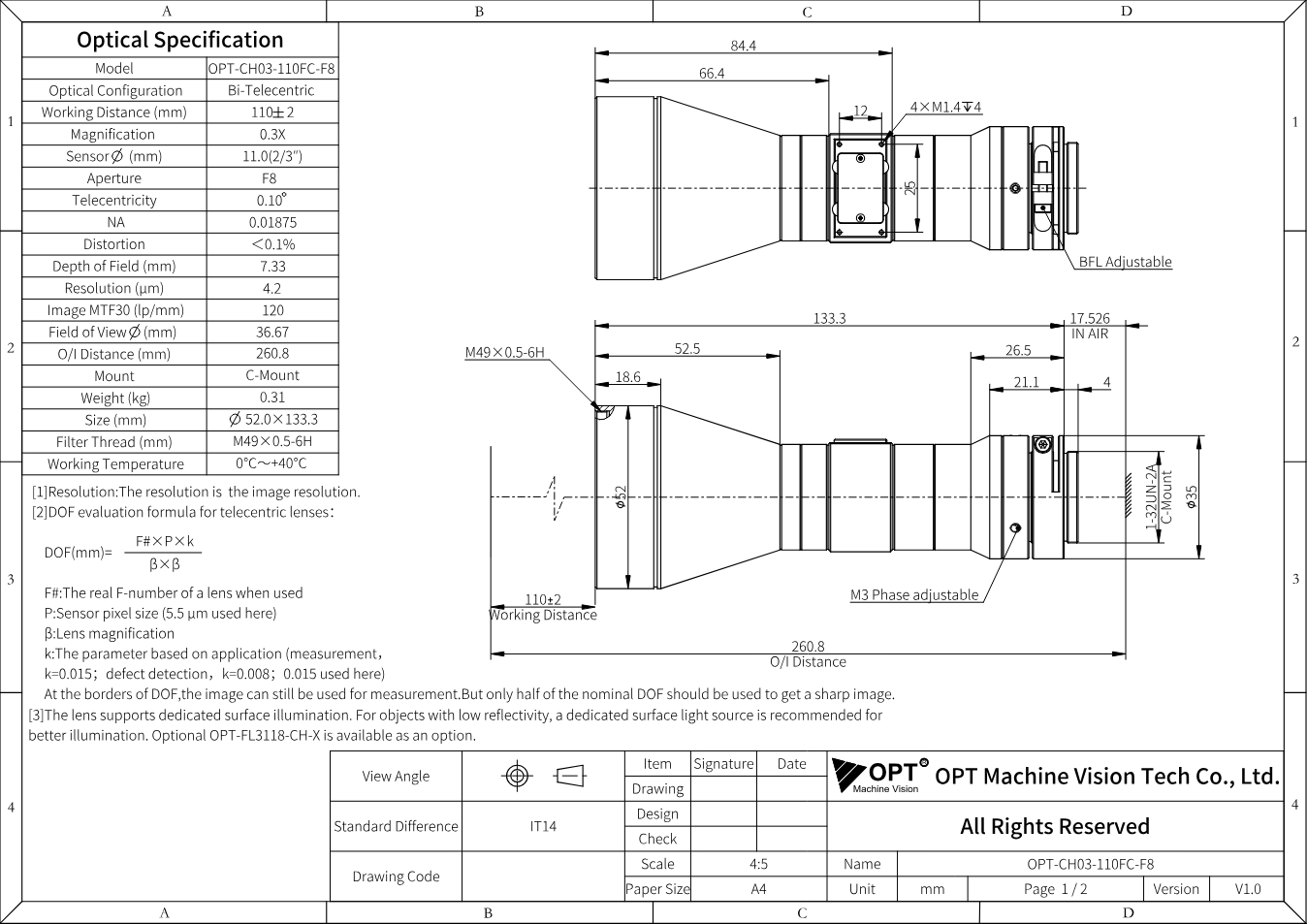

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-CH03-110FC-F8 (PDF)
Datasheet · EN · 626 KB
- Download datasheet
Optische Daten (MTF) OPT-CH03-110FC-F8
Datasheet · EN · 1499 KB
- Download
3D-Modell OPT-CH03-110FC-F8 (STEP)
Technical drawing · EN · 1286 KB
Description
With magnification 0.3 ×, aperture F8, image circle Ø11.0 mm (2/3"), OPT-CH03-110FC-F8 belongs to the series “Cheetah Telecentric” by OPT Machine Vision. Also: working distance 110 mm ± 2 mm, C-Mount, telecentricity 0.10°.
The Cheetah series is OPT's broad telecentric range for 2/3" sensors with five megapixels: magnifications from 0.3 to 2.0×, large apertures for short exposure times, high telecentricity and high contrast. Many models are available with coaxial light coupling (C variants). It is the workhorse of optical metrology: diameters, distances, edges and hole patterns that must be measured exactly regardless of distance.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
