OPT
OPT-COBR1616B C-Mount lens
Manufacturer part number: OPT-COBR1616B
Series: Cobra Ruggedized
- Max. Sensorformat
- 2/3"
- Mount
- C-Mount
- Aperture
- F16
- Fokusbereich (ab Objektivvorderseite)
- 100 mm up to ∞
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-COBR1616B |
|---|---|
| Aperture(F/#) | F16 |
| Sensor ∅(mm) | Ø11 mm (2/3") |
| Working Distance(mm) | 100 mm – ∞ |
| Mount | C-Mount |
| Brennweite | Nicht angegeben |
| Max. Sensorformat | 2/3" |
| Auflösung | Nicht angegeben |
| Pixelgröße | Nicht angegeben |
| Mindestobjektdistanz (MOD) | Nicht angegeben |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | Nicht angegeben |
| Filtergewinde | Nicht angegeben |
| Blendensteuerung | Nicht zutreffend |
| Vibrationsfest | Nicht angegeben |
| Baulänge | Nicht angegeben |
| Durchmesser | Nicht angegeben |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Description
OPT-COBR1616B, a fixed focal length lens of the series “Cobra Ruggedized” by OPT, comes with aperture F16, image circle Ø11 mm (2/3"), working distance 100 mm - ∞. Also: C-Mount.
Cobra Ruggedized is the vibration-resistant version of the Cobra series: fixed aperture, bonded lens groups and a housing under Ø26 × 42.6 mm. Shocks and continuous vibration shift neither focus nor optical axis; the resolution stays at up to 200 lp/mm for sensors up to 2/3". Intended for robots, vehicles, presses and anything that vibrates - wherever an adjustable lens would need readjusting after a short time.

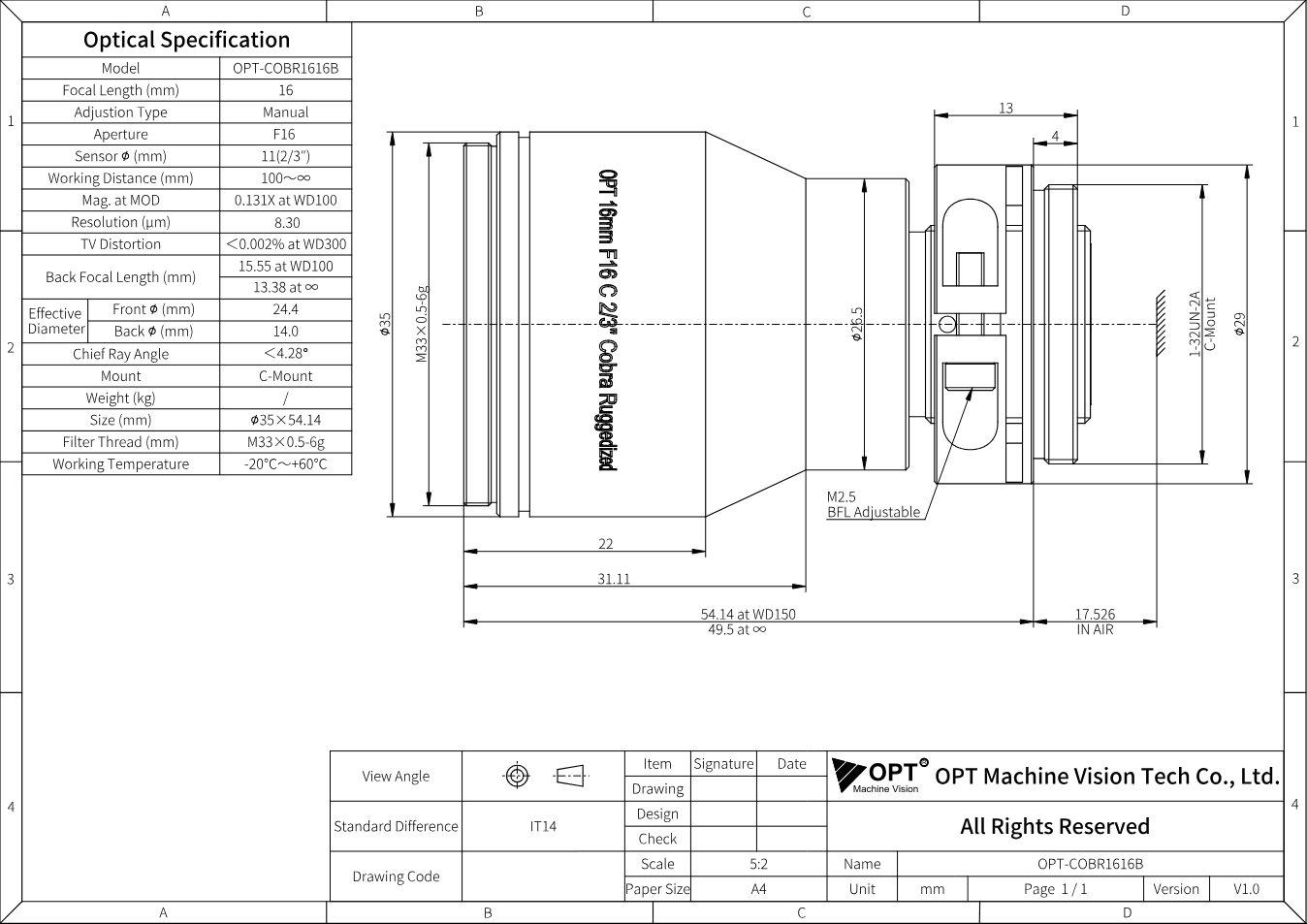

When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
