OPT-C0420-2M C-Mount lens
Manufacturer part number: OPT-C0420-2M
Series: 2-MP-Festbrennweiten
- Focal length
- 4 mm
- Max. Sensorformat
- 1/3" | 1/2.5" | 1/2" (5 µm)
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 100 mm
- Aperture
- F2.0 - F16
- Filtergewinde
- M30.5 × 0.5
- Resolution
- 2 MP
- Fokusbereich (ab Objektivvorderseite)
- 100 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-C0420-2M |
|---|---|
| Resolution (MP) | 2 MP |
| Mount | C-Mount |
| Sensor Format | 1/3" | 1/2.5" | 1/2" |
| Focal Length(mm) | 4 mm |
| Image Resolution(µm) | 5 µm |
| Adjustion Type | manuell |
| Aperture(F/#) | F2.0 – F16 |
| Distortion | <1.6 % |
| Back Focal Length(mm) | 9.14 mm |
| Size(mm) | Ø34.5 × 43.6 |
| Filter Thread | M30.5×0.5 |
| Working Temperature | -20 °C – +60 °C |
| Field Angle | 1/3": D 72.4°, H 60.6°, V 47.2° | 1/2": D 88.2°, H 76°, V 60.6° |
| Working Distance(mm) | 100 mm – ∞ |
| Magnification（X） | 0 – 0.040 × |
| Coaxial | no |
| Image Circle Ø(mm) | Ø8 mm (1/2") |
| Max. Field Of View（H*V） | 62.2°×48.6° | 71.4°×56.3° | 76.2°×61.6° |
| Flange Focal Distance(mm) | 17.526 mm |
| Max. Sensorformat | 1/3" | 1/2.5" | 1/2" |
| Auflösung | 2 MP |
| Pixelgröße | 5 µm |
| Mindestobjektdistanz (MOD) | 100 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 1.6 % |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | No |
| Baulänge | 43.6 mm |
| Durchmesser | Ø 34.5 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

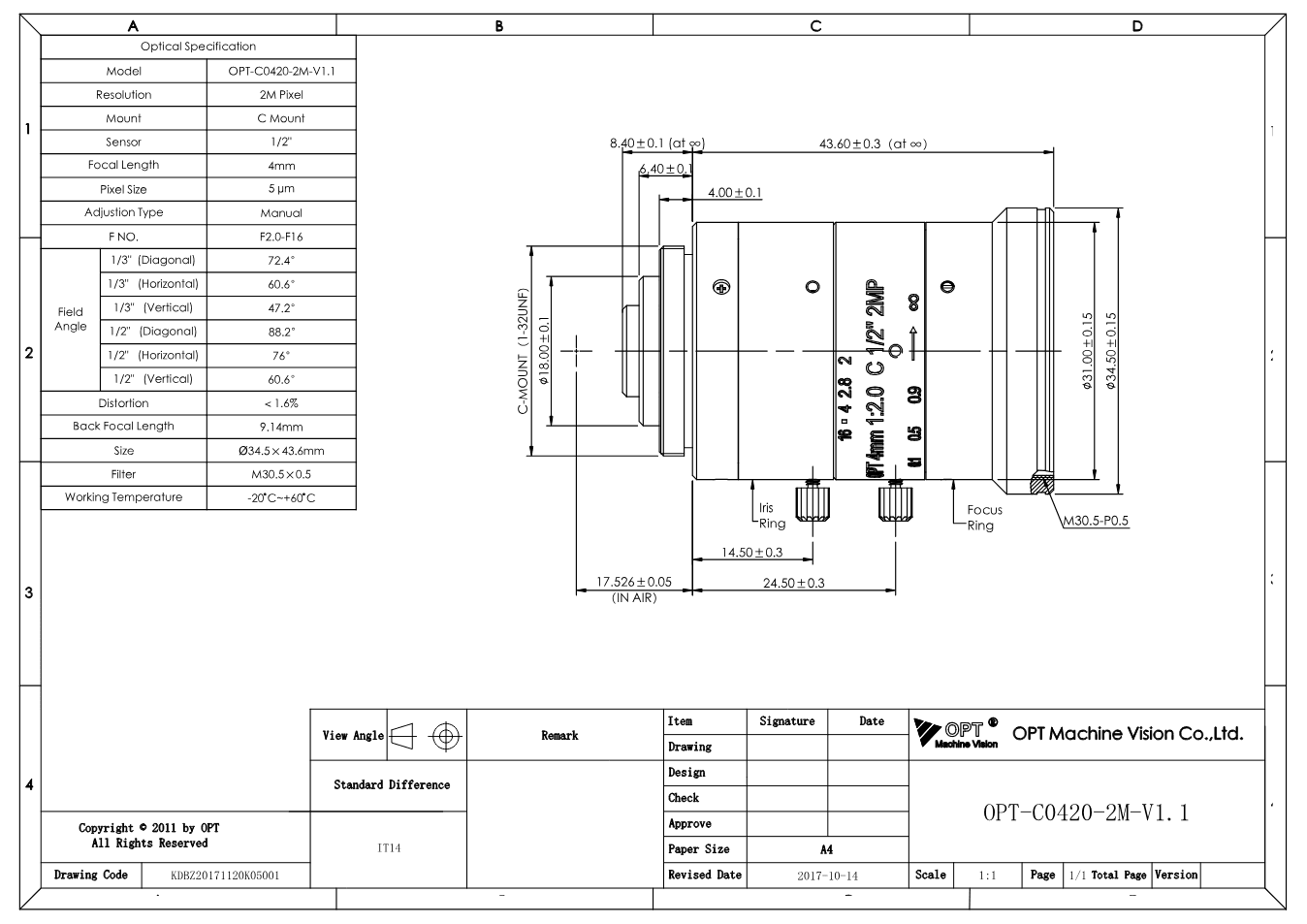

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-C0420-2M (PDF)
Datasheet · EN · 192 KB
- Download datasheet
Optische Daten (MTF) OPT-C0420-2M
Datasheet · EN · 265 KB
- Download datasheet
2-MP-Festbrennweiten - Serienbroschüre OPT
Datasheet · EN · 2 MB
- Download
3D-Modell OPT-C0420-2M (STEP)
Technical drawing · EN · 3 MB
More variants in this series
Description
With focal length 4 mm, aperture F2.0 - F16, image circle Ø8 mm (1/2"), OPT-C0420-2M belongs to the series “2 MP Fixed Focal Length Lenses” by OPT Machine Vision. Also: working distance 100 mm - ∞, C-Mount.
The 2 MP series is OPT's entry level among the fixed focal length lenses: compact C-Mount lenses with lockable focus and aperture rings, designed for cameras with pixels from 5.5 µm and sensors up to 2/3". The illumination is uniform, and vignetting stays low. They are used where a robust standard lens is enough: presence checks, position detection, simple code reading and monitoring of assembly stations.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
