HIKROBOT
lens MVL-MF2528M-8MP
Manufacturer part number: MVL-MF2528M-8MP · 310100629
- Focal length
- 25 mm
- Max. Sensorformat
- 2/3"
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 100 mm
- Aperture
- F2.8 - F16
- Filtergewinde
- M27 × 0.5
- Resolution
- 8 MP
- Fokuseinstellung
- Manual
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-MF2528M-8MP |
|---|---|
| Focal length | 25 mm |
| Max. sensor format | 2/3" |
| Resolution | 8 MP |
| Pixel size | 2.7 µm (calculated) |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Minimum object distance | 0.1 m |
| F-number | F2.8 to F16 |
| Field of view | D (11.1 mm): 23.23°; H (8.45 mm): 17.78°; V (7.07 mm): 14.91° |
| Optical distortion | 0.01 % |
| Image size | Ø11 mm (2/3") |
| Filter thread | M27 × 0.5 |
| Iris control | Manual |
| Focus control | Manual |
| Vibration resistant | Yes |
| Length | 38.59 mm |
| Diameter | Ø30 mm |
| Weight | 60.8 g (0.1 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

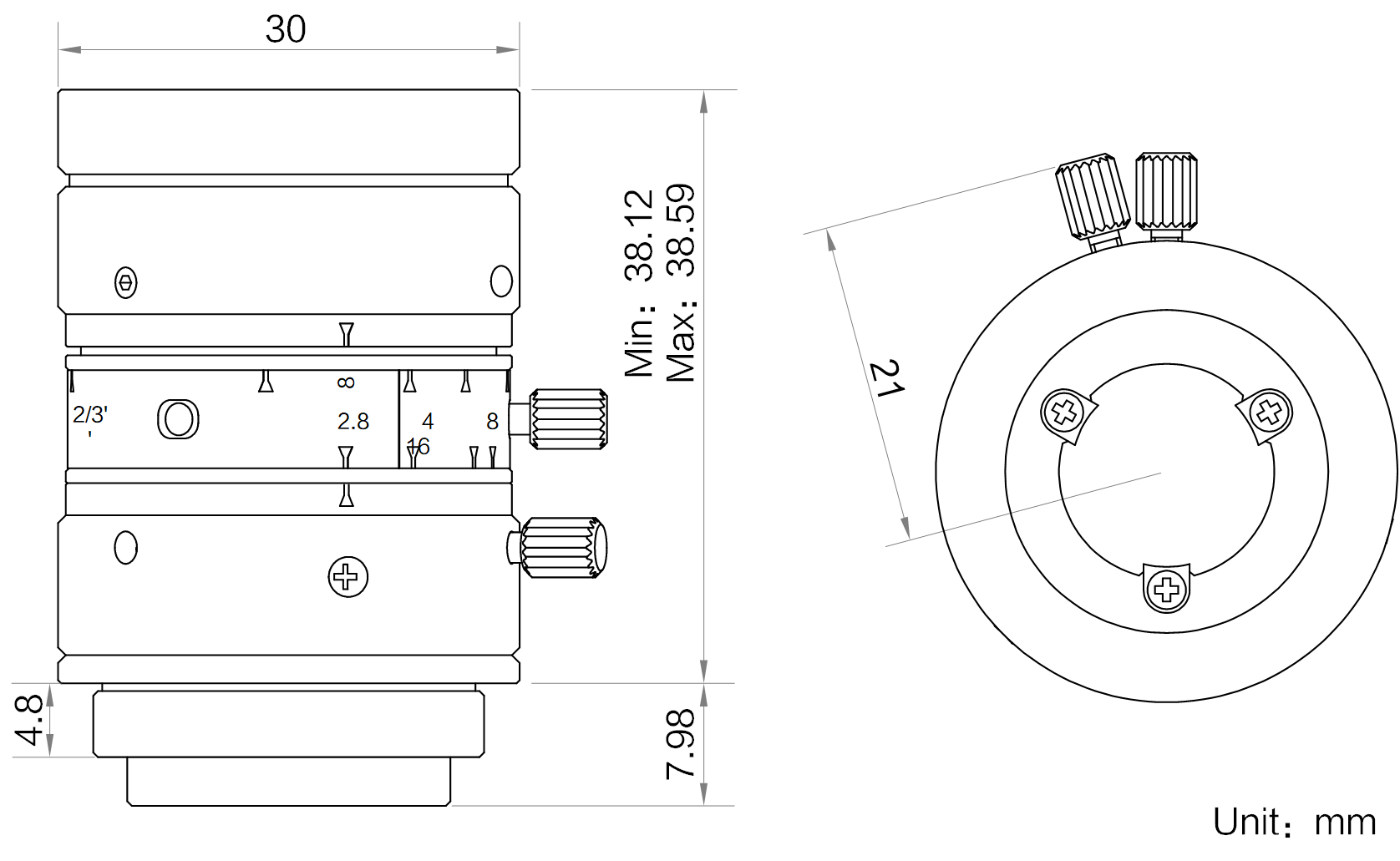

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-MF2528M-8MP
Datasheet · DE · 831 KB
- Download
Technical drawing HikRobot Objektiv MVL-MF2528M-8MP
Technical drawing · DE · 983 KB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Ultra-high resolution and consistency of image clarity - Ultra-low distortion and higher relative illumination - Achromatic optical system design, better image performance with color camera - Supports ultra-short working distance with good optical performance - Compact design, excellent vibration resistance and high and low temperature performance
