HIKROBOT
lens MVL-HF4028M-6MPE
Manufacturer part number: MVL-HF4028M-6MPE · 310100754
- Focal length
- 40 mm
- Max. Sensorformat
- 1/1.8"
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 250 mm
- Aperture
- F2.8 - F16
- Filtergewinde
- M27 × 0.5
- Resolution
- 6 MP
- Fokuseinstellung
- Manual
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-HF4028M-6MPE |
|---|---|
| Focal length | 40 mm |
| Max. sensor format | 1/1.8" |
| Resolution | 6 MP |
| Pixel size | 2.5 µm (calculated) |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Minimum object distance | 0.25 m |
| F-number | F2.8 to F16 |
| Field of view | D (8.96 mm): 12.78°; H (7.38 mm): 10.53°; V (4.92 mm): 7.04° |
| Optical distortion | −0.024 % |
| Image size | Ø9 mm (1/1.8") |
| Filter thread | M27 × P0.5 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 41.5 mm |
| Diameter | Ø33 mm |
| Weight | 67.1 g (0.1 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

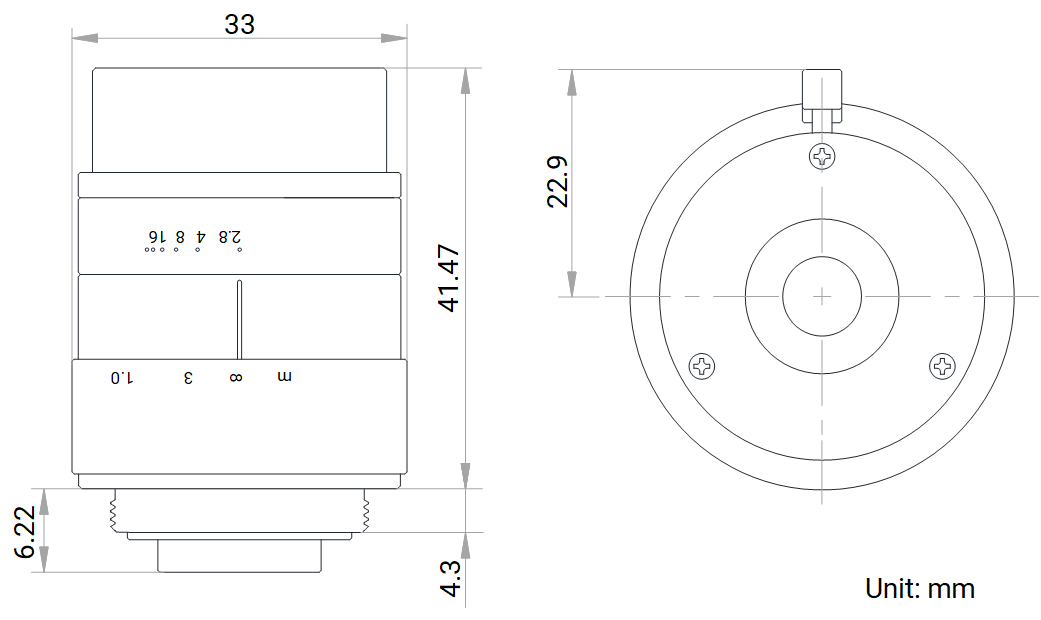

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-HF4028M-6MPE
Datasheet · DE · 943 KB
- Download
Technical drawing HikRobot Objektiv MVL-HF4028M-6MPE
Technical drawing · DE · 213 KB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Higher image clarity and contrast ratio - Ultra-low distortion and higher relative illumination rate - Good optical performance at ultra-short working distance - Compact design, convenient for device integration
