Fujinon
HF35XA-1F C-Mount
Manufacturer part number: HF35XA-1F
Series: HF-XA-1F
- Focal length
- 35 mm
- Max. Sensorformat
- 1/1.2" (3.45 µm)
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 300 mm
- Aperture
- F1.9 / F5.2 / F10.4 (Wechselblenden)
- Filtergewinde
- M25.5 × 0.5
- Resolution
- 5 MP
- Fokusbereich (ab Objektivvorderseite)
- 300 mm up to ∞
- Fokuseinstellung
- Fest
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | HF35XA-1F |
|---|---|
| Brennweite [mm] | 35 |
| Brennweite (Designwert) [mm] | 35.16 |
| Arbeitsabstand (von der Objektivvorderseite) [mm] | ∞ – 300 |
| Fokuseinstellung | Fixed |
| Blendensteuerung | Fixed |
| Filtergewinde [mm] | M25.5 × 0.5 |
| Anschluss | C-mount |
| Gewicht (ca.) [g] | 75 |
| Sensorgröße (standard) | 2/3" (3.45 µm) |
| Sensorgröße (maximal) | 1/1.2" (4.5 µm) |
| Hintere Brennweite (in Luft) [mm] | 18.50 |
| Auflagemaß [mm] | 17.526 |
| Eintrittspupillenposition (vom Anschluss) [mm] | -8.21 |
| Austrittspupillenposition (vom Bildsensor) [mm] | -37.67 |
| Vordere Hauptpunktposition (vom Anschluss) [mm] | -6.30 |
| Hintere Hauptpunktposition (vom Anschluss) [mm] | -17.63 |
| Abstand zwischen den Hauptpunkten [mm] | -11.33 |
| TV-Verzerrung [%] | 0.10 |
| Abmessungen [mm] | φ34 × 50.3 |
| Hauptstrahlwinkel [°] | 8.23 |
| Betriebstemperaturbereich [°C] | -10 °C up to +50 °C |
| Lagertemperaturbereich [°C] | -30 °C up to +60 °C |
| Blende (F-Nummer) | F1.9 (Standardplatte) | F5.2 (Platte C) | F10.4 (Platte E) |
| Relative Beleuchtung [%] (Bildhöhe diagonal) | 42 (Standardplatte) | 90 (Platte C) | 90 (Platte E) |
| Bildwinkel (H × V) | 14.2° × 10.7° (2/3") |
| Brennweite | 35 mm |
| Max. Sensorformat | 1/1.2" |
| Auflösung | 5 MP |
| Pixelgröße | 3.45 µm |
| Mindestobjektdistanz (MOD) | 300 mm |
| Blende | F1.9 / F5.2 / F10.4 (Wechselblenden) |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | 0.1 % |
| Bildkreis | Nicht angegeben |
| Filtergewinde | M25.5 × 0.5 |
| Vibrationsfest | Nicht angegeben |
| Baulänge | 50.3 mm |
| Durchmesser | Ø 34 mm |
| Lens type | Entocentric |
Specifications of the HF-XA-1F series
| Model | Focal length (mm) | Compatible sensor size | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | ||
| HF8XA-1F | 8 mm | - | - | - | - | ● | ● | ● | ● |
| HF12XA-1F | 12 mm | - | - | - | ○ | ● | ● | ● | ● |
| HF16XA-1F | 16 mm | - | - | - | ○ | ● | ● | ● | ● |
| HF25XA-1F | 25 mm | - | - | - | ○ | ● | ● | ● | ● |
| HF35XA-1F | 35 mm | - | - | - | ○ | ● | ● | ● | ● |
● Compatible sensor size (std.): the ideal size for the best possible resolving power.
○ Compatible sensor size (max.): the maximum sensor size varies by model. Choose a lens to match your sensor size and resolution.
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

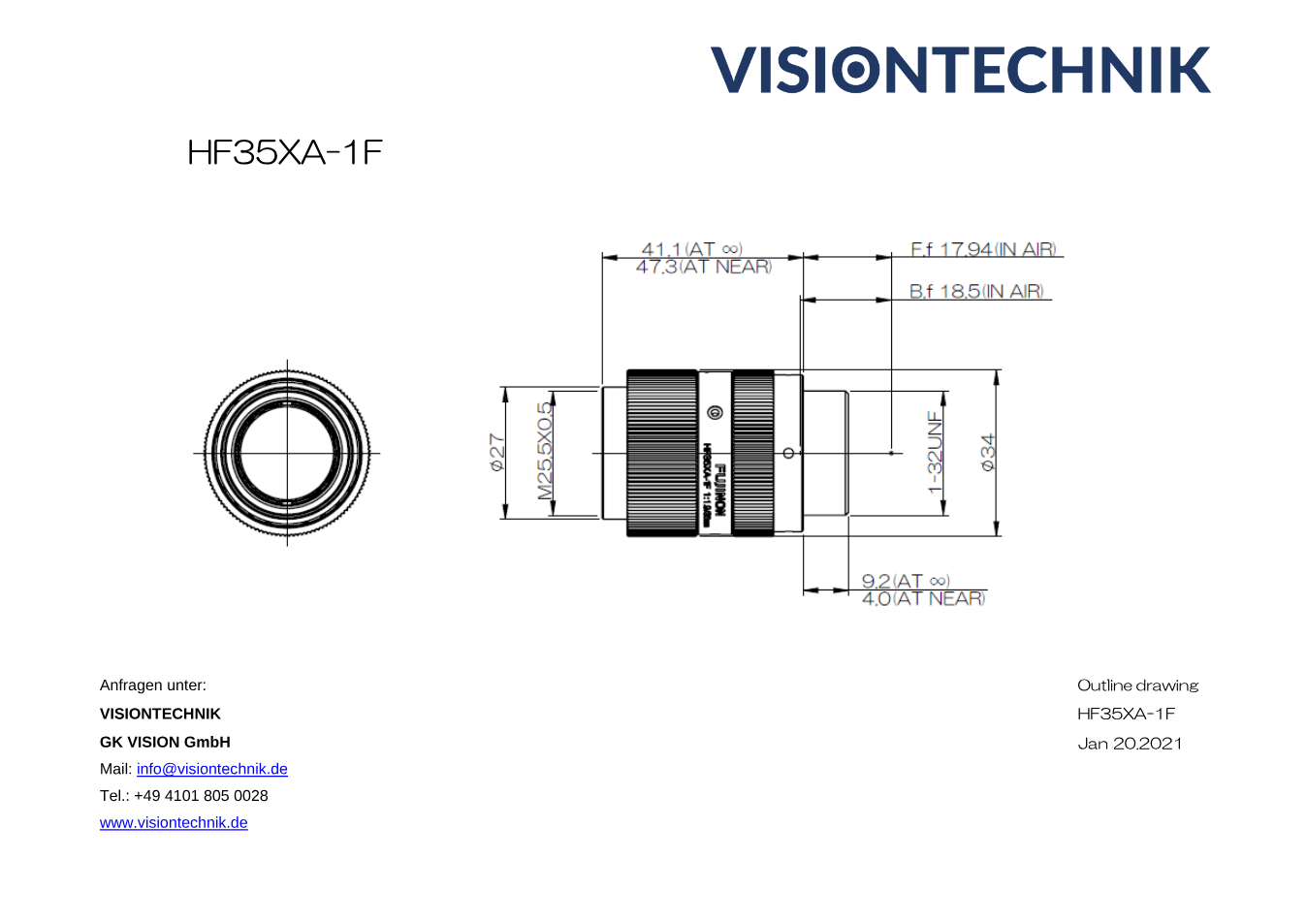

Dimensional drawing
Documents
- Download datasheet
Datasheet Fujinon HF35XA-1F (PDF)
Datasheet · DE · 304 KB
- Download
Maßzeichnung Fujinon HF35XA-1F (PDF)
Technical drawing · EN · 69 KB
- Download
CAD-Zeichnung Fujinon HF35XA-1F (DXF)
Technical drawing · EN · 665 KB
Description
Fujinon HF35XA-1F: high-precision C-mount lens for top-end industrial applications
The Fujinon HF35XA-1F is a C-mount lens with a focal length of 35 mm and an aperture of interchangeable F1.9 / F5.2 / F10.4, developed for use in demanding industrial image processing systems.
Angle of view and imaging
With an angle of view of 14.2° × 10.7° on a 2/3" (standard), 1/1.2" (max.) sensor, the HF35XA-1F covers a wide area in industrial applications.
Applications
The Fujinon HF35XA-1F suits industrial automation, machine vision and other image processing applications where compact size and high optical performance are required. The minimum object distance of 300 mm adds flexibility for different working conditions.
Key features:
- Focal length: 35 mm
- Maximum resolution: 5 megapixels
- Mount: C-mount
- Minimum object distance (MOD): 300 mm
- Distortion: minimal, for reproducible results
- Field of application: industrial image processing, machine vision, quality control
- Aperture: interchangeable F1.9 / F5.2 / F10.4
- Sensor size: 2/3" (standard), 1/1.2" (max.)
- Angle of view: 14.2° × 10.7°
