Fujinon
HF16SA-1 C-Mount
Manufacturer part number: HF16SA-1
Series: HF-SA
- Focal length
- 16 mm
- Max. Sensorformat
- 2/3"
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 100 mm
- Aperture
- F1.4 - F22
- Filtergewinde
- M49 × 0.75
- Resolution
- 5 MP
- Fokusbereich (ab Objektivvorderseite)
- 100 mm up to ∞
- Fokuseinstellung
- Manual
No longer available - see successor product
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | HF16SA-1 |
|---|---|
| Brennweite [mm] | 16 |
| Brennweite (Designwert) [mm] | 16.33 |
| Blende (F-Nummer) | F1.4 – F22 |
| Arbeitsabstand (von der Objektivvorderseite) [mm] | ∞ – 100 (von der Vorderseite der Linse) |
| Fokuseinstellung | Manual |
| Blendensteuerung | Manual |
| Filtergewinde [mm] | M49 × 0.75 |
| Anschluss | C-mount |
| Gewicht (ca.) [g] | 285 |
| Sensorgröße (maximal) | 2/3" |
| Hintere Brennweite (in Luft) [mm] | 17.99 |
| Auflagemaß [mm] | 17.526 |
| Austrittspupillenposition (vom Bildsensor) [mm] | -191.68 |
| Vordere Hauptpunktposition (vom Anschluss) [mm] | -24.15 |
| Hintere Hauptpunktposition (vom Anschluss) [mm] | 1.20 |
| Abstand zwischen den Hauptpunkten [mm] | 25.35 |
| TV-Verzerrung [%] | 0.11 % |
| Abmessungen [mm] | φ51 × 70.5 |
| Relative Beleuchtung [%] (Blende F4.0, Bildhöhe diagonal) | 78 % |
| Betriebstemperaturbereich [°C] | -10 °C up to +50 °C |
| Bildwinkel (H × V) | 30.2° × 22.9° (2/3") |
| Brennweite | 16 mm |
| Max. Sensorformat | 2/3" |
| Auflösung | 5 MP |
| Pixelgröße | Nicht angegeben |
| Mindestobjektdistanz (MOD) | 100 mm |
| Blende | F1.4 - F22 |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | 0.11 % |
| Bildkreis | Nicht angegeben |
| Filtergewinde | M49 × 0.75 |
| Vibrationsfest | Nicht angegeben |
| Baulänge | 70.5 mm |
| Durchmesser | Ø 51 mm |
| Lens type | Entocentric |
Specifications of the HF-SA series
| Model | Focal length (mm) | Compatible sensor size | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | ||
| HF12.5SA-1 | 12.5 mm | - | - | - | - | ● | ● | ● | ● |
| HF16SA-1 | 16 mm | - | - | - | - | ● | ● | ● | ● |
| HF25SA-1 | 25 mm | - | - | - | - | ● | ● | ● | ● |
| HF35SA-1 | 35 mm | - | - | - | - | ● | ● | ● | ● |
| HF50SA-1 | 50 mm | - | - | - | - | ● | ● | ● | ● |
| HF75SA-1 | 75 mm | - | - | - | - | ● | ● | ● | ● |
● Compatible sensor size (std.): the ideal size for the best possible resolving power.
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

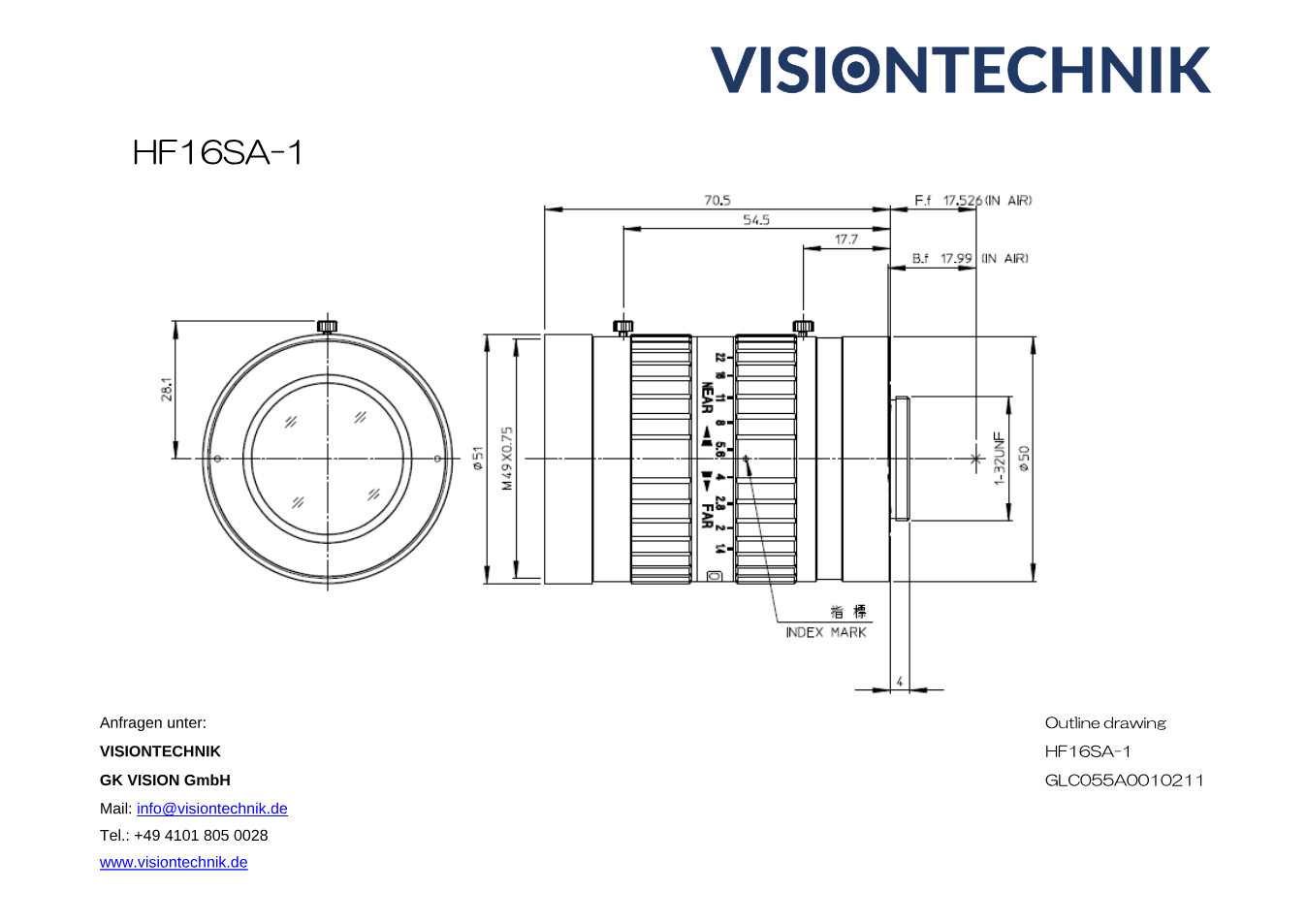

Dimensional drawing
Documents
- Download datasheet
Datasheet Fujinon HF16SA-1 (PDF)
Datasheet · DE · 226 KB
- Download
Maßzeichnung Fujinon HF16SA-1 (PDF)
Technical drawing · EN · 67 KB
- Download
CAD-Zeichnung Fujinon HF16SA-1 (DXF)
Technical drawing · EN · 225 KB
Description
The Fujinon HF16SA-1 is a C-mount lens for industrial image processing with a focal length of 16 mm and an aperture range of F1.4 - F22. It is designed for sensors up to 2/3" and supports camera resolutions up to 5 megapixels.
The focusing range runs from infinity to 0.1 m in front of the lens (manual focus and manual aperture). The weight is approx. 285 g.
Important note: Fujinon discontinued the HF-SA series on 1 April 2025 (last orders until August 2025, delivery until the end of March 2026). As a replacement, Fujinon recommends the Fujinon HF16XA-5M (similar specification, more compact and less expensive).
