HIKROBOT

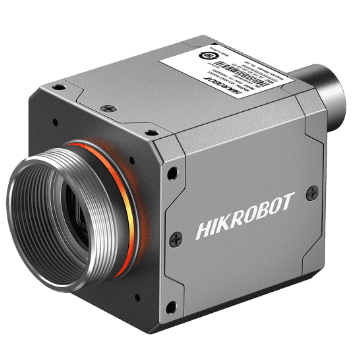

Area scan camera MV-CT2CU0120/G/NN/NN
Manufacturer part number: MV-CT2CU0120/G/NN/NN
- Resolution
- 12.3 MP
- Pixels
- 4096 × 3000
- Max. frame rate
- 31 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1.1"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CT2CU0120/G/NN/NN |
|---|---|
| Type | 12MP Area Scan Camera, 3rd Gen., USB3.0, Color, MAX |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 31 fps @ 4096 × 3000 Bayer GB 8 |
| Dynamic range | 67.4 dB |
| SNR | 43.9 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 20 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled |
| Mono/color | Color |
| Pixel format | Mono 8, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Data interface type | Type-C interface |
| Control interface | 8-pin M12 A-Code waterproof aviation connector |
| Digital I/O | 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 2.1 W @ 5 VDC (USB 3.0 provides power supply, fast heat balance not enabled, and external device not be controlled) |
| Lens mount | C-mount |
| Dimension | 42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7") |
| Weight | Approx. 109 g (0.2 lb.) |
| Ingress protection | IP67 (under proper lens and lens cap installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Data Sheet Hikrobot Flächenkamera MV-CT2CU0120/G/NN/NN
Datasheet · EN · 537 KB
- Download datasheet
Data Sheet Hikrobot Flächenkamera MV-CT2CU0120/G/NN/NN
Datasheet · EN · 649 KB
- Download
Drawing Hikrobot Flächenkamera MV-CT2CU0120/G/NN/NN
Technical drawing · EN · 1958 KB
- Download
Drawing Hikrobot Flächenkamera MV-CT2CU0120/G/NN/NN
Technical drawing · EN · 12463 KB
- Download
Firmware Hikrobot Flächenkamera MV-CT2CU0120/G/NN/NN
Software / firmware · EN · 3459 KB
- Download
User Manual Hikrobot Flächenkamera MV-CT2CU0120/G/NN/NN
Manual · EN · 4133 KB
Accessories
Data cables(15)
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 1 m
Micro-B male (with screw) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 0,5 m
Micro-B male (with screw) · 0.5 m
Datenkabel
HIKROBOT
USB 3.0 Flexkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 2 m
Micro-B male (with screw) · 2 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 15 m
Micro-B male (with screw) · 15 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 5 m
Micro-B male (with screw) · 5 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 20 m
Micro-B male (with screw) · 20 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 7 m
Micro-B male (with screw) · 7 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 10 m
Micro-B male (with screw) · 10 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 3 m
Micro-B male (with screw) ,Angle (down) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 0,5 m
Micro-B male (with screw) ,Angle (down) · 0.5 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 1 m
Micro-B male (with screw) ,Angle (down) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 2 m
Micro-B male (with screw) ,Angle (down) · 2 m
Datenkabel
Description
Key Feature - The devices with PRO version and MAX version support waterproof connector. - The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance. - The color devices with PRO version and MAX version support auto color correction based on multi-spectral fusion technology. - The device with MAX version integrates lens and light source, enabling lens focusing and light source control. - Adopts Type-C interface and supports higher transmission bandwidth. - Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
