Area scan camera MV-CS004-10UM
Manufacturer part number: MV-CS004-10UM · 306301891
- Resolution
- 0.4 MP
- Pixels
- 720 × 540
- Max. frame rate
- 526.5 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1/2.9"
- Pixel size
- 6.9 µm × 6.9 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CS004-10UM |
|---|---|
| Type | 0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX287 |
| Pixel size | 6.9 µm × 6.9 µm |
| Sensor size | 1/2.9" |
| Resolution | 720 × 540 |
| Dynamic range | 73.6 dB |
| Max. frame rate | 526.5 fps @720 × 540 Mono 8 |
| SNR | 42.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 µs to 14 µs Standard exposure mode: 15 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 2.4 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Quantum efficiency | 58.3 % |
| Dark noise | 3.3 e- @ 12 bit |
| Signal-to-noise ratio | 42.9 dB |
| Saturation capacity | 19.6 ke- |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

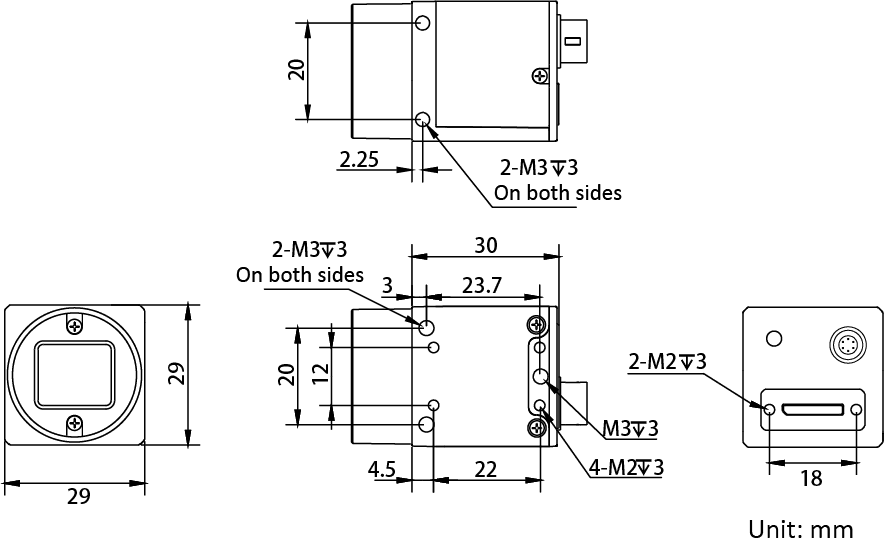

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CS004-10UM
Datasheet · EN · 539 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CS004-10UM
Technical drawing · EN · 611 KB
- Download
Software / Firmware V2.2.0 Hikrobot Flächenkamera MV-CS004-10UM
Software / firmware · EN · 1059 KB
- Download
Manual Hikrobot Flächenkamera MV-CS004-10UM
Manual · EN · 3739 KB
