HIKROBOT
Area scan camera MV-CH120-20UC
Manufacturer part number: MV-CH120-20UC
- Resolution
- 12 MP
- Pixels
- 4096 × 3072
- Max. frame rate
- 28 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1”
- Pixel size
- 3.2 µm × 3.2 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH120-20UC |
|---|---|
| Type | 12MP Area Scan Camera, USB3, XGS12000, Color, V4 |
| Sensor type | CMOS, global shutter |
| Sensor model | OnSemi XGS12000 |
| Pixel size | 3.2 µm × 3.2 µm |
| Sensor size | 1” |
| Resolution | 4096 × 3072 |
| Max. frame rate | 28 fps @ 4096 × 3072 Bayer RG 8 |
| Dynamic range | 68 dB |
| SNR | 40 dB |
| Gain | 0 dB to 18 dB |
| Exposure time | UltraShort exposure mode: 52 µs to 161 µs Standard exposure mode: 162 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12 Bayer RG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 3.2 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision,GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

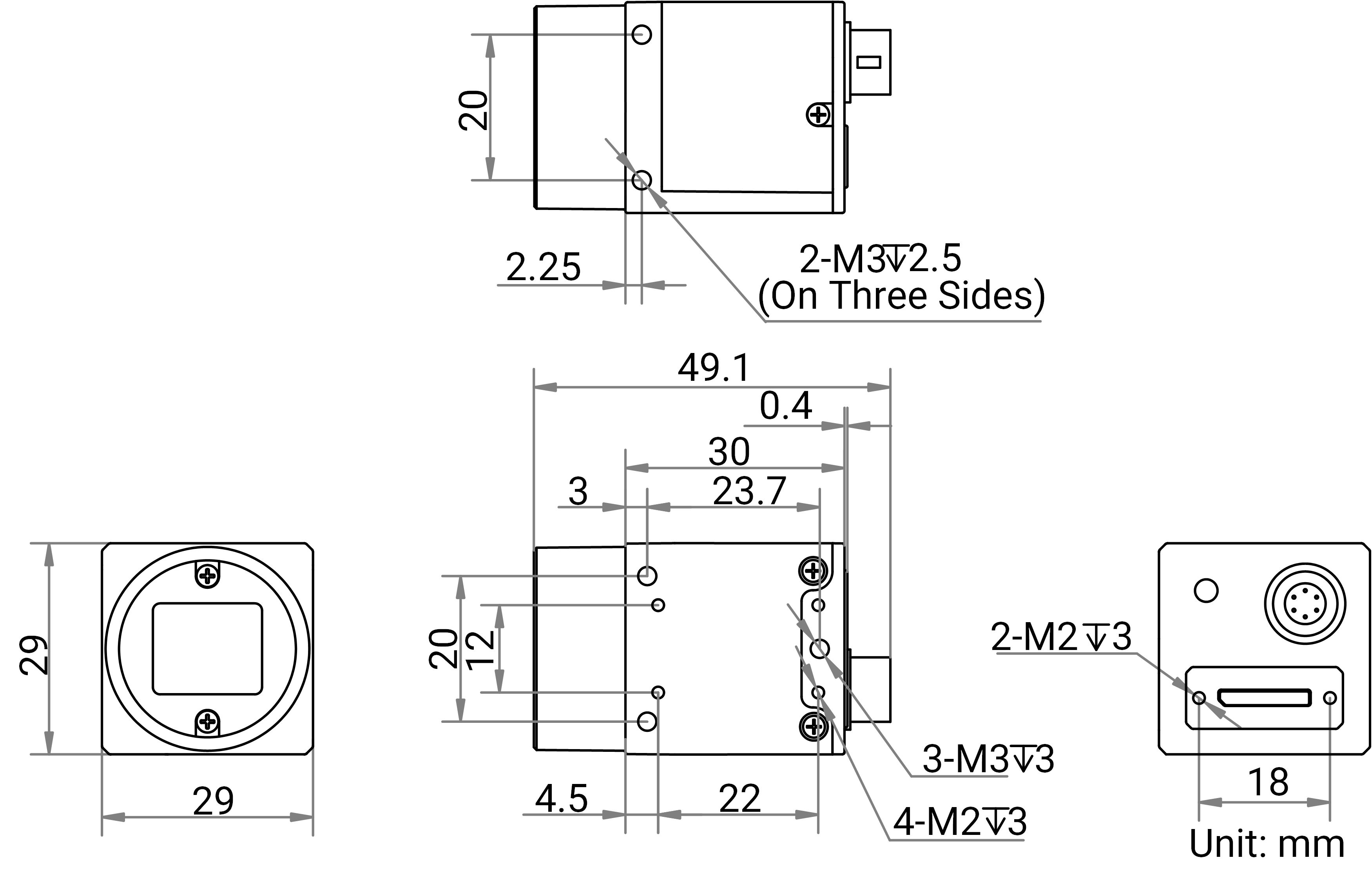

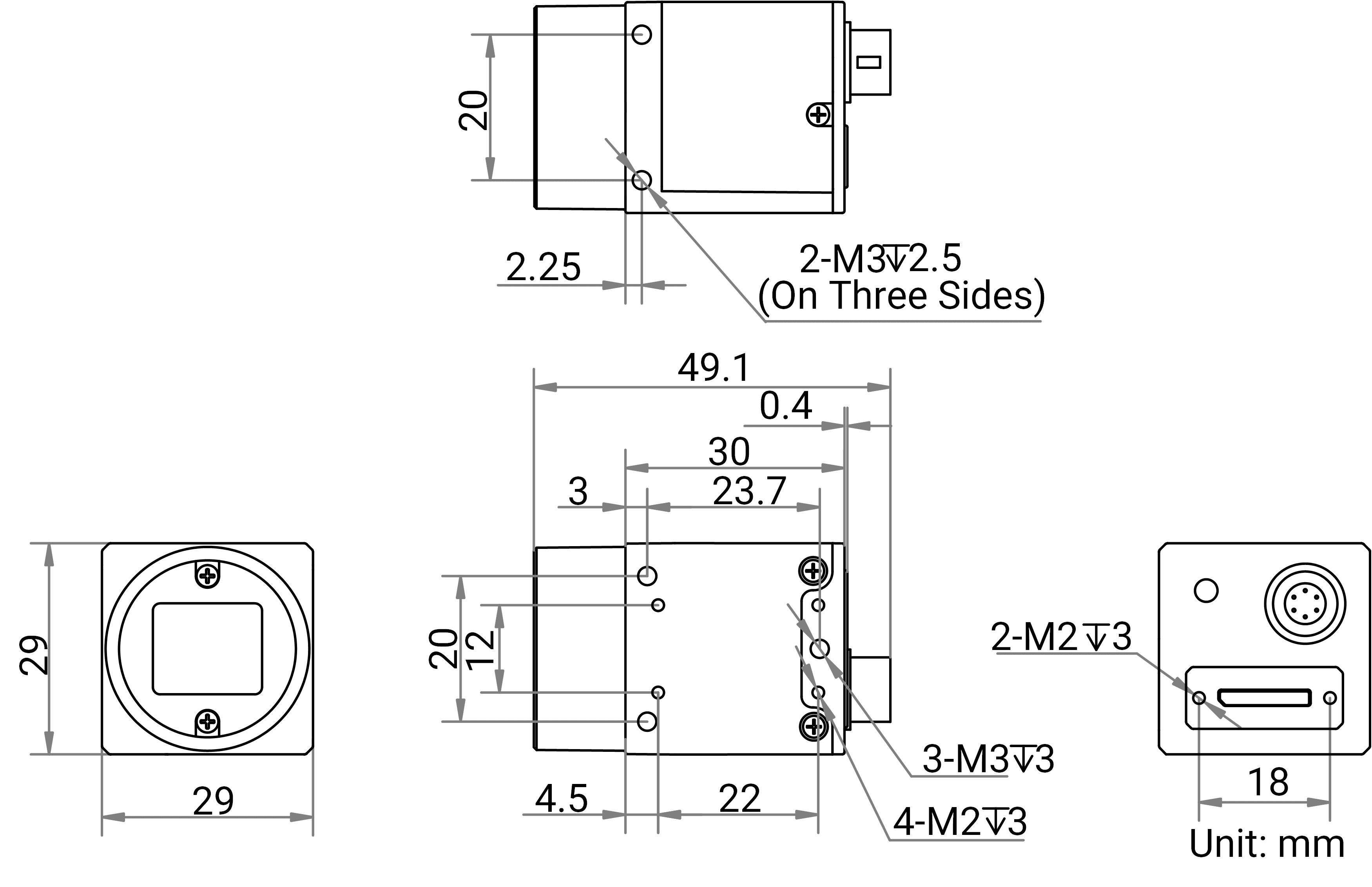

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH120-20UC
Datasheet · EN · 496 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH120-20UC
Technical drawing · EN · 2348 KB
- Download
Manual HikRobot Flächenkamera MV-CH120-20UC
Manual · EN · 3739 KB
Accessories
Data cables(15)
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 1 m
Micro-B male (with screw) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 0,5 m
Micro-B male (with screw) · 0.5 m
Datenkabel
HIKROBOT
USB 3.0 Flexkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 2 m
Micro-B male (with screw) · 2 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 15 m
Micro-B male (with screw) · 15 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 5 m
Micro-B male (with screw) · 5 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 20 m
Micro-B male (with screw) · 20 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 7 m
Micro-B male (with screw) · 7 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 10 m
Micro-B male (with screw) · 10 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 3 m
Micro-B male (with screw) ,Angle (down) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 0,5 m
Micro-B male (with screw) ,Angle (down) · 0.5 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 1 m
Micro-B male (with screw) ,Angle (down) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 2 m
Micro-B male (with screw) ,Angle (down) · 2 m
Datenkabel
Description
Key Feature - Supports auto or manual adjustment for gain, exposure time, LUT and Gamma correction. - Supports customized ROI, and horizontal and vertical reverse image output. - Supports hardware trigger, software trigger and free run mode. - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocols and standards.
