HIKROBOT
Area scan camera MV-CU020-80GM
Manufacturer part number: MV-CU020-80GM · 306302334
- Resolution
- 1.9 MP
- Pixels
- 1600 × 1200
- Max. frame rate
- 53.5 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1/2.6"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CU020-80GM |
|---|---|
| Type | 2MP Area Scan Camera, GigE, SC235, Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | SC235 |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1/2.6" |
| Resolution | 1600 × 1200 |
| Max. frame rate | 53.5 fps @ 1600 × 1200 Mono 8 |
| Dynamic range | 60.4 dB |
| SNR | 40.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 45 µs to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, PoE is optional |
| Power consumption | Typ. 1.8 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 97 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

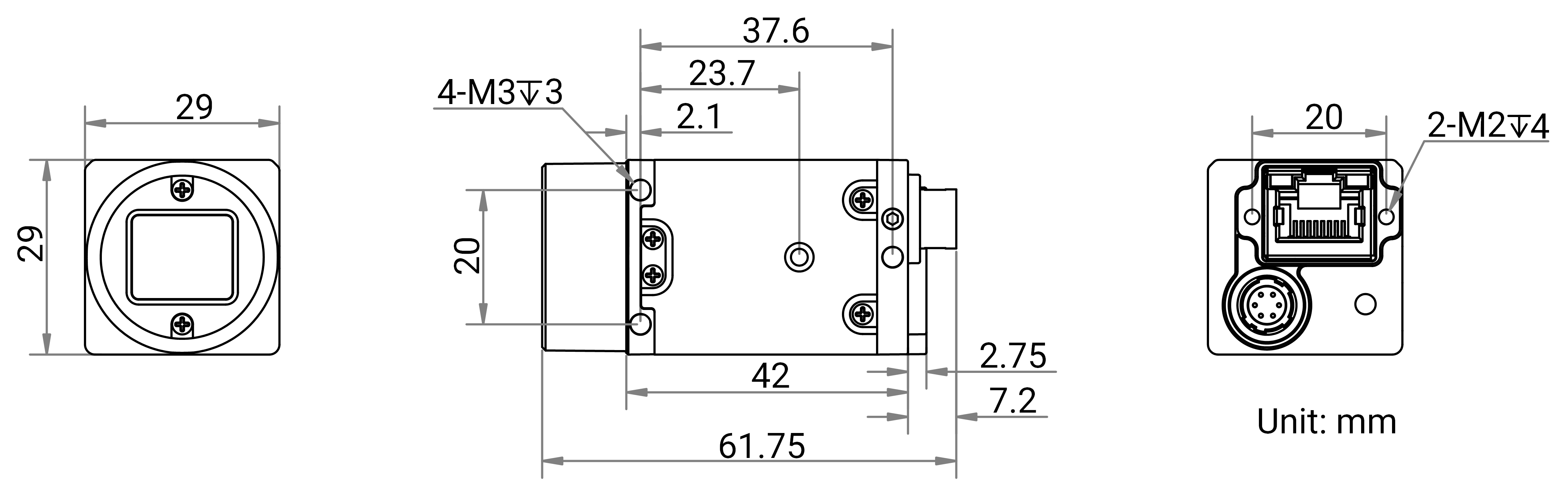

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CU020-80GM
Datasheet · EN · 497 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CU020-80GM
Technical drawing · EN · 1 MB
Software and SDK (13)
- Download
Software / Firmware V4.0.39 HikRobot Flächenkamera MV-CU020-80GM
Software / firmware · EN · 1 MB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
Manual HikRobot Flächenkamera MV-CU020-80GM
Manual · EN · 4 MB
Accessories
Data cables(25)
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 1 m
RJ45 (with locking stud) · 1 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 60 m
RJ45 (with locking stud) · 60 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
Description
Key Feature - Adopts low consumption design with stable performance. - Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc. - Supports customized ROI and supports horizontal and vertical reverse image output. - Adopts compact design to meet small spatial requirements. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
