HIKROBOT

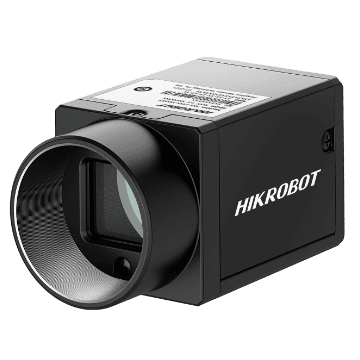

Area scan camera MV-CU013-A1GC

Manufacturer part number: MV-CU013-A1GC

Resolution: 1.3 MP
Pixels: 1280 × 1024
Max. frame rate: 90 fps
Color / mono: Color
Shutter type: Global Shutter
Sensor format: 1/2"
Pixel size: 4.8 µm × 4.8 µm
Interface: GigE
Lens mount: C-Mount

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CU013-A1GC
Type	1.3MP Area Scan Camera, GigE
Sensor type	CMOS, global shutter
Pixel size	4.8 µm × 4.8 µm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	90 fps @ 1280 × 1024 Bayer GB 8
Dynamic range	54.2 dB
SNR	40.3 dB
Gain	0 dB to 16.4 dB
Exposure time	58 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12 Bayer GB 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, PoE is optional
Power consumption	Typ. 2.2 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 100 g (0.2 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Input voltage	9 VDC to 24 VDC, PoE is optional

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

Datasheet Hikrobot Flächenkamera MV-CU013-A1GC
Datasheet · EN · 481 KB
Download datasheet
Technical drawing Hikrobot Flächenkamera MV-CU013-A1GC
Technical drawing · EN · 7 MB
Download

Software and SDK (12)

MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
Download

Manual Hikrobot Flächenkamera MV-CU013-A1GC
Manual · EN · 4 MB
Download

Description

Key Feature

- Adopts low power consumption design with stable performance.

- Supports auto or manual adjustment of gain, exposure time etc.

- Supports Sequencer and multiple ISP functions to provide high-quality images.

- Supports hardware trigger, software trigger, anyway mode, etc.

- Adopts GigE interface and max. transmission distance of 100 meters without relay.

- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
