HIKROBOT

Area scan camera MV-CU004-10GM

Manufacturer part number: MV-CU004-10GM · 306301787

Resolution: 0.4 MP
Pixels: 720 × 540
Max. frame rate: 126.5 fps
Color / mono: Mono
Shutter type: Global Shutter
Sensor format: 1/2.9"
Pixel size: 6.9 µm × 6.9 µm
Interface: GigE
Lens mount: C-Mount

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CU004-10GM
Type	0.4MP Area Scan Camera, GigE, IMX297, Mono, with PoE
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX297
Pixel size	6.9 µm × 6.9 µm
Sensor size	1/2.9"
Resolution	720 × 540
Max. frame rate	126.5 fps @720 × 540 Mono 8
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 µs to 14 µs Standard exposure mode: 15 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, PoE is optional
Power consumption	Typ. 2 W@12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 100 g (0.2 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20 % to 95 % RH, non-condensing
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

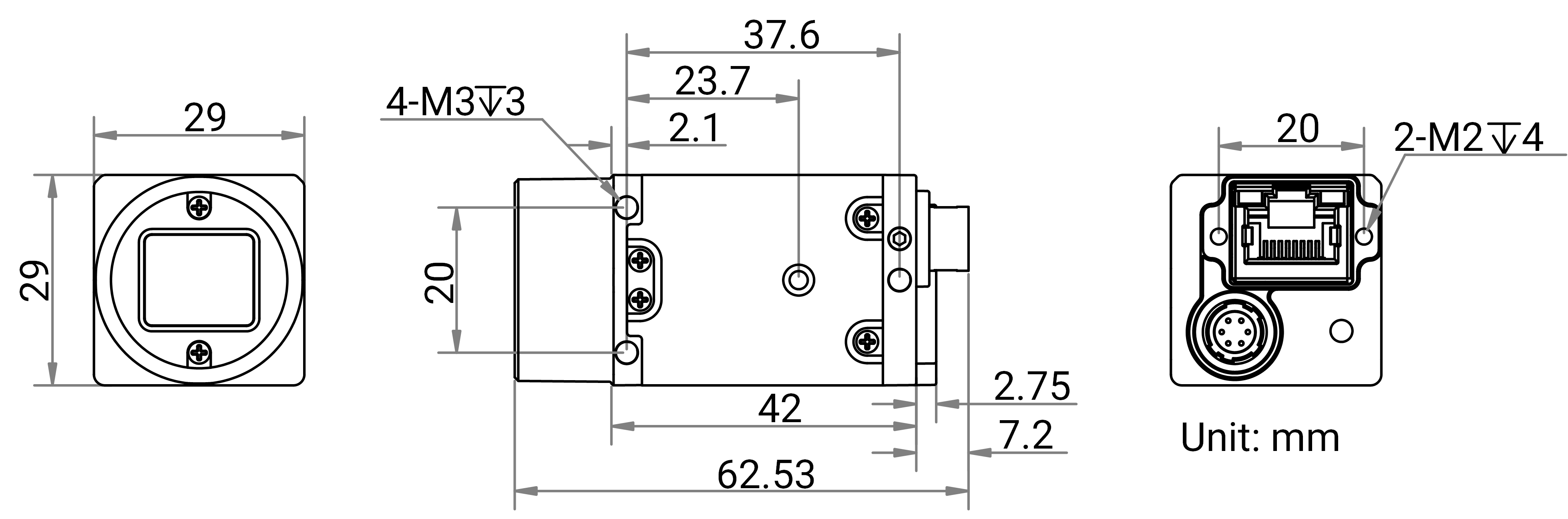

Dimensional drawing

Maßzeichnung HikRobot Flächenkamera MV-CU004-10GM

Documents

Datasheet HikRobot Flächenkamera MV-CU004-10GM
Datasheet · EN · 546 KB
Download datasheet
Technical drawing HikRobot Flächenkamera MV-CU004-10GM
Technical drawing · EN · 1628 KB
Download
Manual HikRobot Flächenkamera MV-CU004-10GM
Manual · EN · 3930 KB
Download

Accessories

Data cables(25)

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 1 m

RJ45 (with locking stud) · 1 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 60 m

RJ45 (with locking stud) · 60 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Datenkabel

Description

Key Feature - Adopts low power consumption design with stable performance. - Supports auto and manual adjustment of gain, exposure time, etc. - Supports hardware trigger, software trigger, free run, etc. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
