Area scan camera MV-CS200-10GM

Manufacturer part number: MV-CS200-10GM · 306301440

Resolution: 20 MP
Pixels: 5472 × 3648
Max. frame rate: 5.9 fps
Color / mono: Mono
Shutter type: Rolling Shutter
Sensor format: 1"
Pixel size: 2.4 µm × 2.4 µm
Interface: GigE
Lens mount: C-Mount
Global reset: Yes

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CS200-10GM
Type	20MP Area Scan Camera,GigE,IMX183,Mono,Basic
Sensor type	CMOS, rolling shutter
Sensor model	Sony® IMX183
Pixel size	2.4 µm × 2.4 µm
Sensor size	1"
Resolution	5472 × 3648
Max. frame rate	5.9 fps @ 5472 × 3648
SNR	41.5 dB
Gain	0 dB to 24 dB
Exposure time	46 µs to 2.5 sec
Exposure mode	Off/Once/Continuous exposure auto, supports Timed and Trigger Width exposure mode, and Rolling and Global Reset sensor shutter mode
Mono	Mono
Pixel format	Mono 8/10/10p/12/12p
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.4 W@12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 100 g (0.22 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Quantum efficiency	74.1 %
Dark noise	6.6 e-@10-bit
Signal-to-noise ratio	41.4 dB
Saturation capacity	13.8 ke-
Dynamic range	65.7 dB

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

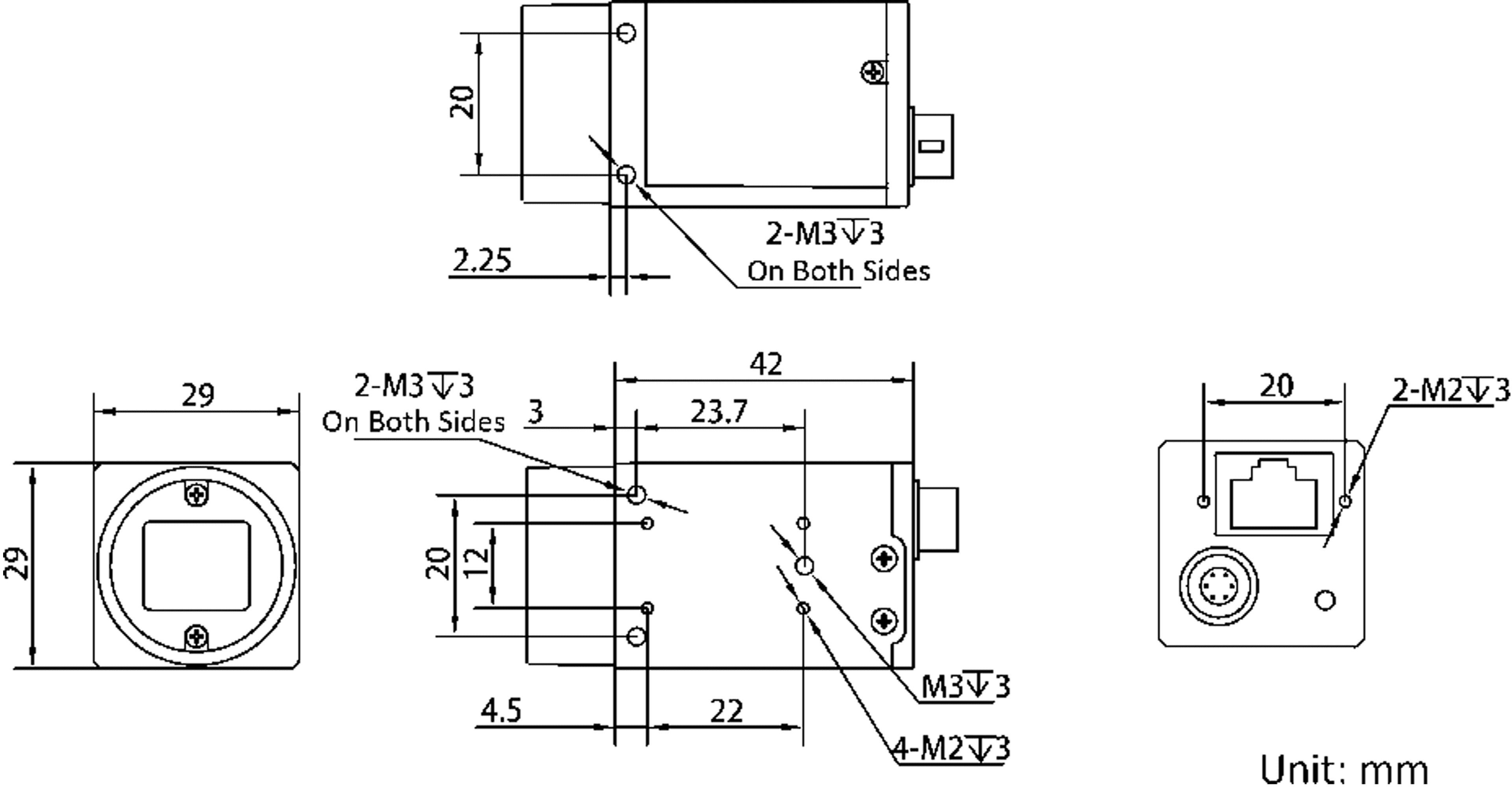

Dimensional drawing
