HIKROBOT
Area scan camera MV-CA032-10GM
Manufacturer part number: MV-CA032-10GM
- Resolution
- 3.1 MP
- Pixels
- 2048 × 1536
- Max. frame rate
- 37.5 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1/1.8"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CA032-10GM |
|---|---|
| Type | 3.2 MP 1/1.8" CMOS GigE Area Scan Camera |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX265 |
| Pixel size | 3.45 µm x 3.45 µm |
| Sensor size | 1/1.8" |
| Resolution | 2048 × 1536 |
| Max. frame rate | 37.5 fps @2048 × 1536 |
| Dynamic range | 73 dB |
| SNR | 40 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | UltraShort exposure mode: 1 µs to 14 µs Standard exposure mode: 15 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Image buffer | 128 MB |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input x 1 (Line0), opto- isolated output x 1(Line1), and bi-directional non-isolated I/O x 1 (Line2) |
| Power supply | 12 VDC, supports PoE |
| Power consumption | Typ. 3.2 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 68 g (0.15 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20 % to 80 % RH, non-condensing |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, FCC, RoHS, KC |
| Input voltage | 12 VDC, supports PoE |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

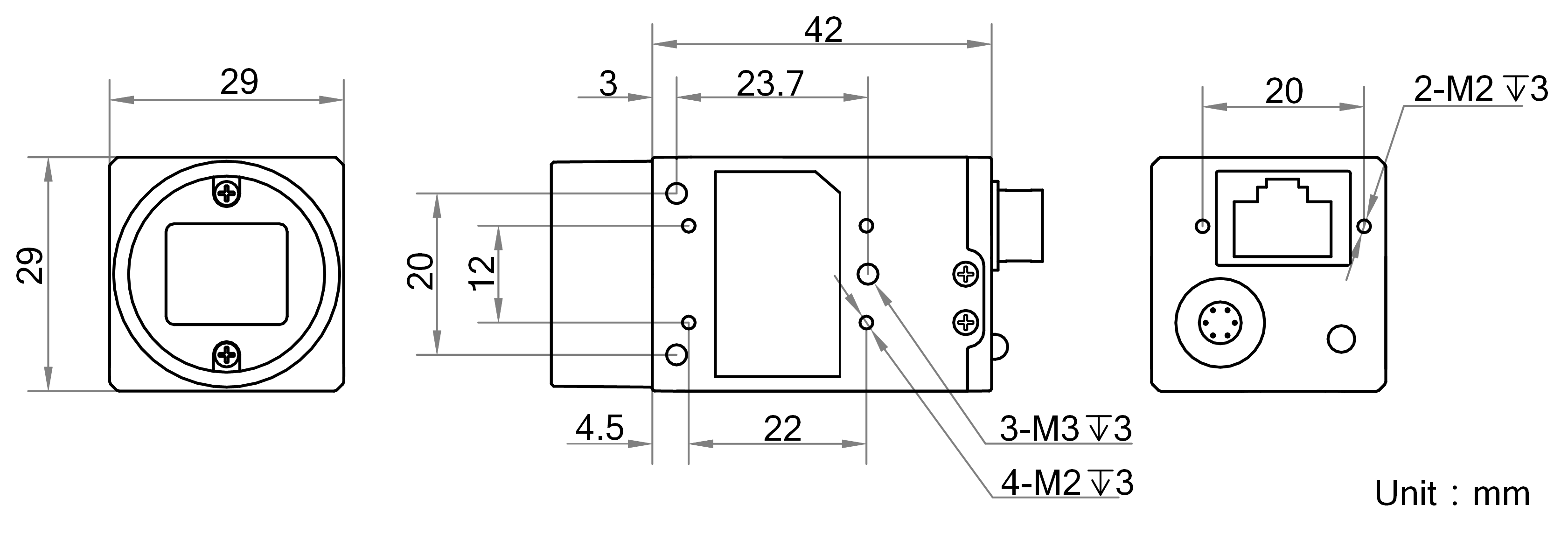

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CA032-10GM
Datasheet · EN · 1115 KB
Description
The Hikrobot area scan camera MV-CA032-10GM is a 3.1 MP monochrome camera of the CA series with GigE interface. It is based on the Sony IMX265 sensor (CMOS, global shutter, 1/1.8") and delivers up to 37.5 fps at 2048 × 1536 pixels (pixel size 3.45 µm × 3.45 µm). Lens mount C-mount, power supply 12 VDC, PoE, dimensions 29 mm × 29 mm × 42 mm, weight approx. 68 g, ingress protection IP30.
