Area scan camera OPT-CH1-M250-XGG3-02
Manufacturer part number: OPT-CH1-M250-XGG3-02
- Resolution
- 25 MP
- Pixels
- 5120 × 5120
- Max. frame rate
- 43.4 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1.1"
- Pixel size
- 2.5 µm × 2.5 µm
- Interface
- 10 GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CH1-M250-XGG3-02 |
|---|---|
| Sensormodell | GMAX0505 |
| Sensortyp | CMOS |
| Verschluss | Global Shutter |
| Auflösung | 5120 × 5120 |
| Auflösungsklasse | 25 MP |
| Bildrate | 43.4 fps |
| Pixelgröße | 2.5 µm × 2.5 µm |
| Sensorgröße | 1.1" |
| Bildausgabe | Monochrom |
| Farbtiefe | 8/10/12 |
| Ausgabeformate | Mono8/10/10Packed/12/12Packed |
| Dynamikumfang | 65 dB |
| Signal-Rausch-Verhältnis | > 39 dB |
| Belichtungszeit | 16 µs up to 10 s |
| Triggermodus | Software-Trigger / Hardware-Trigger / Free Run |
| Schnittstelle | 10 GigE (SFP+) |
| Kamerastandard | GigE Vision, GenICam |
| Ein-/Ausgänge (GPIO) | 12 pin Hirose: 2 x optoentkoppelter Eingang, 2 x optoentkoppelter Ausgang |
| Spannungsversorgung | 12-poliger Hirose-Anschluss, Spannungsbereich 12 V up to 24 V |
| Leistungsaufnahme | ≈ 6.5 W @ 24 V |
| Objektivanschluss | C-Mount |
| Abmessungen | 76 mm × 76 mm × 63 mm |
| Temperaturbereich | Lagerung -30 °C up to +80 °C, operation 0 °C up to +50 °C |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

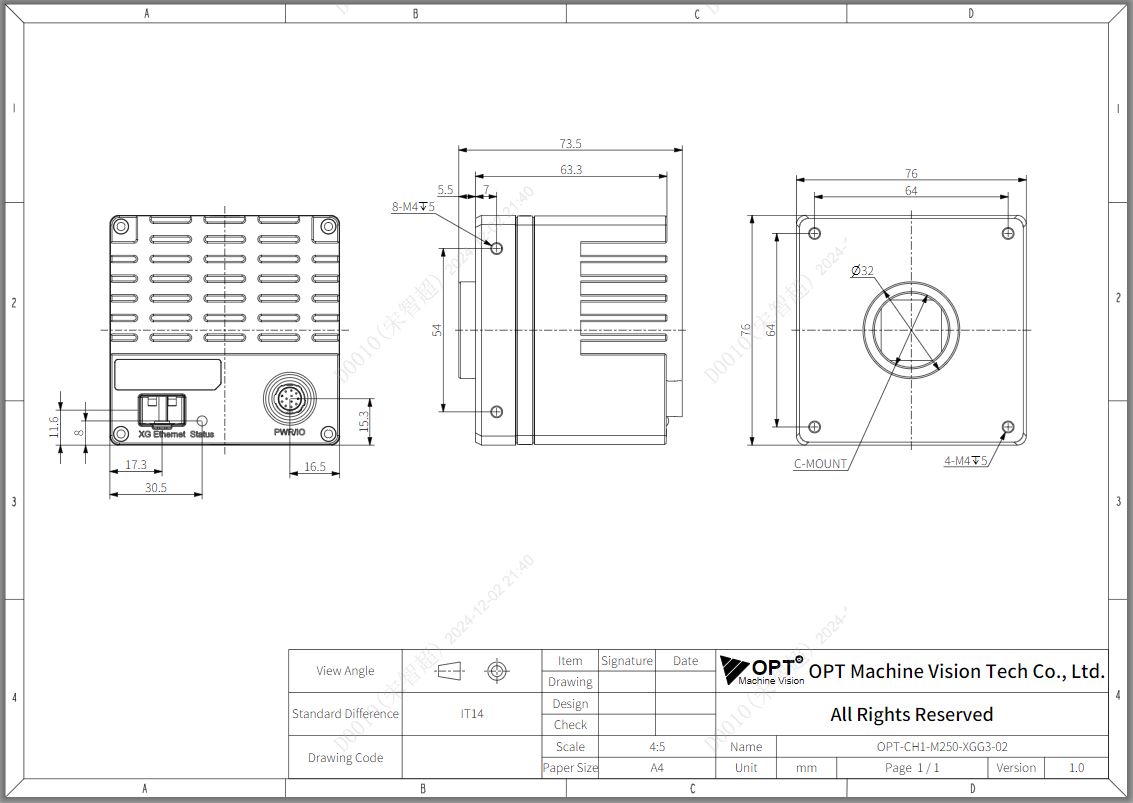

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-CH1-M250-XGG3-02
Datasheet · EN · 3703 KB
- Download
3D-Modell OPT-CH1-M250-XGG3-02 (STEP)
Technical drawing · EN · 6158 KB
- Download
OPT ID Viewer_Setup_V25.0.0.0_x64
Software / firmware · EN · 73951 KB
- Download
OPT Camera Viewer_V4.0.0.3_Windows_x64_Setup
Software / firmware · EN · 499240 KB
- Download
OPT Camera Viewer_V4.0.0.0_Mac_Setup
Software / firmware · EN · 223417 KB
- Download
OPT Camera Viewer_V3.0.0.2_Linux_Setup
Software / firmware · EN · 168121 KB
- Download
CH1 Series Industrial Area-Scan Camera with 10-Gigabit Optical Interface - User Manual (V1.0.0, EN)
Manual · EN · 5245 KB
Accessories
Data cables(6)
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-S3M, 3 m (Standard)
RJ45 · 3 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-S5M, 5 m (Standard)
RJ45 · 5 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-S10M, 10 m (Standard)
RJ45 · 10 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-R3M, 3 m (hochflexibel)
RJ45 · 3 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-R5M, 5 m (hochflexibel)
RJ45 · 5 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-R10M, 10 m (hochflexibel)
RJ45 · 10 m
Description
OPT-CH1-M250-XGG3-02 belongs to the CH1 series of high-resolution 10 GigE area scan cameras by OPT Machine Vision. The Gpixel GMAX0505 sensor (1.1", 2.5 µm × 2.5 µm) delivers 5120 × 5120 pixels with global shutter and up to 43.4 fps. The camera connects via 10 GigE (SFP+) and is GigE Vision, GenICam compliant; lenses attach via C-Mount.
Typical fields of use are position and presence checks, measurement, surface inspection and code reading in industrial environments. Data sheet, dimensional drawing (2D) and 3D model (STEP) as well as the OPT software are in the download area. We are glad to advise you on choosing lens, lighting and interface accessories - just ask for price and delivery time.
