HIKROBOT

Area scan camera MV-CH310-10TM-M58S-NN

Manufacturer part number: MV-CH310-10TM-M58S-NN · 306301863

Resolution: 31 MP
Pixels: 6464 × 4852
Max. frame rate: 17.2 fps
Color / mono: Mono
Shutter type: Global Shutter
Sensor format: 22.3 mm × 16.7 mm
Pixel size: 3.45 µm × 3.45 µm
Interface: 10 GigE
Lens mount: M58 × 0.75

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CH310-10TM-M58S-NN
Type	31MP Area Scan Camera, 10GigE, IMX342, Mono, M58-mount, fanless
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX342
Pixel size	3.45 µm × 3.45 µm
Sensor size	22.3 mm × 16.7 mm
Resolution	6464 × 4852
Max. frame rate	17.2 fps @ 6464 × 4852 Mono 8
Dynamic range	73 dB
SNR	40 dB
Gain	0 dB to 24 dB
Exposure time	4 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply	9 VDC to 24 VDC
Power consumption	Typ. 11.2 W @ 12 VDC
Lens mount	M58*0.75, flange back length 11.48 mm
Dimension	74 mm × 74 mm × 64.4 mm (2.9" × 2.9" × 2.5")
Weight	Approx. 560 g (1.2 lb.)
Ingress protection	IP40 ( under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

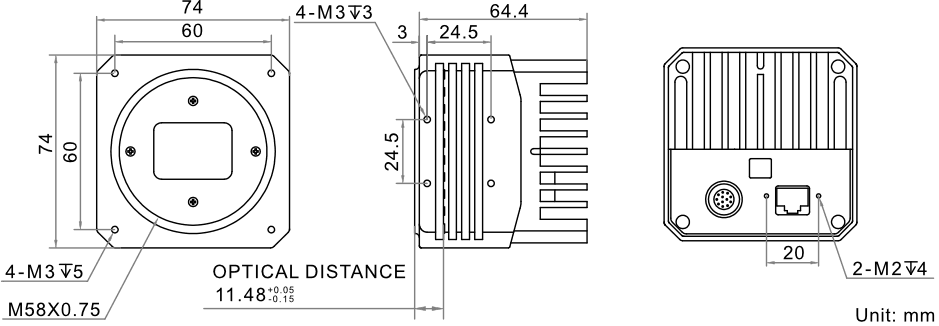

Dimensional drawing

Maßzeichnung HikRobot Flächenkamera MV-CH310-10TM-M58S-NN

Documents

Datasheet HikRobot Flächenkamera MV-CH310-10TM-M58S-NN
Datasheet · EN · 622 KB
Download datasheet
Technical drawing HikRobot Flächenkamera MV-CH310-10TM-M58S-NN
Technical drawing · EN · 822 KB
Download
Software / Firmware V4.0.13 HikRobot Flächenkamera MV-CH310-10TM-M58S-NN
Software / firmware · EN · 6460 KB
Download
Manual HikRobot Flächenkamera MV-CH310-10TM-M58S-NN
Manual · EN · 3625 KB
Download

Accessories

Data cables(31)

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

HIKROBOT

Hochflex 10GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

HIKROBOT

Hochflex 10GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

Standard 10GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Datenkabel

HIKROBOT

Standard 10GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Hochflex 10GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Datenkabel

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 1 m

RJ45 (with locking stud) · 1 m

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 60 m

RJ45 (with locking stud) · 60 m

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

HIKROBOT

Hochflex GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

HIKROBOT

SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

HIKROBOT

Standard 10GigE Datenkabel (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Datenkabel

HIKROBOT

Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

HIKROBOT

Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

HIKROBOT

Standard GigE Datenkabel (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Description

Key Feature - 31 MP resolution, and pixel size of 3.45 µm × 3.45 µm. - Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction. - Adopts design without fan to ensure stability of high-speed image acquisition. - Adopts low power consumption design. - Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
