OPT-IDS2-M010G-L06 Compact fixed-mount code reader with fixed focus
Manufacturer part number: OPT-IDS2-M010G-L06
Series: OPT-IDS2 (S2-Serie)
- Code type
- 1D and 2D
- DPM capable
- Yes
- Resolution
- 1 MP (1280 × 800 px)
- Max. reading speed
- 60 Codes/s
- Focus type
- Fixed focus
- Focal length / optics
- 6.7 mm (M8-Mount)
- Working / focus range
- 100 mm
- Communication
- Ethernet, USB, RS-232
- Industrial protocols
- PROFINET, EtherNet/IP, Modbus, TCP/IP, UDP, FTP
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-IDS2-M010G-L06 |
|---|---|
| Lens focal length | 6.7 mm |
| Sensor type | CMOS, Global Shutter |
| Resolution | 1280 × 800 |
| Pixel size | 3.0 µm×3.0 µm |
| Sensor size | 1/4" |
| Exposure time | 20 µs ~ 1 sec |
| Gain | 1 dB ~ 16 dB |
| Maximum processing frame rate | 60 fps |
| Maximum decoding speed | 60 Lesungen/s |
| Optical interface | M8-Mount |
| Focusing method | Fixed focus |
| Reading distance | standard 100 mm (other distances can be customized) |
| 1D Barcodes | Code 39, Code 128, EAN-8, EAN-13, UPC-A, UPC-E, Code 93, GS1-128, GS1 DataBar Expanded, ITF, Pharmacode, Codabar and more |
| 2D Barcodes | QR Code, Data Matrix, PDF417 and more |
| Communication modes | network version: UDP, TCP, serial, HTTP, Modbus, FTP, PROFINET, EtherNet/IP and more; USB version: emulated network port (UDP, TCP, HTTP, Modbus, FTP and more), emulated serial port (Modbus, serial), virtual keyboard |
| Light source | wahlweise red, white, blue |
| Aiming device | grüne LED |
| Interface type | network version: 17-pin M12 (power, digital I/O, serial, network); USB version: USB 2.0 |
| I/O interface | network version: 2 opto-isolated inputs, 2 opto-isolated outputs; USB version: none |
| Communication interface | network version: 1 × RS-232, 1 × Fast Ethernet (100 Mbit/s); USB version: USB 2.0 |
| Power supply | network version: 24 V DC ± 20 %; USB version: 5 V via USB |
| Power consumption | network version: < 20 W at 24 V DC; USB version: < 10 W |
| Lens cover | Klarer Objektivdeckel, wahlweise polarisierter Objektivdeckel |
| Temperature | Operation 0 °C up to 50 °C; Lagerung −20 °C up to 70 °C |
| Humidity | < 85 % RH (non-condensing) |
| Dimensions | 48.6 mm×46 mm×26 mm |
| Weight | 161 g |
| Protection level | IP62 |
| Certified product | CE, ROHS |
| Versions | IDS2-17pin (M12 network port) / IDS2-USB |
| Interface | Ethernet, USB, RS-232 |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

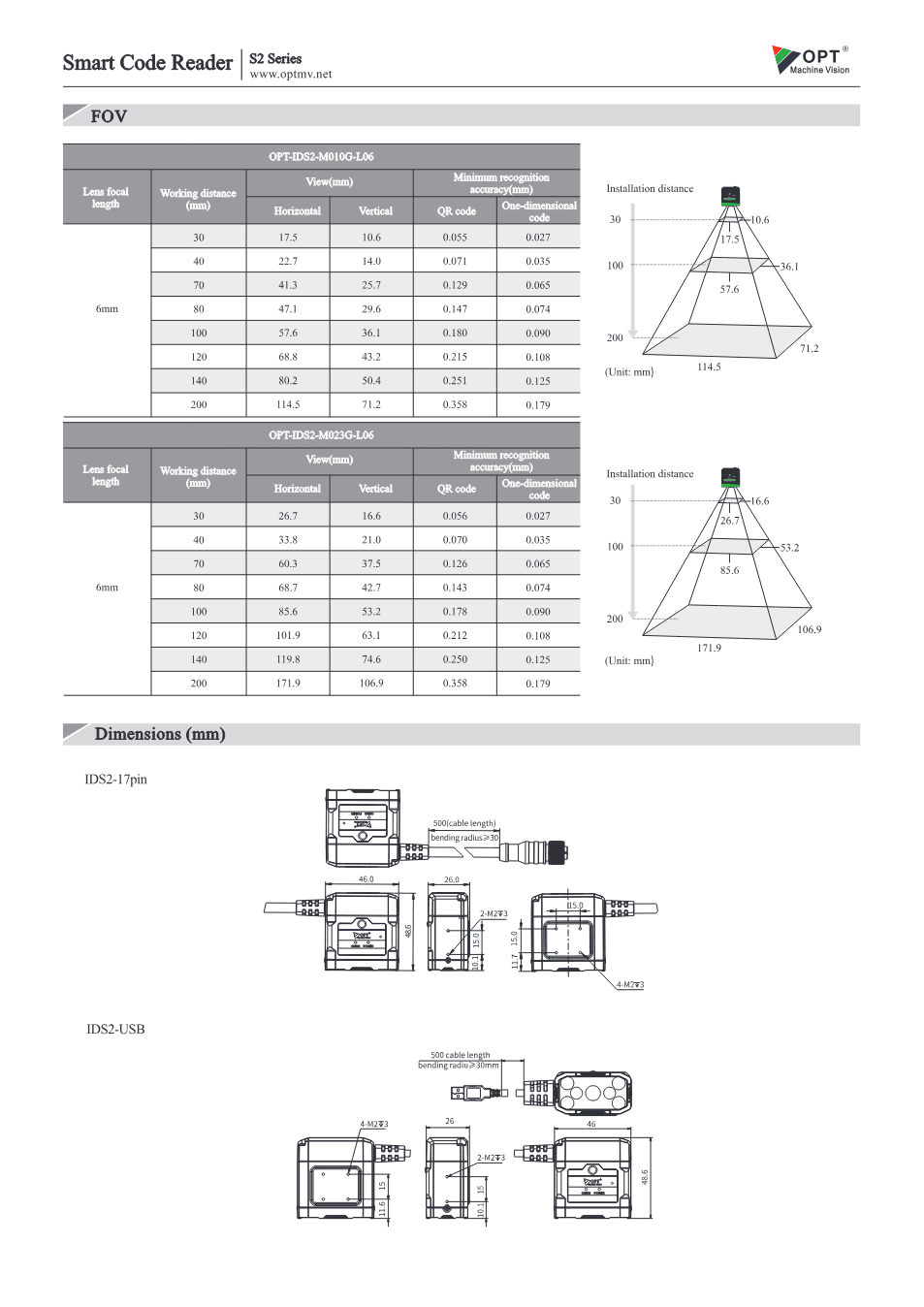

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-IDS2 (S2-Serie) (PDF, EN)
Datasheet · EN · 5156 KB
Description
The S2 series is the faster version of the compact fixed-focus code reader: same housing with 48.6 × 46 × 26 mm and 161 g, up to 60 images and 60 reads per second, USB 2.0 on the U-port version. The decoder with deep learning algorithm reads 1D and 2D codes even with dirt, damage, curvature and low contrast, including DPM.
It is available with a 17-pin M12 network connection (RS232, Fast Ethernet, digital inputs/outputs) or as a USB version with virtual network/serial port and virtual keyboard.
OPT-IDS2-M010G-L06 comes with resolution 1280×800, 60 fps, focal length 6.7 mm, M8 mount. If you tell us your inspection task, reading distance and connection, we check the variant and accessories and quote price and delivery time.
